5.2.5 Configure Outputs
Configure Output 1
Output 2 configuration (and Outputs 3 and 4 if option board fitted
and analog features enabled – see Section 6.2.3) is identical to
Output 1 configuration.
Assign
Select the sensor and analog output required:
Sen.A – Conductivity or concentration for the selected sensor.
Sen.B
Temp.A – Temperature for the selected sensor.
Temp.B
Note. Sen.B and Temp.B are applicable only to dual input analyzers.
Range
Set the analog output current range for the selected output.
Continued on next page.

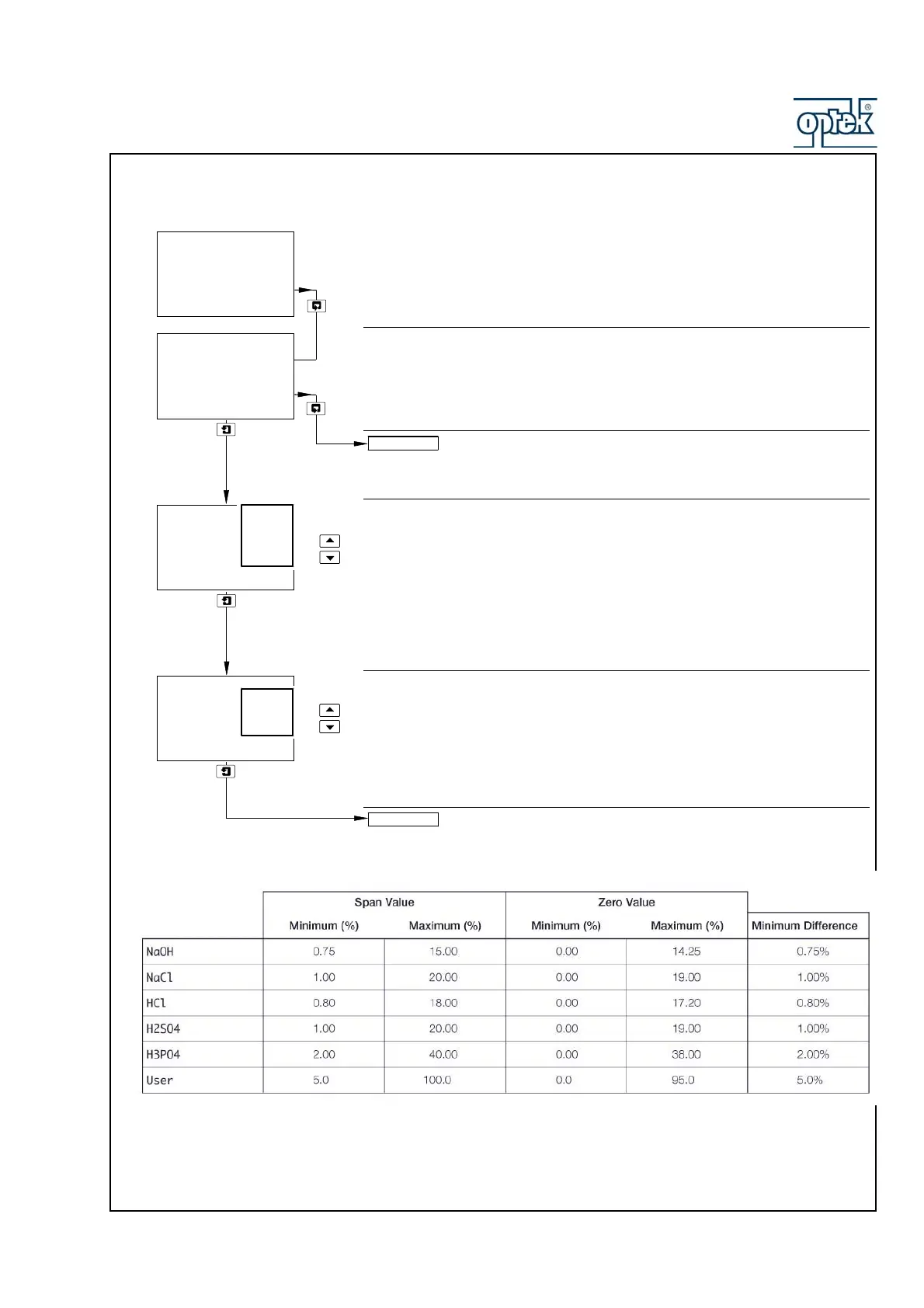

Config. Output 1
-----
AO1: Assign
-----
AO1: Range
-----
CONFIG. OUTPUTS
-----
Tem p.B
Sen.B
Tem p.A
Sen.A
0-20mA
0-10mA
4-20mA
AO1: Span Value
Config. Output 2
