Oracle ZFS Storage Appliance

ZS3-4 Controller Hardware Overview
ZS3-4 Internal Components
The components of the ZS3-4 controller are shown in the following figure and identified in the
legend.

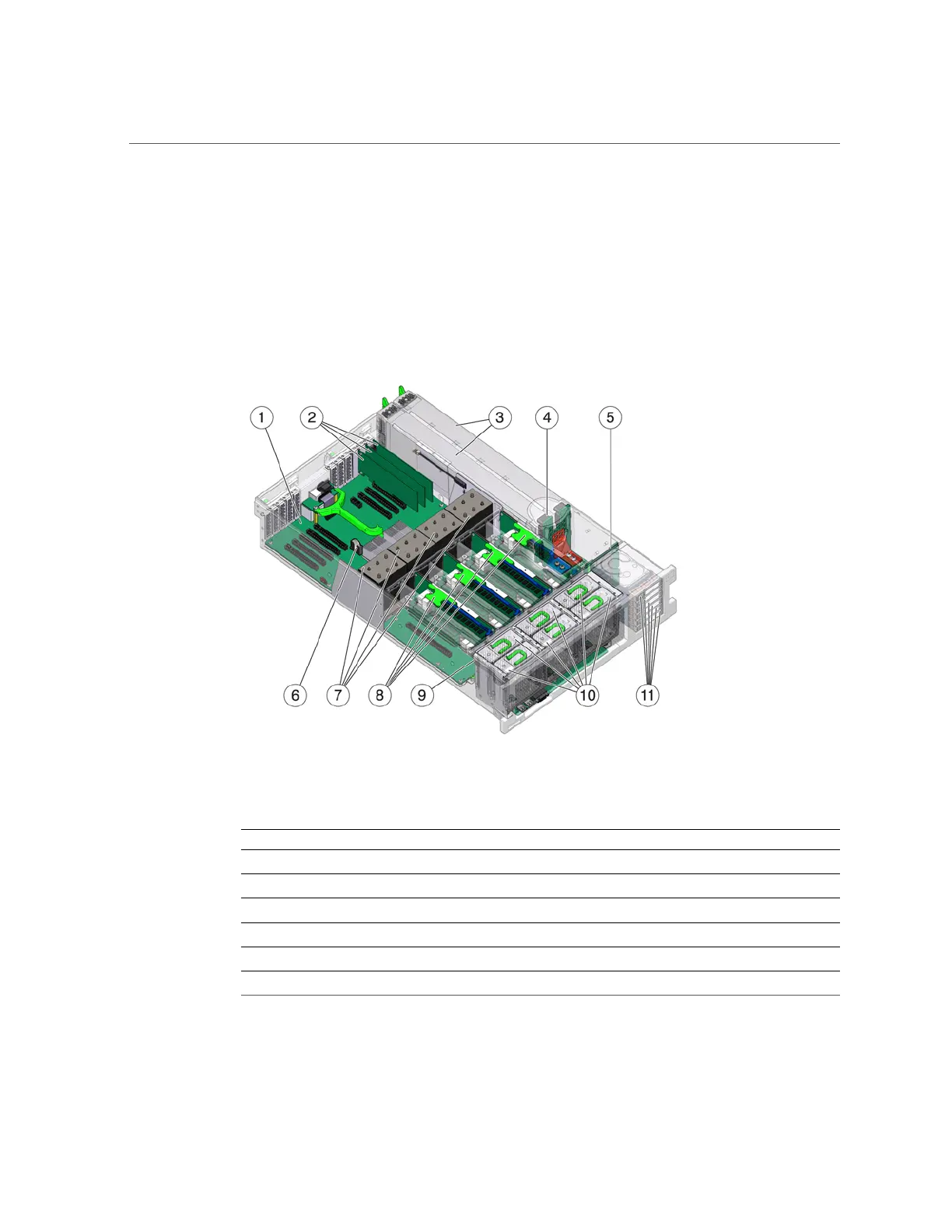

FIGURE 17
ZS3-4 Controller Components
Figure Legend Figure Legend
1 Motherboard 7 CPUs and heatsinks
2 Low-profile PCIe cards 8 Memory risers
3 Power supplies 9 Fan board
4 Power supply backplane 10 Fan modules
5 Drive backplane 11 Boot drives and SSDs
6 System lithium battery
116 Oracle ZFS Storage Appliance Customer Service Manual • July 2016
