7120 Controller Hardware Overview
Slot Type
Sun Part
Number
Vendor Part
Number
Description Note
3 PCIe 375-3665-01 Sun Thebe (INT) Internal SAS
HBA
Base
Configuration
4 PCIe 375-3481-01 Intel
EXPI9404PT
QP Copper NIC Optional
Recommended
Front-end
4 PCIe 371-4325-01 QLogic 8Gb DP FC
HBA
Optional
FC Target
or Initiator
(Backup)
4 PCIe 375-3609-03 Sun Thebe
(EXT)
8P 6Gb/s SAS
HBA
Additional
Optional Back-
end
7120 Connectors
The serial management connector (SER MGT) is an RJ-45 port and provides a terminal
connection to the SP console.

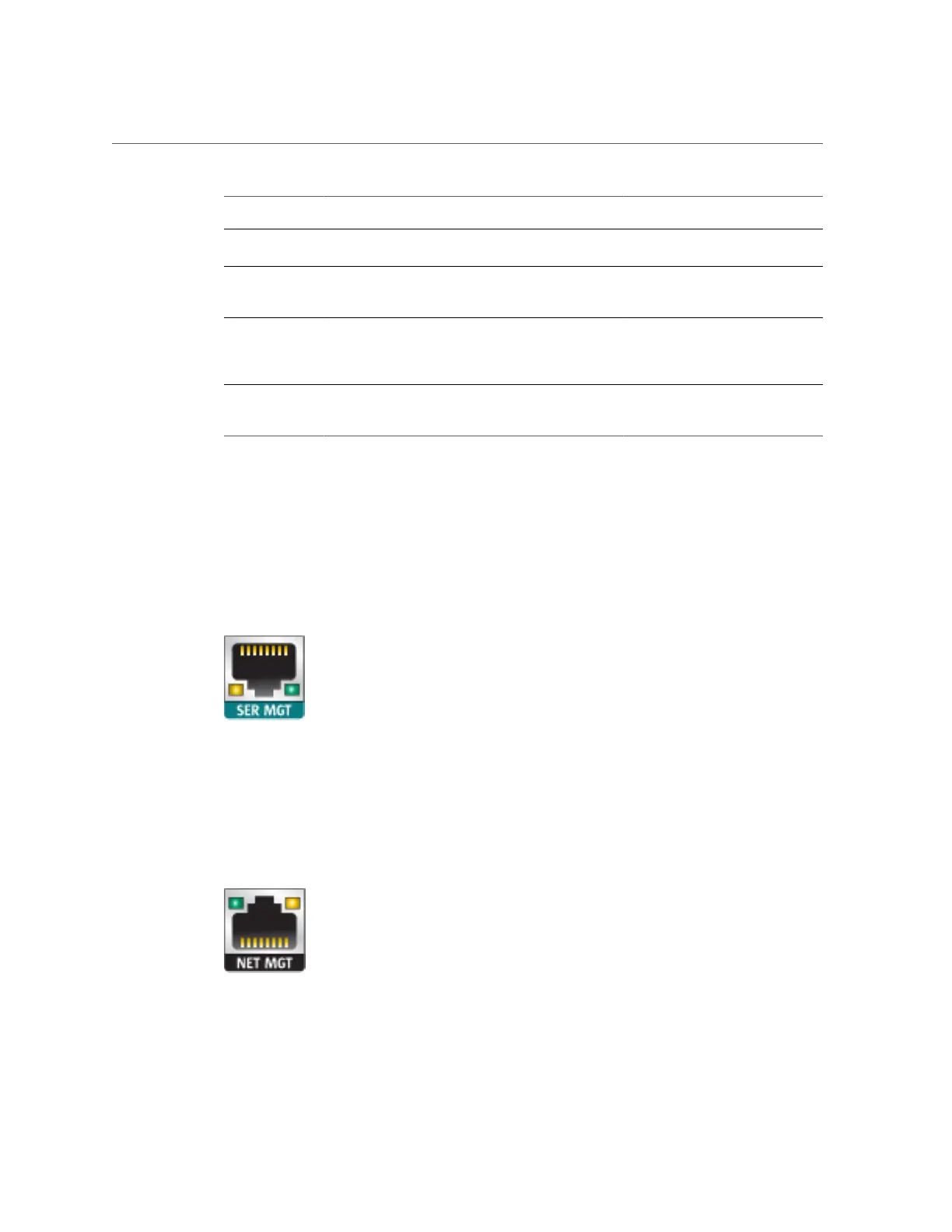

FIGURE 60
7120 Controller Serial Management Port
The network management connector (NET MGT) is an RJ-45 port and provides an alternate
terminal interface to the SP console.
FIGURE 61
7120 Controller Network Management Port
Servicing the 7x20 Controller 251

Oracle ZFS Storage Appliance Specifications

General

Connectivity	10GbE, 40GbE, InfiniBand, Fibre Channel
Protocols	NFS, SMB, iSCSI, Fibre Channel, HTTP
Operating System	Oracle Solaris
Data Protection	snapshots, clones, remote replication
Data Reduction	Inline compression, deduplication
High Availability	Redundant hardware components (controllers, power supplies, fans). Automatic failover between controllers. Hot-swappable drives and components. Cluster configurations for increased availability and scalability.
Management Interface	Web-based GUI, CLI, REST API
Storage Type	Hybrid (SSD + HDD), All-Flash
Storage Capacity	Up to several petabytes
Encryption	AES-256 encryption at rest
