Oracle ZFS Storage Appliance Service Manual

ZS3-4 Controller Hardware Overview

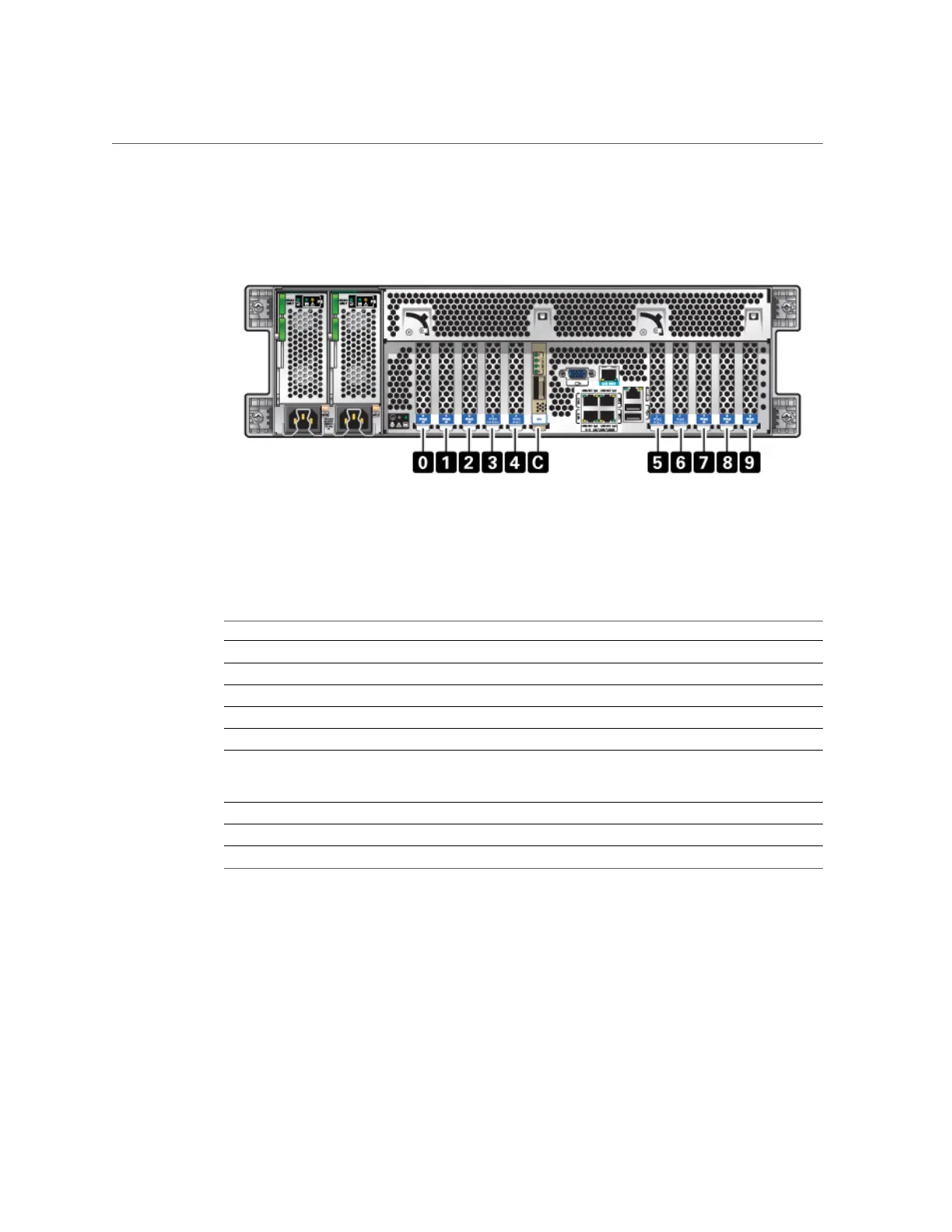

FIGURE 23
ZS3-4 Controller PCIe Cards Slot Order
Install optional PCIe cards in the following order:
TABLE 21
ZS3-4 Controller Optional PCIe Cards and Slot Order
PCIe Card Slot Order
1. 4-port (4x4) SAS-2 external HBA Slot 2, 7
2. 8Gb FC HBA Slot 9
Additional FC HBAs are installed last
3. InfiniBand HCAs Slot 3, 6, 4, 5, 2, 7
4. 2-port 10Gb Ethernet NIC Slot 3, 6, 4, 5, 2, 7, 9
Note: If you are adding a 2-port 10Gb Ethernet Optical
NIC and 2-port 10Gb Ethernet Copper NIC, the 10Gb
Ethernet Optical NIC has slot priority.
5. 4-port 1Gb Ethernet NIC Slot 3, 6, 4, 5, 2, 7, 9
6. 16Gb FC HBA Slot 3, 6, 4, 5, 2, 7, 9
7. Remaining 8Gb FC HBAs Slot 3, 6, 4, 5, 2, 7 (slot 9, see step 2)
ZS3-4 Attached Storage
The ZS3-4 standalone and cluster controller configurations allow up to 36 disk shelves,
consisting of up to six chains of one to six disk shelves. Any combination of disk-only, or disk,
log, and read cache devices can be combined within the chain in any order. You can also attach
Servicing the ZS3-4 Controller 125

Oracle ZFS Storage Appliance Specifications

General

Connectivity	10GbE, 40GbE, InfiniBand, Fibre Channel
Protocols	NFS, SMB, iSCSI, Fibre Channel, HTTP
Operating System	Oracle Solaris
Data Protection	snapshots, clones, remote replication
Data Reduction	Inline compression, deduplication
High Availability	Redundant hardware components (controllers, power supplies, fans). Automatic failover between controllers. Hot-swappable drives and components. Cluster configurations for increased availability and scalability.
Management Interface	Web-based GUI, CLI, REST API
Storage Type	Hybrid (SSD + HDD), All-Flash
Storage Capacity	Up to several petabytes
Encryption	AES-256 encryption at rest
