Oracle ZFS Storage Appliance Service Manual

ZS4-4 Controller Hardware Overview
Legend for Interconnect Types and Options
- Copper RJ-45 Unshielded Twisted
Pair
ZS4-4 Internal Components
The ZS4-4 chassis contains both customer-replaceable units (CRUs) and field-replaceable units
(FRUs) as shown in the following figure. FRUs must be replaced by trained Oracle service
technicians.

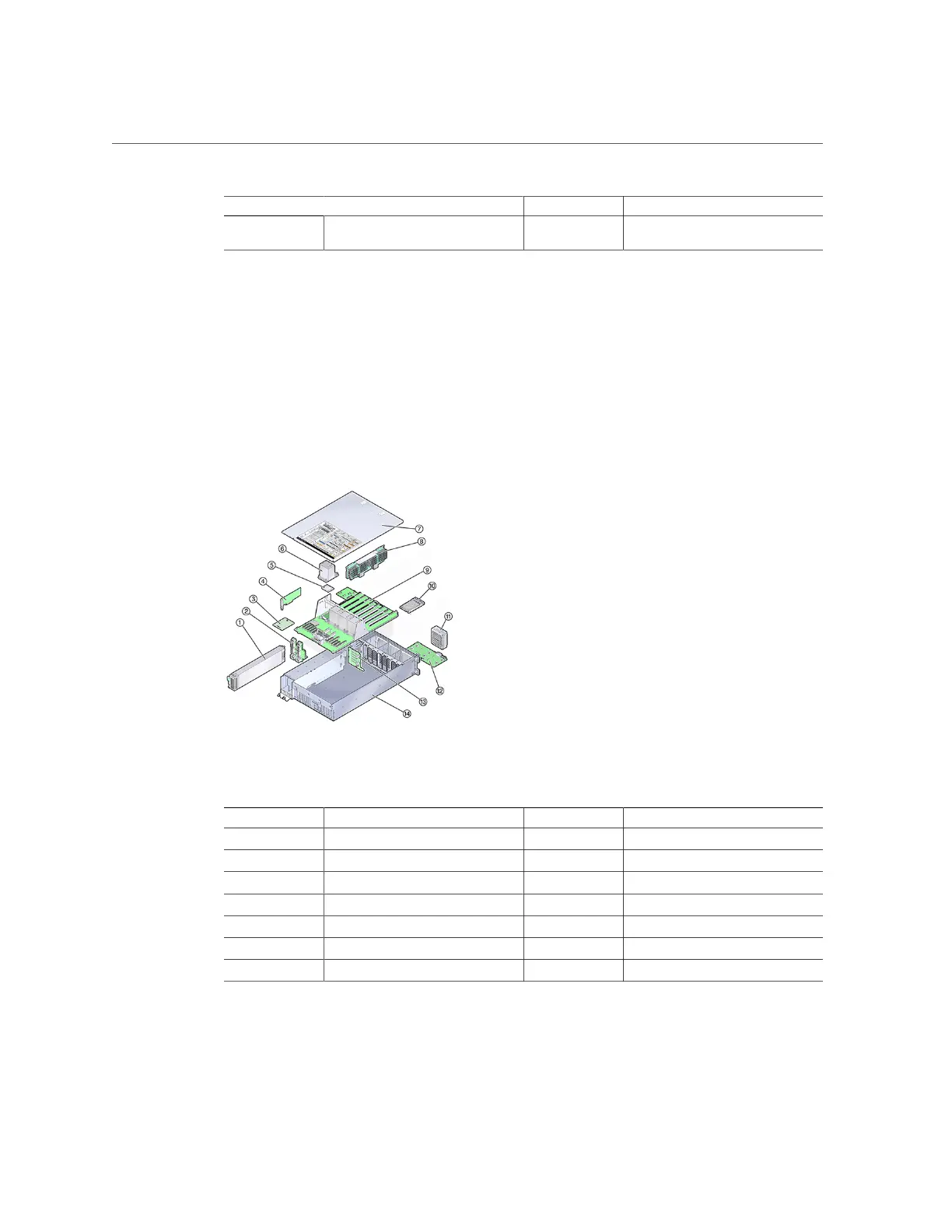

FIGURE 9
Internal Components (Exploded View)
Figure Legend
1 Power supplies (CRU) 8 Memory riser card (CRU)
2 Power supply backplane (FRU) 9 Motherboard (FRU)
3 SP card (FRU) 10 System drive (CRU)
4 HBA/PCIe cards (CRU) 11 Fan module (CRU)
5 CPU (FRU) 12 Fan board (FRU)
6 Heatsink (FRU) 13 Drive backplane (FRU)
7 Cover 14 Chassis
Servicing the ZS4-4 Controller 83

Oracle ZFS Storage Appliance Specifications

General

Connectivity	10GbE, 40GbE, InfiniBand, Fibre Channel
Protocols	NFS, SMB, iSCSI, Fibre Channel, HTTP
Operating System	Oracle Solaris
Data Protection	snapshots, clones, remote replication
Data Reduction	Inline compression, deduplication
High Availability	Redundant hardware components (controllers, power supplies, fans). Automatic failover between controllers. Hot-swappable drives and components. Cluster configurations for increased availability and scalability.
Management Interface	Web-based GUI, CLI, REST API
Storage Type	Hybrid (SSD + HDD), All-Flash
Storage Capacity	Up to several petabytes
Encryption	AES-256 encryption at rest
