Oracle ZFS Storage Appliance Service Manual

ZS3-2 Controller Hardware Overview
ZS3-2 Front and Rear Panel Components
ZS3-2 Front Panel Components - The ZS3-2 controller drive slots and front panel components
are shown in the following figure.

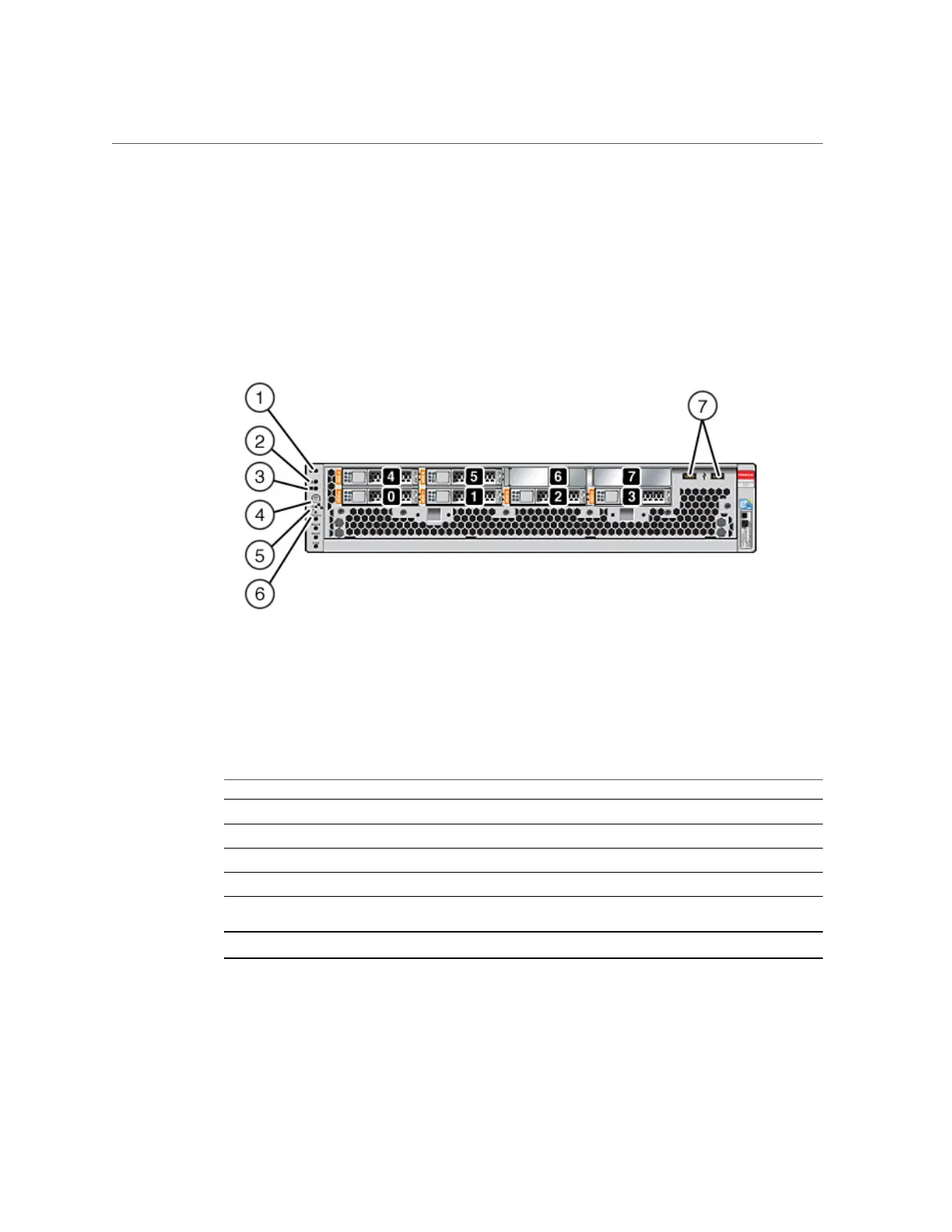

FIGURE 24
ZS3-2 Controller Front Panel
Drive slots 0 and 1 have two mirrored boot drives. Up to four read-optimized cache solid state
drives (SSDs) fill slots 2 through 5, in order. Slots 6 and 7 are empty and must contain drive
fillers.
Figure Legend
1 Locator LED/button (white) 5 Service Processor OK LED (green)
2 Service Action Required LED (amber) 6 Fan/CPU/Memory Service Required LED
3 Power OK LED (green) 7 USB 2.0 ports
4 Power button
Note - The LEDs below the Fan/CPU/Memory Service Required LED are not currently used.
ZS3-2 Rear Panel Components - The ZS3-2 controller PCIe slots and rear panel components
are shown in the following figure.
Servicing the ZS3-2 Controller 157

Oracle ZFS Storage Appliance Specifications

General

Connectivity	10GbE, 40GbE, InfiniBand, Fibre Channel
Protocols	NFS, SMB, iSCSI, Fibre Channel, HTTP
Operating System	Oracle Solaris
Data Protection	snapshots, clones, remote replication
Data Reduction	Inline compression, deduplication
High Availability	Redundant hardware components (controllers, power supplies, fans). Automatic failover between controllers. Hot-swappable drives and components. Cluster configurations for increased availability and scalability.
Management Interface	Web-based GUI, CLI, REST API
Storage Type	Hybrid (SSD + HDD), All-Flash
Storage Capacity	Up to several petabytes
Encryption	AES-256 encryption at rest
