ZS3-2 Controller Hardware Overview

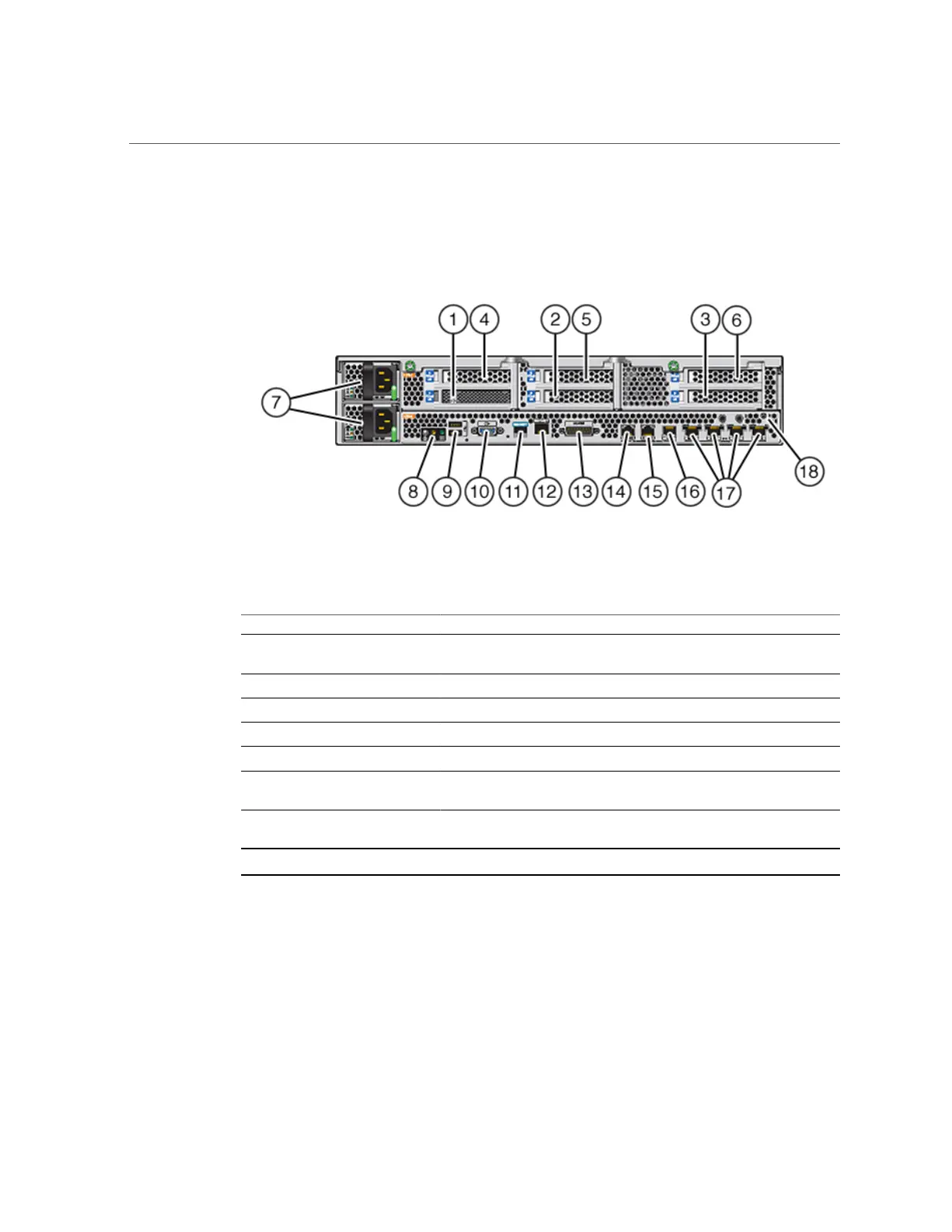

FIGURE 25
ZS3-2 Controller Rear Panel
Figure Legend
1 SAS-2 HBA (slot 1) 7 AC power supplies PS1 (top), PS0
(bottom)
13 Alarm port, DB-15 connector (not
used for the ZS3-2)
2 4x4 SAS-2 6Gb/s HBA (slot 2) 8 System status LEDs 14-16 Cluster I/O ports
3 PCIe slot 3 9 USB 2.0 ports 17 10-Gbit Ethernet ports
4 PCIe slot 4 10 SP 15-pin VGA video port 18 Chassis ground post
5 PCIe slot 5 11 Serial management port
6 PCIe slot 6 12 Network management (NET
MGT) 10/100 BASE-T Ethernet port
Note - The three Cluster I/O ports (0, 1, and GigE) are reserved for cluster interconnection only.
Cluster Interface Compatibility - The ZS3-2 controller contains embedded support for
Version 2 clustering ports. It does not have a cluster interface card nor can one be installed in a
PCIe slot.
158 Oracle ZFS Storage Appliance Customer Service Manual • July 2016

Oracle ZFS Storage Appliance Specifications

General

Connectivity	10GbE, 40GbE, InfiniBand, Fibre Channel
Protocols	NFS, SMB, iSCSI, Fibre Channel, HTTP
Operating System	Oracle Solaris
Data Protection	snapshots, clones, remote replication
Data Reduction	Inline compression, deduplication
High Availability	Redundant hardware components (controllers, power supplies, fans). Automatic failover between controllers. Hot-swappable drives and components. Cluster configurations for increased availability and scalability.
Management Interface	Web-based GUI, CLI, REST API
Storage Type	Hybrid (SSD + HDD), All-Flash
Storage Capacity	Up to several petabytes
Encryption	AES-256 encryption at rest
