7420 Controller Hardware Overview

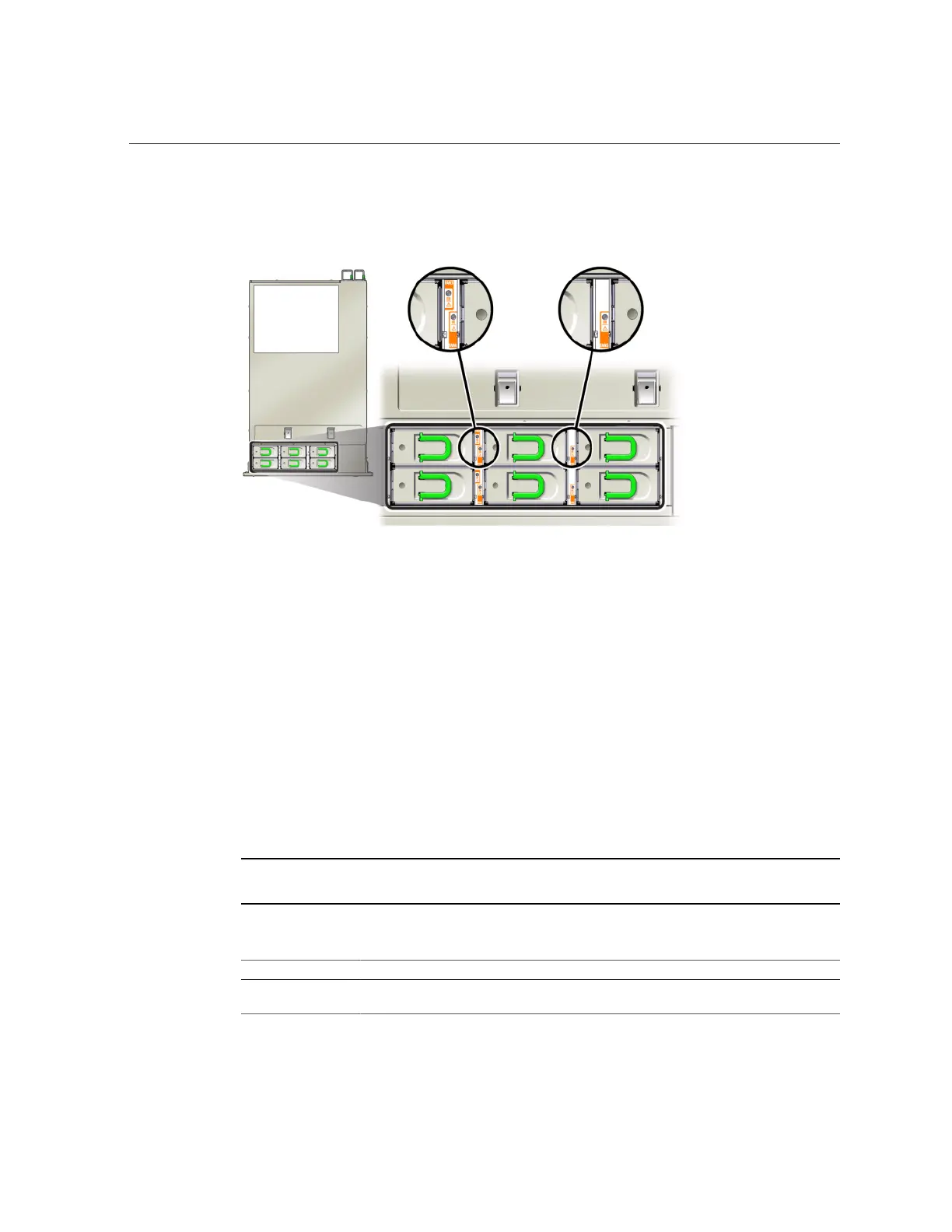

FIGURE 44
7420 Controller Fan Module LEDs
Front and rear Service Action Required LEDs
Fan Module Service Action Required (TOP) LED on the front of the server
Fan Fault LED on or adjacent to the faulty fan module
The system Overtemp LED might light if a fan fault causes an increase in system operating
temperature.
7420 PCIe I/O Cards
7420 PCIe I/O Options - The 7420 controller has ten PCIe slots. This table describes base and
optional PCIe card slots for standalone and cluster configurations.
Note - The 7420 M2 reserves slot 0 for a SAS-2 internal HBA, and slots 1 and 8 for two SAS-2
external HBAs.
TABLE 31
7420 Controller PCIe Options
Slot Mfg Part Number Description Max Note
0 7054001 8-port 6Gb/s SAS-2
internal HBA
1 Slot 0 of the 7420
M2 is reserved for
224 Oracle ZFS Storage Appliance Customer Service Manual • July 2016
