Removing the Top Cover
3.

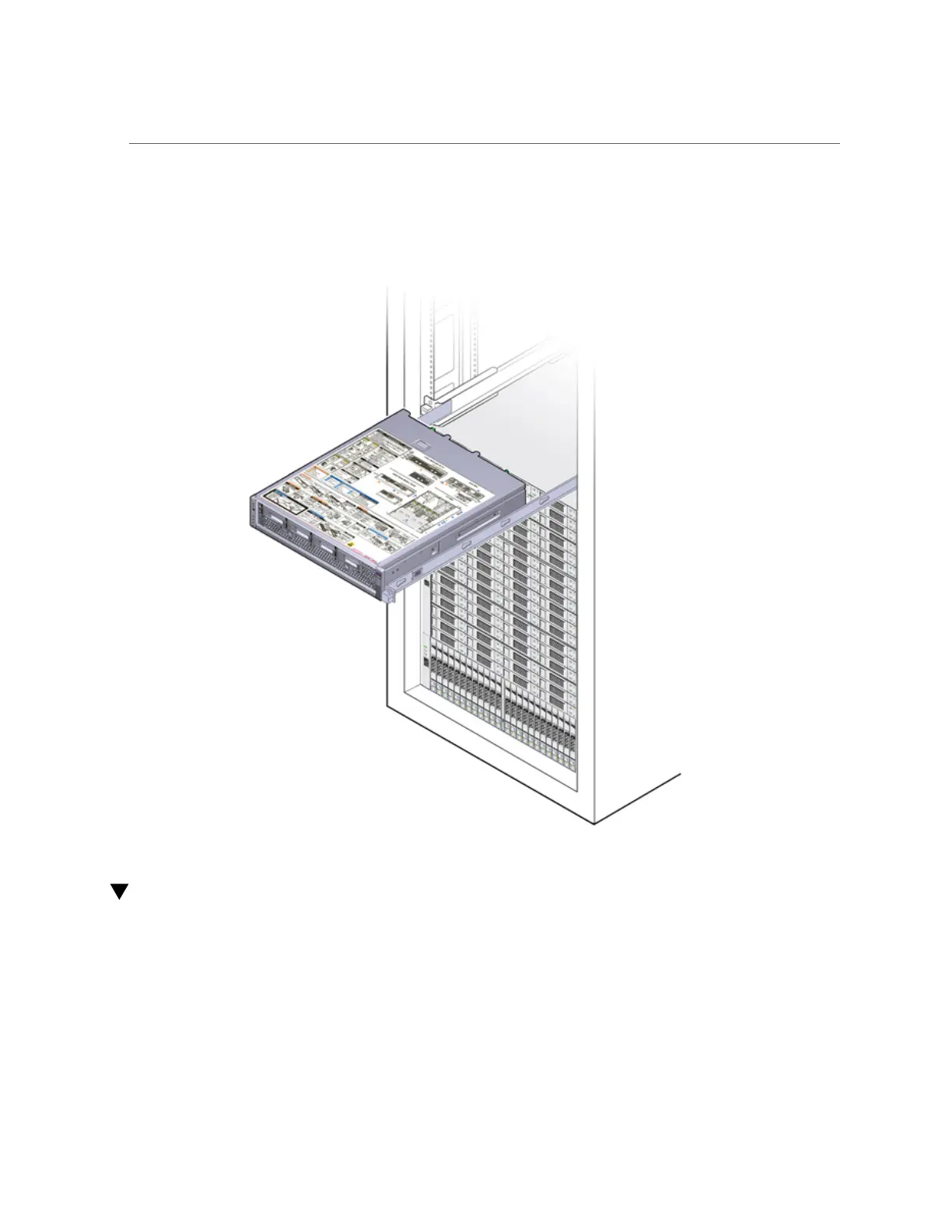

While squeezing the slide release latches, slowly pull the storage controller
forward until the slide rails latch.
Removing the Top Cover
To access internal controller components for servicing, remove the top cover. Use the following
procedure to remove the top cover.
1.
Fully loosen the two captive screws at the rear of the top cover (1).
52 Oracle ZFS Storage Appliance Customer Service Manual • July 2016
