Oracle ZFS Storage Appliance Service Manual

ZS4-4 Controller Hardware Overview
Refer to the Oracle ZFS Storage ZS4-4 data sheet at http://www.oracle.com/goto/zs4-4
for the most recent component specification and physical, electrical, and environmental
specifications.
For information about supported disks and capacities, refer to the Oracle Systems Handbook.
ZS4-4 Front and Rear Panel Components
Front Panel Components - The ZS4-4 controller drive slots and front panel components are
shown in the following figure.

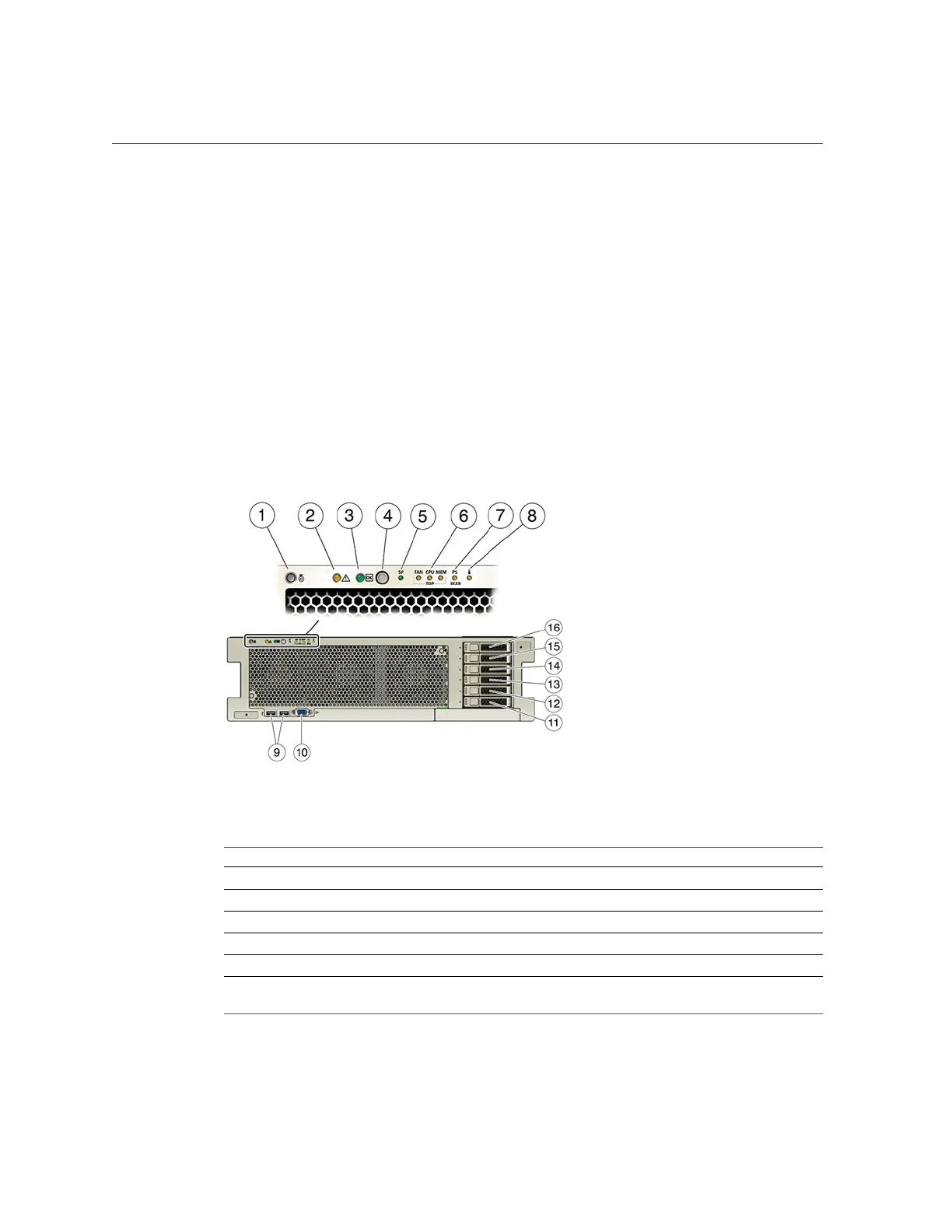

FIGURE 2
ZS4-4 Controller Front Panel
Figure Legend Figure Legend
1 Locator LED/button (white) 9 USB 2.0 connectors (2)
2 Service action required LED (amber) 10 DB-15 video port
3 Power/OK LED (green) 11 Boot drive 0 (required)
4 Power button 12 Boot drive 1 (required)
5 Service Processor (SP) OK (green)/Fault (amber) LED 13 Solid state drive 2 (optional)
6 Fan/CPU/Memory Service action required LED
(amber)
14 Solid state drive 3 (optional)
Servicing the ZS4-4 Controller 75

Oracle ZFS Storage Appliance Specifications

General

Connectivity	10GbE, 40GbE, InfiniBand, Fibre Channel
Protocols	NFS, SMB, iSCSI, Fibre Channel, HTTP
Operating System	Oracle Solaris
Data Protection	snapshots, clones, remote replication
Data Reduction	Inline compression, deduplication
High Availability	Redundant hardware components (controllers, power supplies, fans). Automatic failover between controllers. Hot-swappable drives and components. Cluster configurations for increased availability and scalability.
Management Interface	Web-based GUI, CLI, REST API
Storage Type	Hybrid (SSD + HDD), All-Flash
Storage Capacity	Up to several petabytes
Encryption	AES-256 encryption at rest
