Oracle ZFS Storage Appliance Service Manual

ZS4-4 Controller Hardware Overview
Figure Legend Figure Legend
7 Power Supply (PS) Service action required LED
(amber)
15 Solid state drive 4 (optional)
8 Over temperature warning LED (amber) 16 Solid state drive 5 (optional)
Rear Panel Components - The ZS4-4 rear panel is shown in the following figure. Base
configuration PCIe cards are not depicted in this illustration.

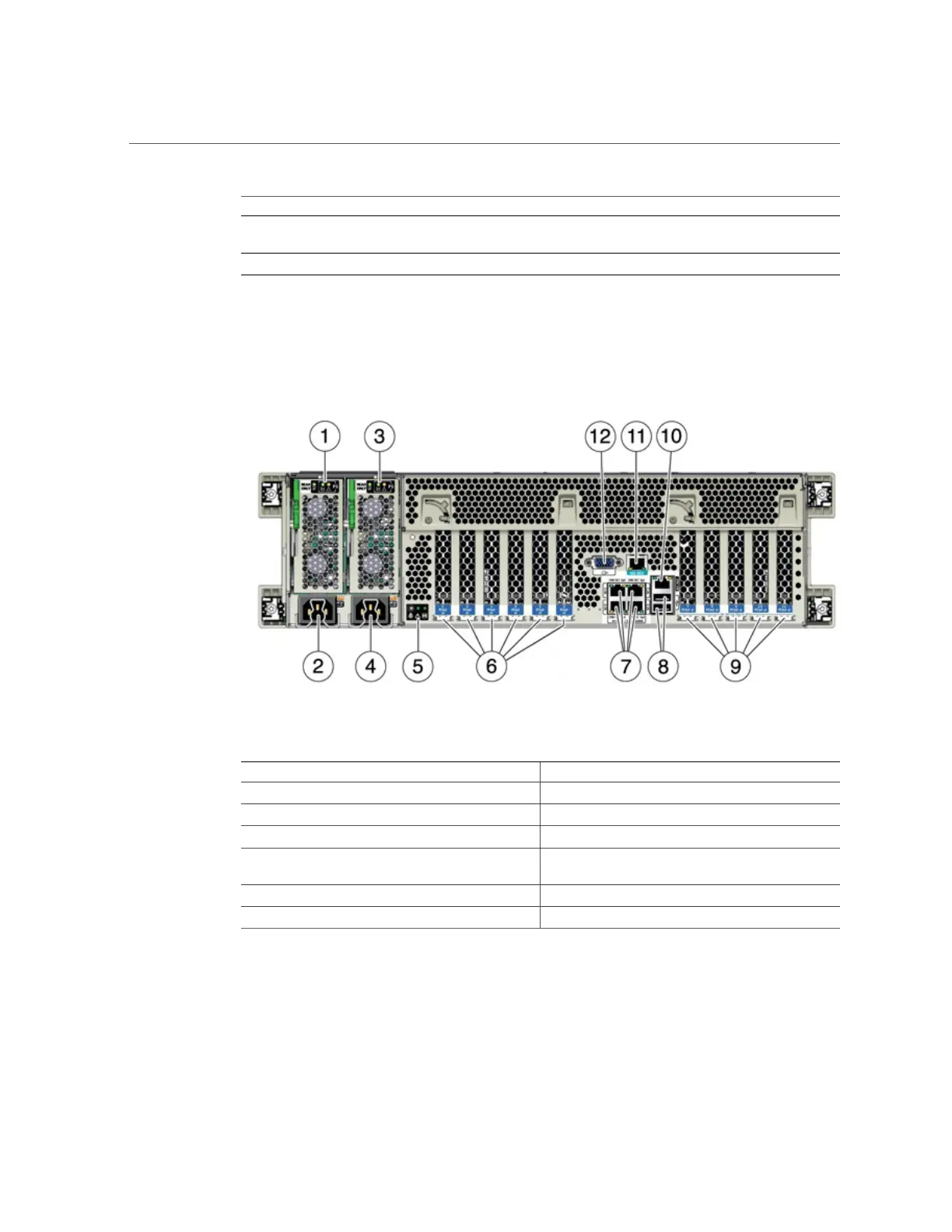

FIGURE 3
ZS4-4 Controller Rear Panel
Figure Legend Figure Legend
1 Power supply unit (PSU) 0 indicator panel 7 Network (NET) 10 GbE ports: NET0NET3
2 PSU 0 AC inlet 8 USB 2.0 connectors (2)
3 PSU 1 indicator panel 9 PCIe card slots 7-11
4 PSU 1 AC inlet 10 Network management (NET MGT) 10/100/1000
BASE-T Ethernet port
5 System status indicator panel 11 Serial management (SER MGT) RJ-45 port
6 PCIe card slots 1-6 12 DB-15 video port
Cluster Interface Card Compatibility - The ZS4-4 controller can contain a Version 2 or
Version 3 cluster interface card. For clustered controllers, ensure you are using the same version
in each controller because these two versions are not compatible.
76 Oracle ZFS Storage Appliance Customer Service Manual • July 2016

Oracle ZFS Storage Appliance Specifications

General

Connectivity	10GbE, 40GbE, InfiniBand, Fibre Channel
Protocols	NFS, SMB, iSCSI, Fibre Channel, HTTP
Operating System	Oracle Solaris
Data Protection	snapshots, clones, remote replication
Data Reduction	Inline compression, deduplication
High Availability	Redundant hardware components (controllers, power supplies, fans). Automatic failover between controllers. Hot-swappable drives and components. Cluster configurations for increased availability and scalability.
Management Interface	Web-based GUI, CLI, REST API
Storage Type	Hybrid (SSD + HDD), All-Flash
Storage Capacity	Up to several petabytes
Encryption	AES-256 encryption at rest
