Oracle ZFS Storage Appliance Service Manual

ZS4-4 Controller Hardware Overview
For information about how to connect cables to form a cluster, see “Connecting Cluster Cables”
in Oracle ZFS Storage Appliance Cabling Guide.
Ethernet Ports
The ZS4-4 has four RJ-45 10-Gigabit Ethernet (10GbE) network connectors on the rear panel,
labeled NET 0, NET 1, NET 2, and NET 3 (bottom left to top right), as shown in the figure
below. Use these ports to connect the appliance to the network.
The LEDs located above the NET ports, labeled 2, 0, 3, 1 (left to right) are Link/Activity
indicators.
LED Status
OFF (1) No Link
ON (0) Link and no activity
Blink Link and activity
Note - Speed is not indicated for the NET ports.

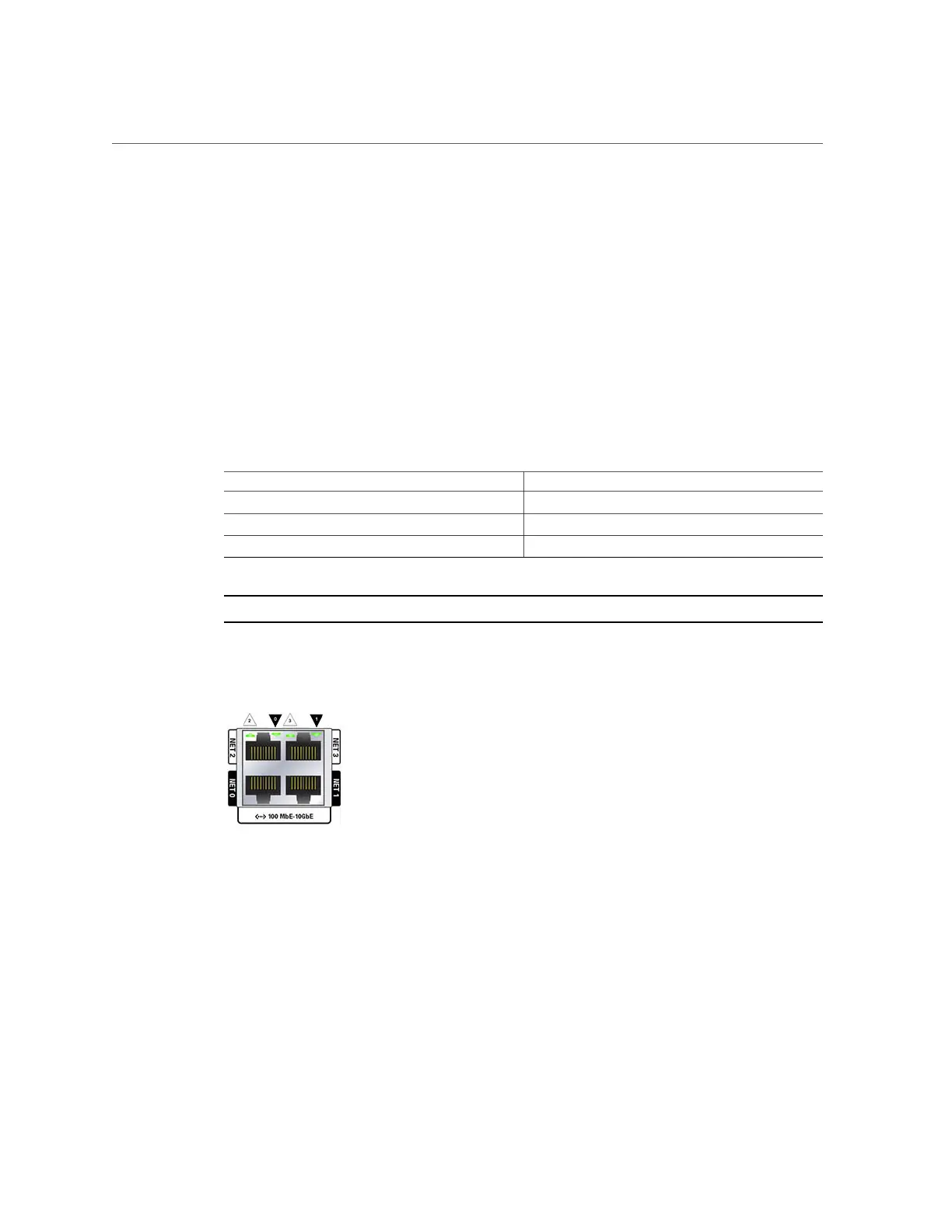

FIGURE 4
ZS4-4 Ethernet Ports
Network Management Port
The network management connector (NET MGT), shown in the figure below, is an RJ-45
10/100/1000 BASE-T Ethernet port and provides an alternate terminal interface to the service
processor (SP) console.
Servicing the ZS4-4 Controller 77

Oracle ZFS Storage Appliance Specifications

General

Connectivity	10GbE, 40GbE, InfiniBand, Fibre Channel
Protocols	NFS, SMB, iSCSI, Fibre Channel, HTTP
Operating System	Oracle Solaris
Data Protection	snapshots, clones, remote replication
Data Reduction	Inline compression, deduplication
High Availability	Redundant hardware components (controllers, power supplies, fans). Automatic failover between controllers. Hot-swappable drives and components. Cluster configurations for increased availability and scalability.
Management Interface	Web-based GUI, CLI, REST API
Storage Type	Hybrid (SSD + HDD), All-Flash
Storage Capacity	Up to several petabytes
Encryption	AES-256 encryption at rest
