Oracle ZFS Storage Appliance Service Manual

7120 Controller Hardware Overview

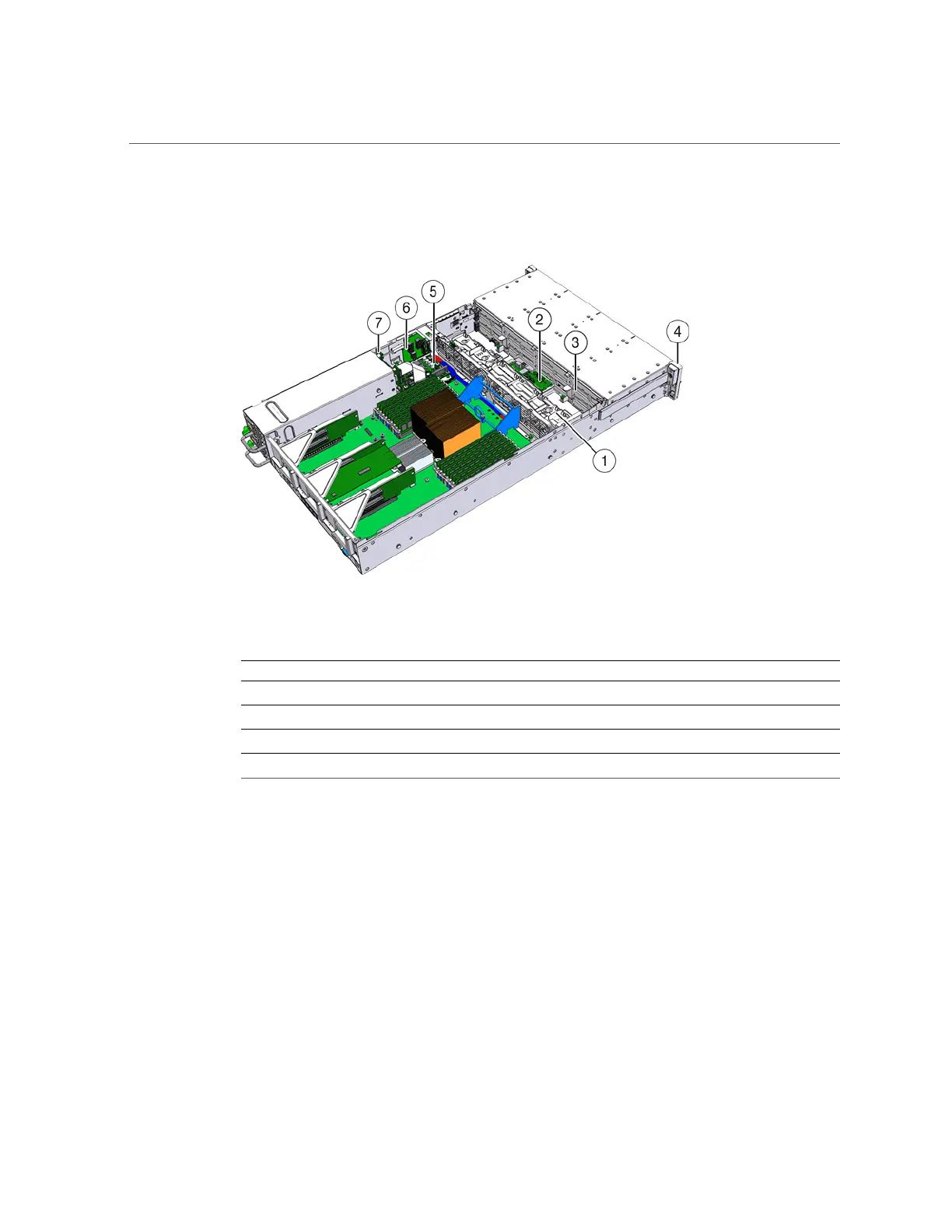

FIGURE 58
7120 Controller Power Distribution Board and Associated Components
Figure Legend
1 Fan Board 5 Power Distribution Board
2 SAS Expander Board 6 Connector Board
3 Disk Backplane 7 Power Supply Backplane
4 Front Control Panel Light Pipe Assembly
7120 I/O Components
The following figure and legend show the I/O components of the 7120 system.
248 Oracle ZFS Storage Appliance Customer Service Manual • July 2016

Oracle ZFS Storage Appliance Specifications

General

Connectivity	10GbE, 40GbE, InfiniBand, Fibre Channel
Protocols	NFS, SMB, iSCSI, Fibre Channel, HTTP
Operating System	Oracle Solaris
Data Protection	snapshots, clones, remote replication
Data Reduction	Inline compression, deduplication
High Availability	Redundant hardware components (controllers, power supplies, fans). Automatic failover between controllers. Hot-swappable drives and components. Cluster configurations for increased availability and scalability.
Management Interface	Web-based GUI, CLI, REST API
Storage Type	Hybrid (SSD + HDD), All-Flash
Storage Capacity	Up to several petabytes
Encryption	AES-256 encryption at rest
