Oracle ZFS Storage Appliance Service Manual

ZS3-2 Controller Hardware Overview

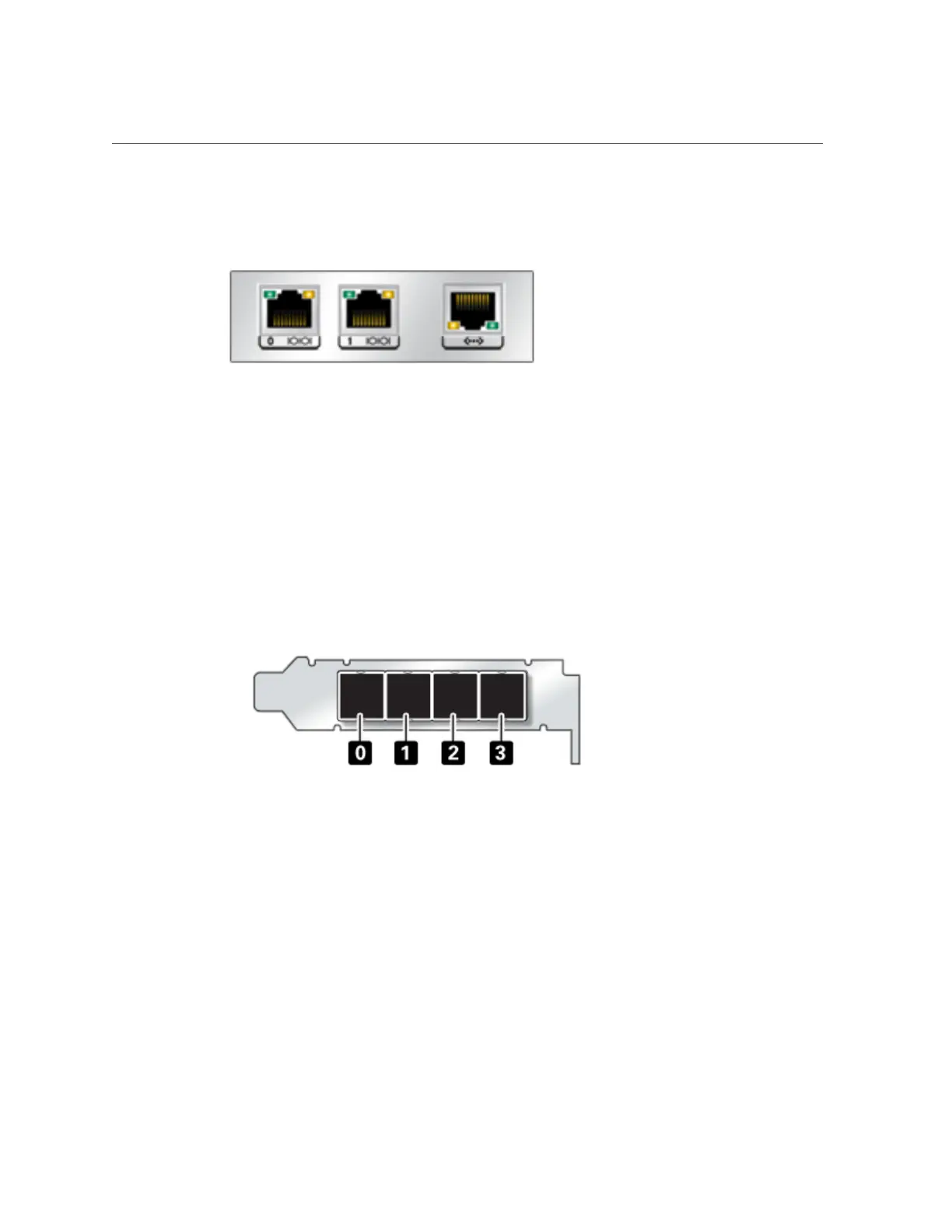

FIGURE 29
ZS3-2 Controller Cluster I/O Ports: Serial 0, Serial 1, Ethernet
4x4 SAS-2 HBA
The 4x4 SAS-2 HBA, installed in PCIe slot 2 of the ZS3-2, provides connectivity to external
DE2 and Sun Disk Shelves. The HBA ports are numbered 0-3, left to right, as shown in the
following figure.
FIGURE 30
ZS3-2 Controller 4x4 SAS-2 HBA Port Numbers
For controllers with an additional 4x4 SAS-2 HBA, see “ZS3-2 PCIe I/O
Cards” on page 169 for slot placement.
ZS3-2 Specifications
ZS3-2 Physical Specifications - The ZS3-2 controller 2U chassis dimensions are as follows:
Servicing the ZS3-2 Controller 161

Oracle ZFS Storage Appliance Specifications

General

Connectivity	10GbE, 40GbE, InfiniBand, Fibre Channel
Protocols	NFS, SMB, iSCSI, Fibre Channel, HTTP
Operating System	Oracle Solaris
Data Protection	snapshots, clones, remote replication
Data Reduction	Inline compression, deduplication
High Availability	Redundant hardware components (controllers, power supplies, fans). Automatic failover between controllers. Hot-swappable drives and components. Cluster configurations for increased availability and scalability.
Management Interface	Web-based GUI, CLI, REST API
Storage Type	Hybrid (SSD + HDD), All-Flash
Storage Capacity	Up to several petabytes
Encryption	AES-256 encryption at rest
