Oracle ZFS Storage Appliance Service Manual

Replacing a ZS3-4 Fan Module
6.

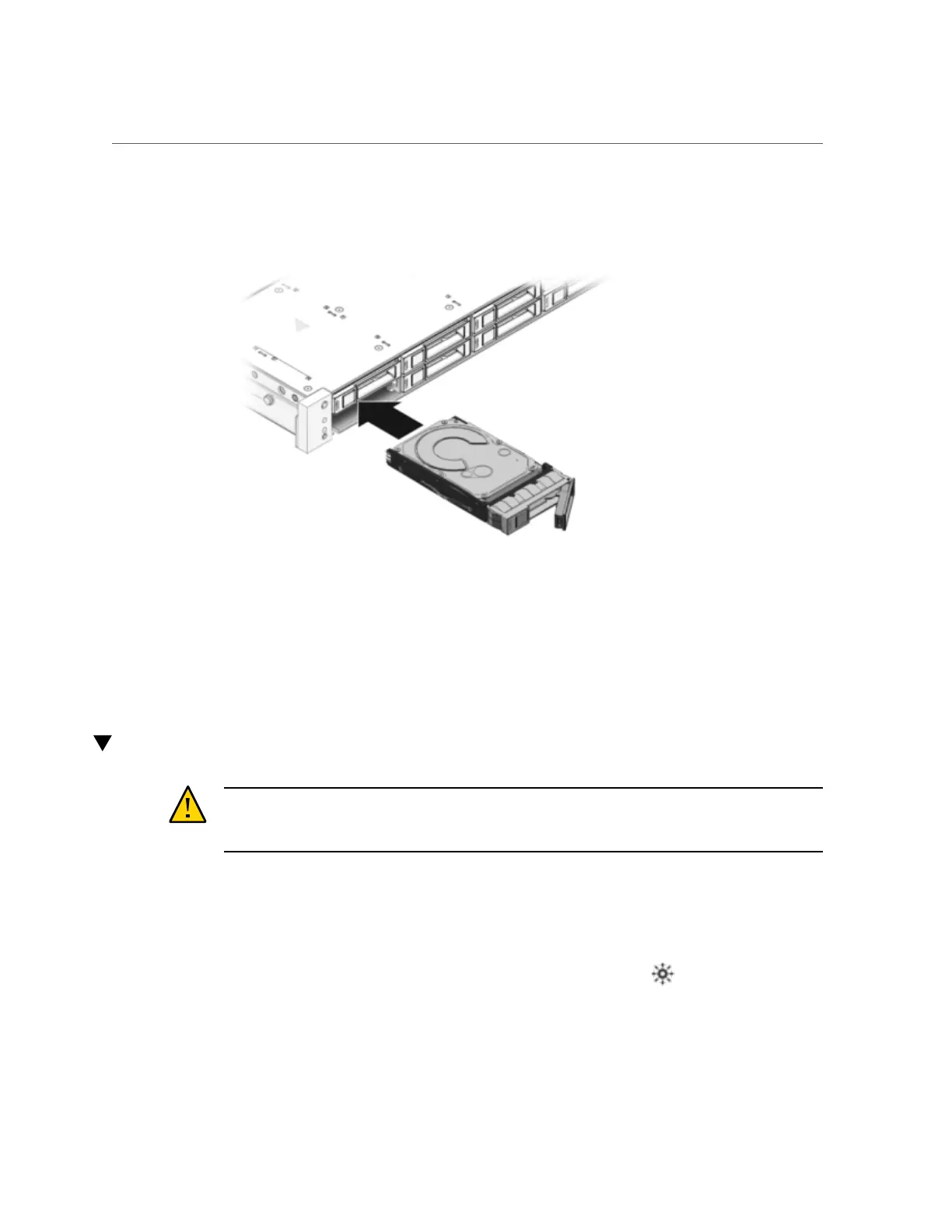

Slide the replacement drive into the slot until it is fully seated.
7.
Close the latch to lock the drive in place.
8.
The Oracle ZFS Storage system software automatically detects and configures
the new drive. The device appears in the BUI Maintenance > Hardware screen
when you view details for the controller or drive shelf.
9.
If a fault does not self-clear, see “Repairing Active Problems” on page 37.
Replacing a ZS3-4 Fan Module
Caution - Operating a controller for an extended period of time with fans removed reduces the
effectiveness of the cooling system. For this reason, the replacement fan should be unpacked in
advance and ready to insert into the controller chassis as soon as the faulted fan is removed.
Fan modules are hot-swappable and can be removed and installed while the storage controller is
running without affecting other hardware capabilities. Use the following procedure to replace a
ZS3-4 fan module.
1.
To flash the locator LED on the chassis to service, go to Maintenance >
Hardware in the BUI and click the associated locator icon , or go to the
service processor (SP) prompt and enter set /SYS/LOCATE status=on
Servicing the ZS3-4 Controller 91
