Oracle ZFS Storage Appliance

ZS3-2 Controller Hardware Overview
Figure Legend
4 LED board (FRU) 8 PDB signal cable (FRU) 12 Power supplies
ZS3-2 Internal Cables - The ZS3-2 controller contains the following field-replaceable unit
(FRU) internal cables. FRUs are not customer-serviceable, and must be replaced by trained
Oracle service technicians.

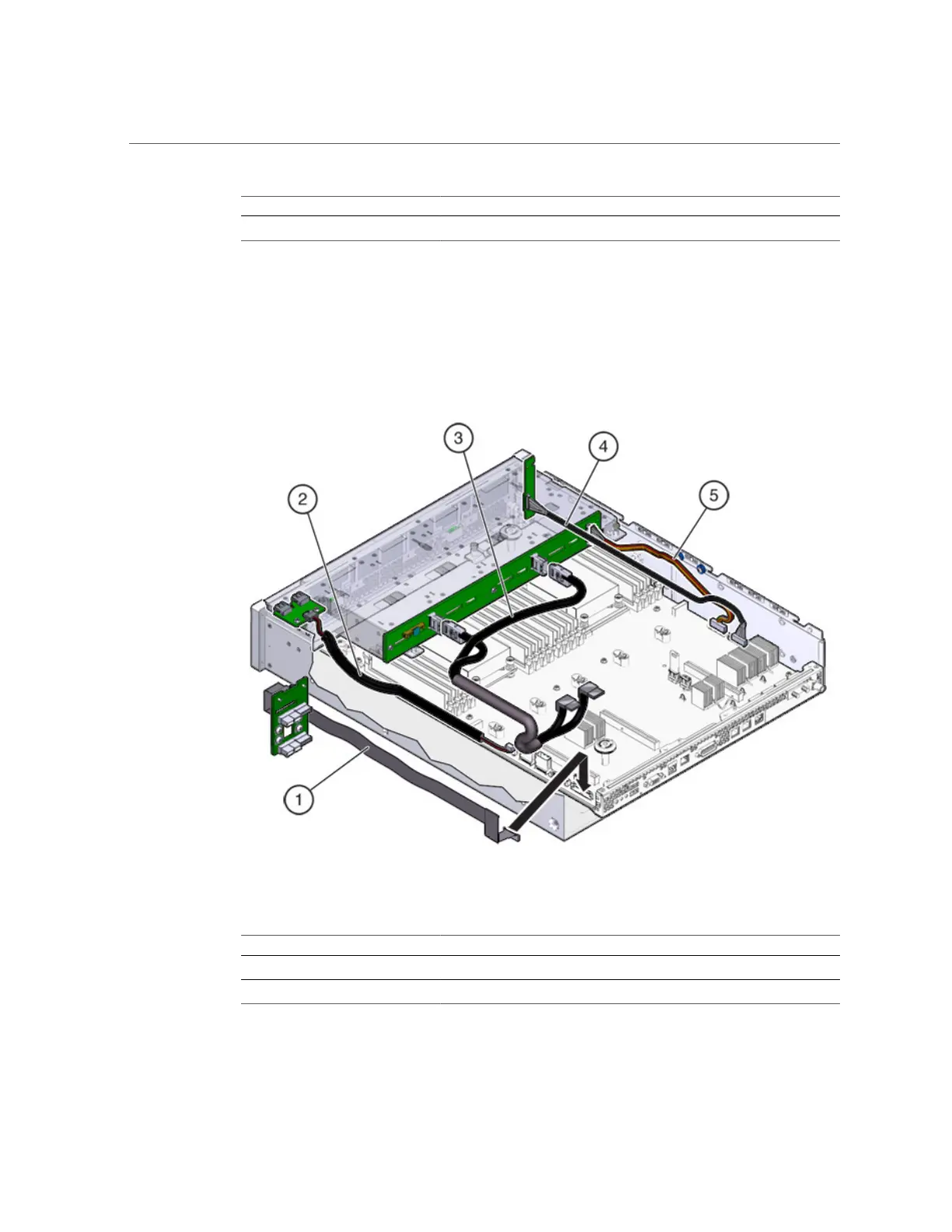

FIGURE 34
ZS3-2 Controller Internal Cables
Figure Legend
1 PDB signal cable 3 Drive signal cable 5 Drive power cable
2 USB board cable 4 LED board cable
168 Oracle ZFS Storage Appliance Customer Service Manual • July 2016
