Replacing a 7x20 Power Supply

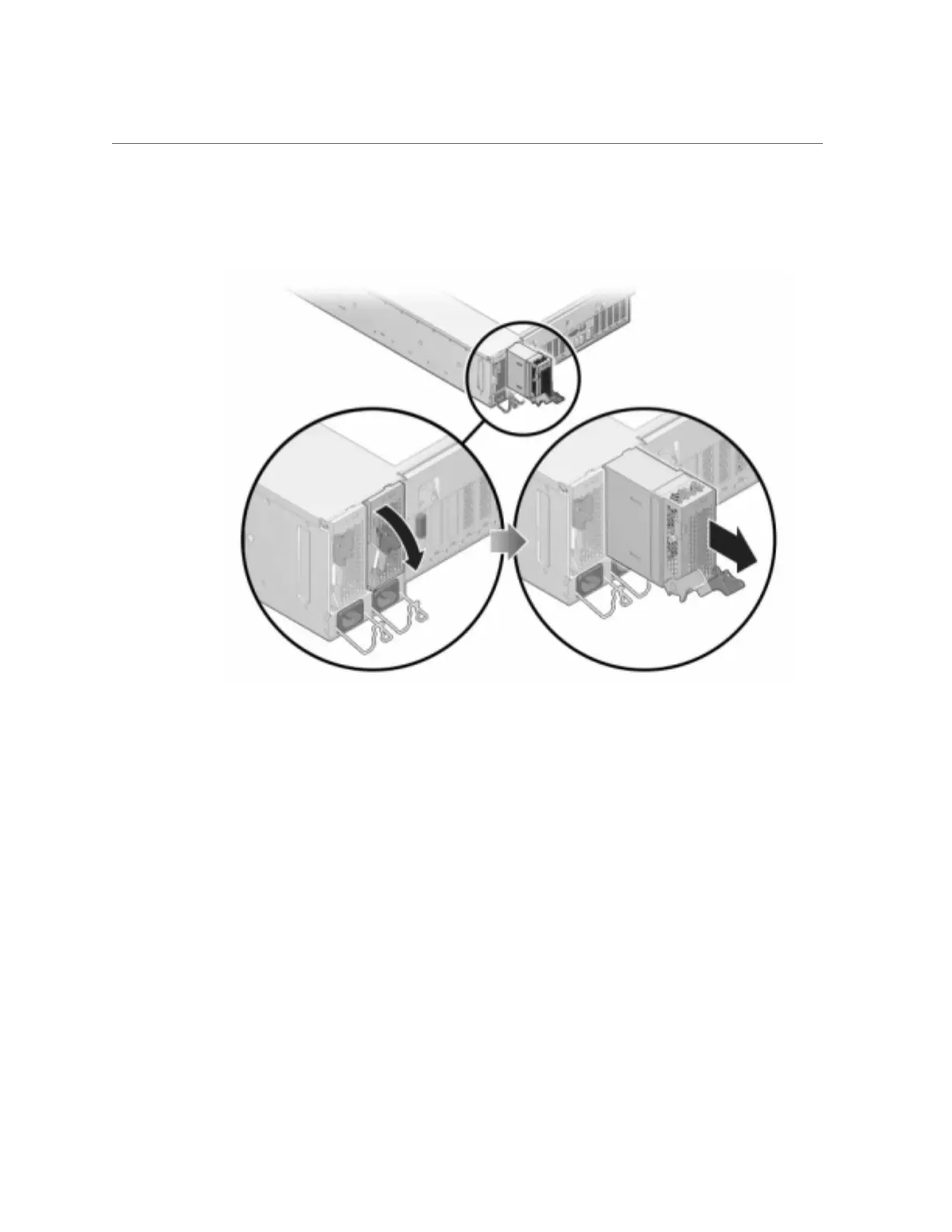

7420: Grasp the power supply handle and press the release latch to remove the power supply.

5.

Align the replacement power supply with the empty power supply chassis bay.

Servicing the 7x20 Controller 183
