Oracle ZFS Storage Appliance Service Manual

7420 Controller Hardware Overview
Figure Legend Figure Legend
4 Power supply unit 1 AC inlet 11 Network management (NET MGT) 10/100 BASE-T
Ethernet port
5 System status LEDs Power: green Attention: amber
Locate: white
12 Serial management (SER MGT) port
6 PCIe slots 0-4 13 DB-15 video connector
7 Cluster card slot
Cluster Interface Card Compatibility - The 7420 controller contains a Version 2 cluster
interface card. This card cannot be replaced with a Version 3 cluster interface card.
For information about how to connect cables to form a cluster, see “Connecting Cluster Cables”
in Oracle ZFS Storage Appliance Cabling Guide.
Ethernet Ports
There are four RJ-45 Gigabit Ethernet connectors (NET0, NET1, NET2, NET3) located on
the motherboard that operate at 10/100/1000 Mbit/sec. These network interfaces must be
configured before use.
Network Management Port
The network management connector (NET MGT) is an RJ-45 10/100 BASE-T Ethernet port
and provides a LAN interface to the SP console.

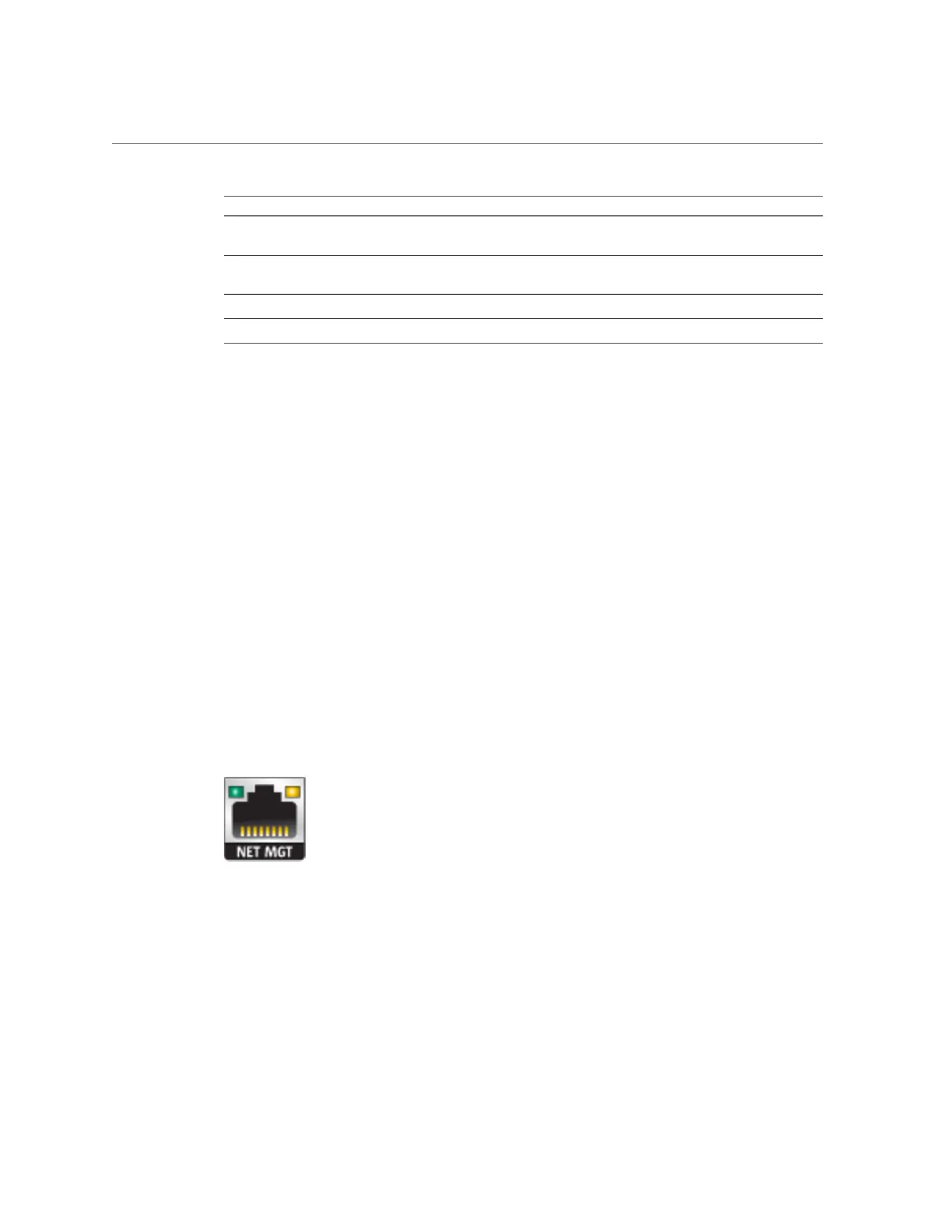

FIGURE 38
7420 Controller Network Management Port
Serial Management Port
The serial management connector (SER MGT) is an RJ-45 connector and provides a terminal
connection to the SP console.
Servicing the 7x20 Controller 217

Oracle ZFS Storage Appliance Specifications

General

Connectivity	10GbE, 40GbE, InfiniBand, Fibre Channel
Protocols	NFS, SMB, iSCSI, Fibre Channel, HTTP
Operating System	Oracle Solaris
Data Protection	snapshots, clones, remote replication
Data Reduction	Inline compression, deduplication
High Availability	Redundant hardware components (controllers, power supplies, fans). Automatic failover between controllers. Hot-swappable drives and components. Cluster configurations for increased availability and scalability.
Management Interface	Web-based GUI, CLI, REST API
Storage Type	Hybrid (SSD + HDD), All-Flash
Storage Capacity	Up to several petabytes
Encryption	AES-256 encryption at rest
