Oracle ZFS Storage Appliance Service Manual

Disk Shelf Hardware Overview

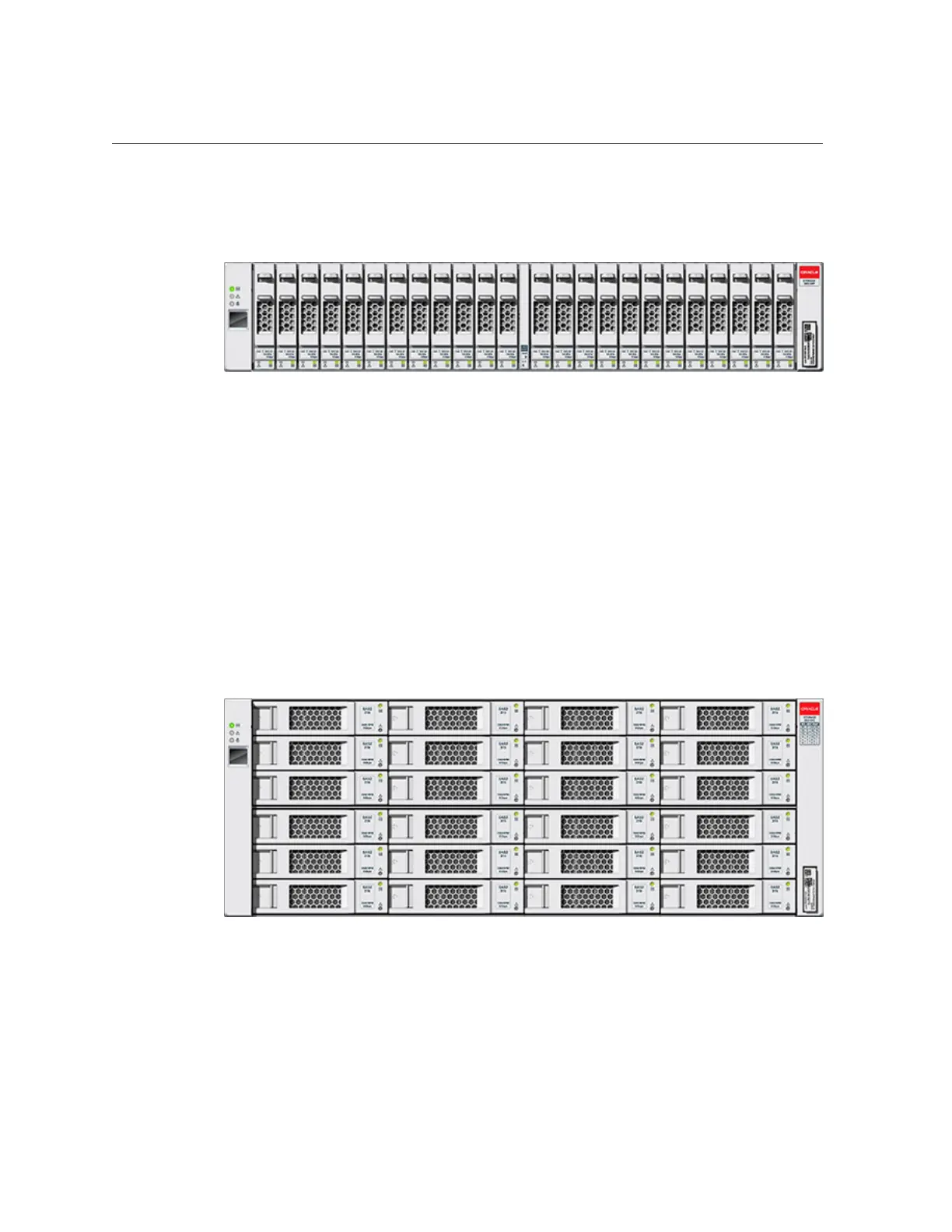

FIGURE 64
Oracle Storage Drive Enclosure DE2-24P
The Oracle Storage Drive Enclosure DE2-24P is a 2U chassis that supports 24 2.5" SAS-2
devices. The high-performance HDDs provide reliable data storage. SSDs provide read-
optimized cache and write-optimized log operations. This disk shelf also features dual,
redundant I/O Modules (IOMs), and dual power supplies with integrated fan modules.
External Read Cache Devices - Read cache devices, installed in disk shelves, are external to
the controller and referred to as external second level adaptive replacement cache (EL2ARC).
When a cluster takeover occurs, read cache remains persistent and sharable between controllers,
enabling read performance to be sustained. For slot configuration details and minimum software
requirements, see “Disk Shelf Configurations” on page 286.
FIGURE 65
Oracle Storage Drive Enclosure DE2-24C
The Oracle Storage Drive Enclosure DE2-24C is a 4U chassis that supports 24 3.5" SAS-2
devices. The high-performance HDDs provide reliable data storage. The SSDs provide read-
Servicing the Disk Shelves 273

Oracle ZFS Storage Appliance Specifications

General

Connectivity	10GbE, 40GbE, InfiniBand, Fibre Channel
Protocols	NFS, SMB, iSCSI, Fibre Channel, HTTP
Operating System	Oracle Solaris
Data Protection	snapshots, clones, remote replication
Data Reduction	Inline compression, deduplication
High Availability	Redundant hardware components (controllers, power supplies, fans). Automatic failover between controllers. Hot-swappable drives and components. Cluster configurations for increased availability and scalability.
Management Interface	Web-based GUI, CLI, REST API
Storage Type	Hybrid (SSD + HDD), All-Flash
Storage Capacity	Up to several petabytes
Encryption	AES-256 encryption at rest
