Oracle ZFS Storage Appliance Service Manual

ZS4-4 Controller Hardware Overview

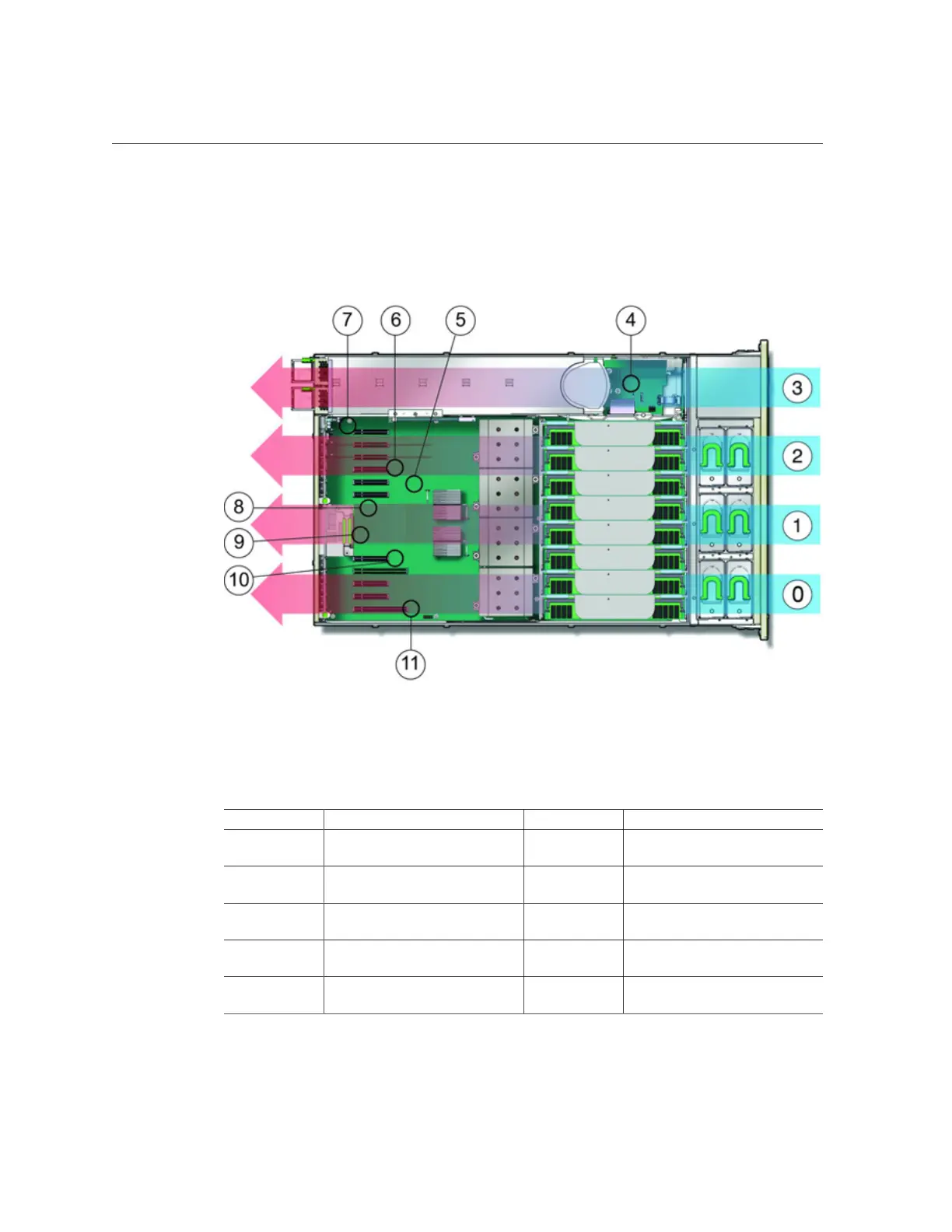

FIGURE 12
ZS4-4 Cooling Subsysem
Figure Legend
0 Cooling zone 0 6 Temperature sensor TS_ZONE2
(U4505)
1 Cooling zone 1 7 Temperature sensor TS_OUT
(U4506)
2 Cooling zone 2 8 Temperature sensor TS_TVL_1
(U4002)
3 Cooling zone 3 (power supply
backplane area)
9 Temperature sensor TS_TVL_0
(U4302)
4 Temperature sensor TS_PS (U4603) 10 Temperature sensor TS_ZONE0_B
(U4509)
Servicing the ZS4-4 Controller 87

Oracle ZFS Storage Appliance Specifications

General

Connectivity	10GbE, 40GbE, InfiniBand, Fibre Channel
Protocols	NFS, SMB, iSCSI, Fibre Channel, HTTP
Operating System	Oracle Solaris
Data Protection	snapshots, clones, remote replication
Data Reduction	Inline compression, deduplication
High Availability	Redundant hardware components (controllers, power supplies, fans). Automatic failover between controllers. Hot-swappable drives and components. Cluster configurations for increased availability and scalability.
Management Interface	Web-based GUI, CLI, REST API
Storage Type	Hybrid (SSD + HDD), All-Flash
Storage Capacity	Up to several petabytes
Encryption	AES-256 encryption at rest
