MECH-53

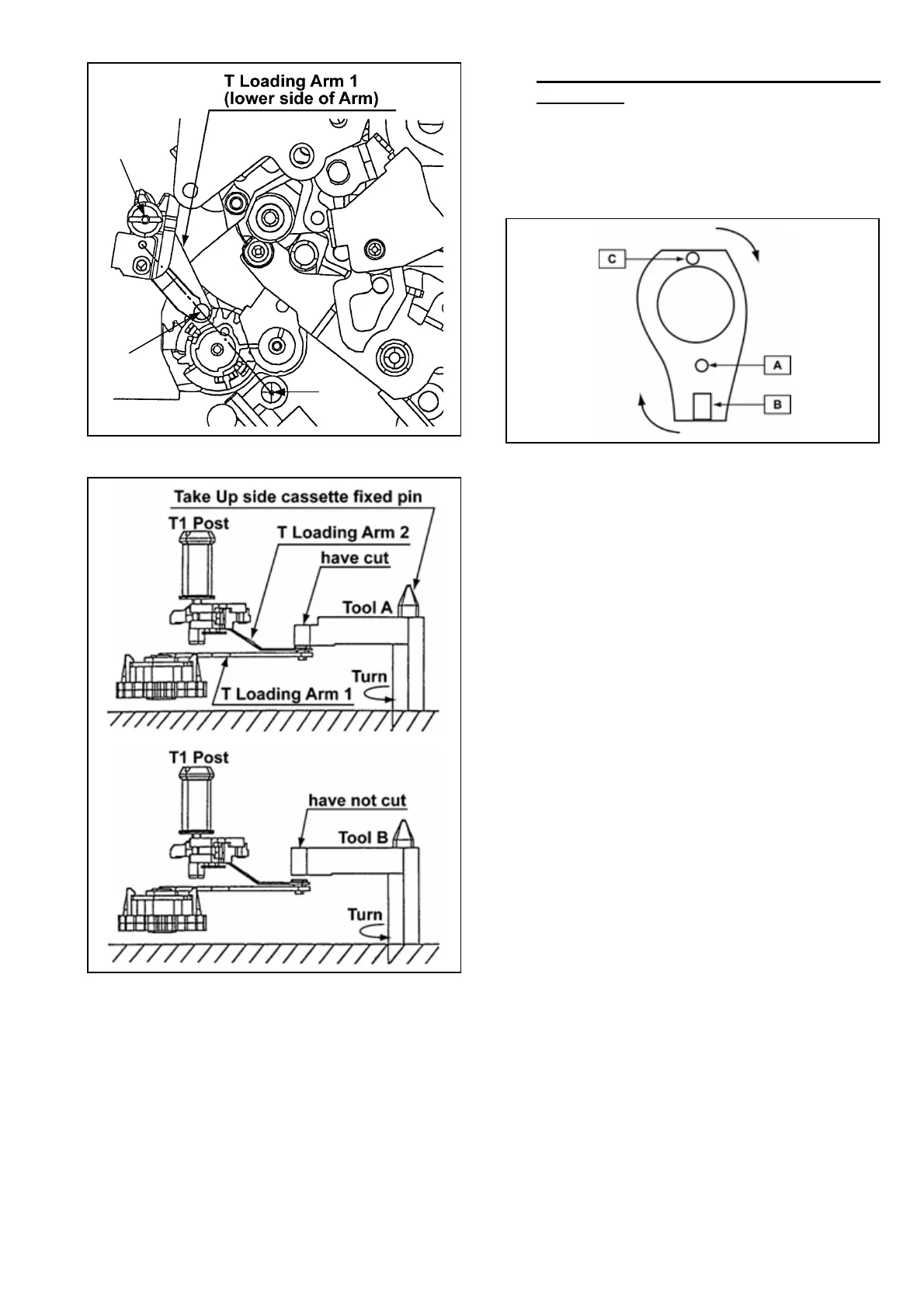

Figure 5-20-2
Figure 5-20-3
(2) Check the smooth movement of T1
Boat Unit.
Check smooth loading and unloading operations.
If not smooth (especially, at the curve of rail), take
the following steps.
1. Check deformation of T1 boat joint.
2. If no deformation, then reposition the loading rail
as described below.
Figure 5-20-4
1. Loosen the screw A.
2. While pressing the projection B leftward, tighten
the screw.
If loading & unloading operation still
is not smooth, remove CYL and
loosen screws A and C. Turn the rail
clockwise as shown in the figure and
then tighten the screws.
If the operation still is not smooth, replace loading
rail or the T1 boat with a new one.
(A)
(B)
(C)
To Next Page
