1-9. Mechanism Chassis Unit
Removal

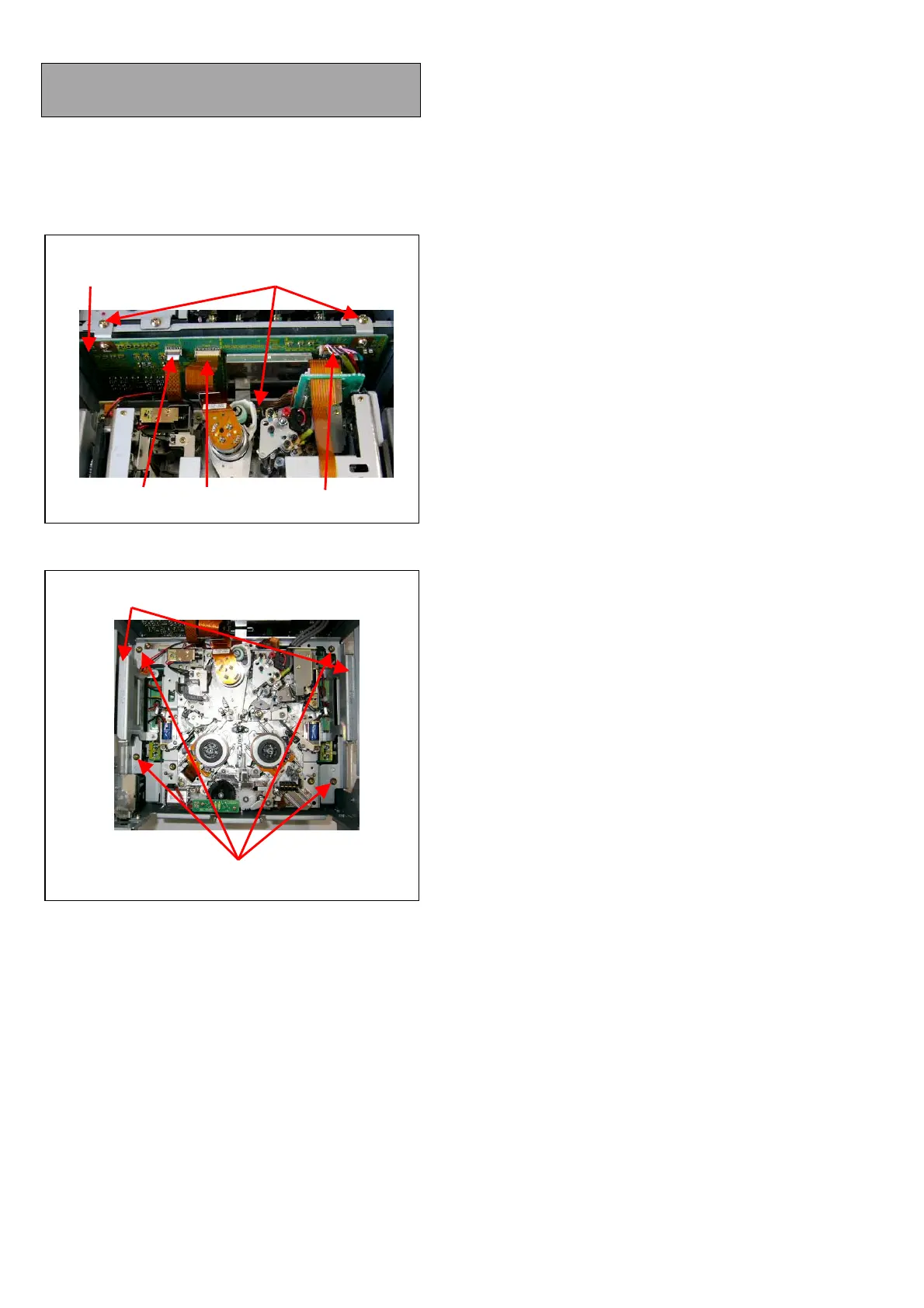

1. Disconnect the 3 connectors (P6202, P6201, and
P4001).
2. Unscrew the 3 screws (T) and then temporary
remove the RF/CUE Board.
3. Remove the Front Loading Unit according to the
paragraph “1-4. Front Loading Unit Removal”
4. Unscrew the 4 screws (U) and lift up the handle on
either side attached to the Mechanism Chassis.
(U)
Mechanism Chassis Handles
P6202 P6201 P4001
(T)
RF/CUE Board
