Panasonic AJ-SD93P/E - MECHA if 3 Board Removal; Power Supply Unit Disassembly; Power Supply Unit Removal

DIS-3

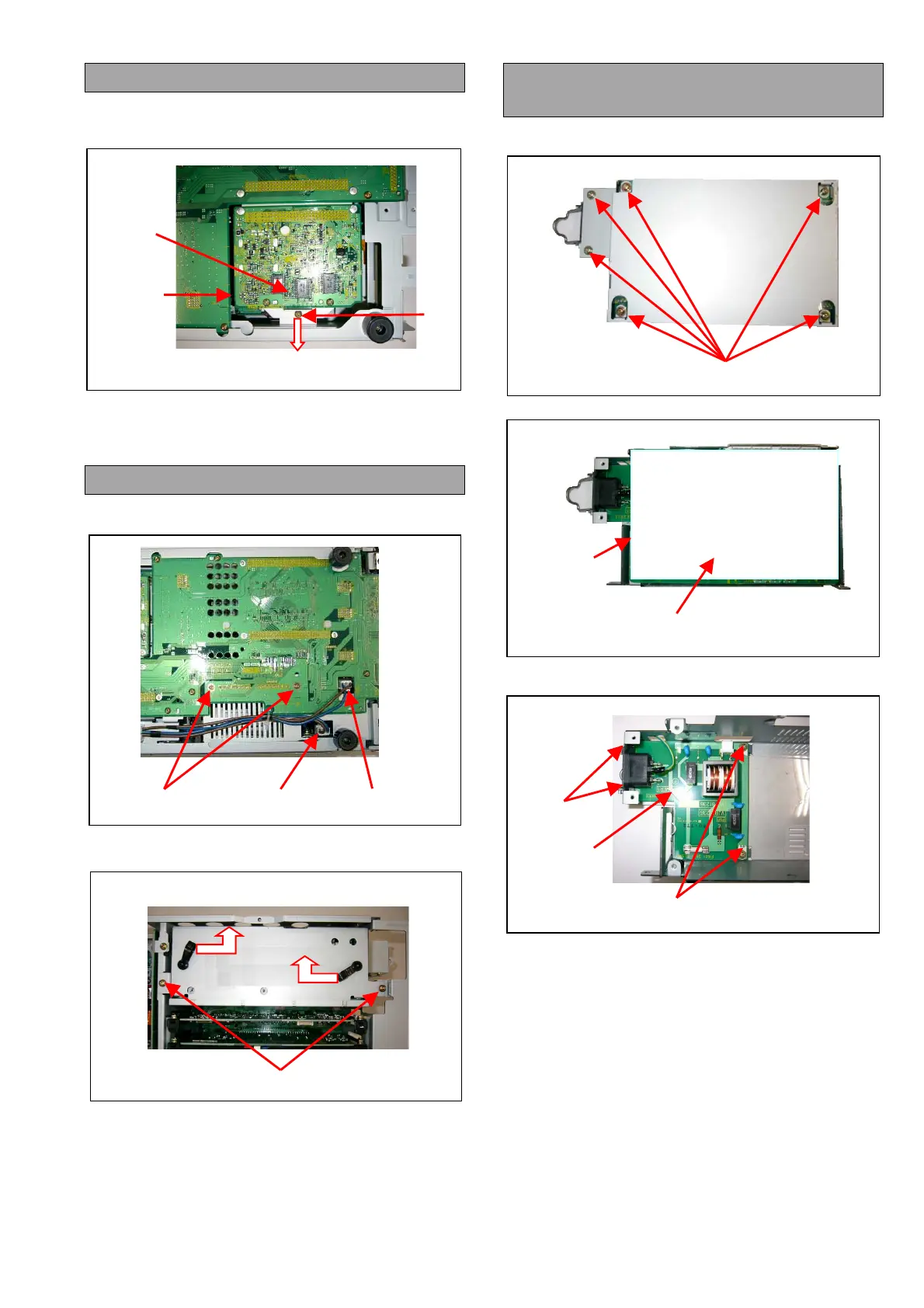

1-6. MECHA IF 3 Board Removal
1. Unscrew the screw (N).
2. Slide the MECHA IF 3 Board in the direction of the
arrow and remove it..
1-7. Power Supply Unit Removal
1. Disconnect the 2 connectors (P1501 and P1001)
and unscrew the 2 screws (O).
3. Unscrew the 2 screws (P) and lift up the Power
Supply Unit.
1-8. Power Supply Unit
Disassembly
1. Unscrew the 6 screws (Q) and then remove the side
cover.
2. Remove the Plastic Barrier and POWER 2 Board.
3. Unscrew the 4 screws (S) and (R), and then remove
the POWER 1 Board.
P1001 P1501
(O)
(P)
(Q)
Plastic
Barrier
POWER 2 Board
(R)
(S)
POWER 1
Board
MECHA
IF 3
Board
(N)
Slide the Board in this direction.
MOTHER
Board
