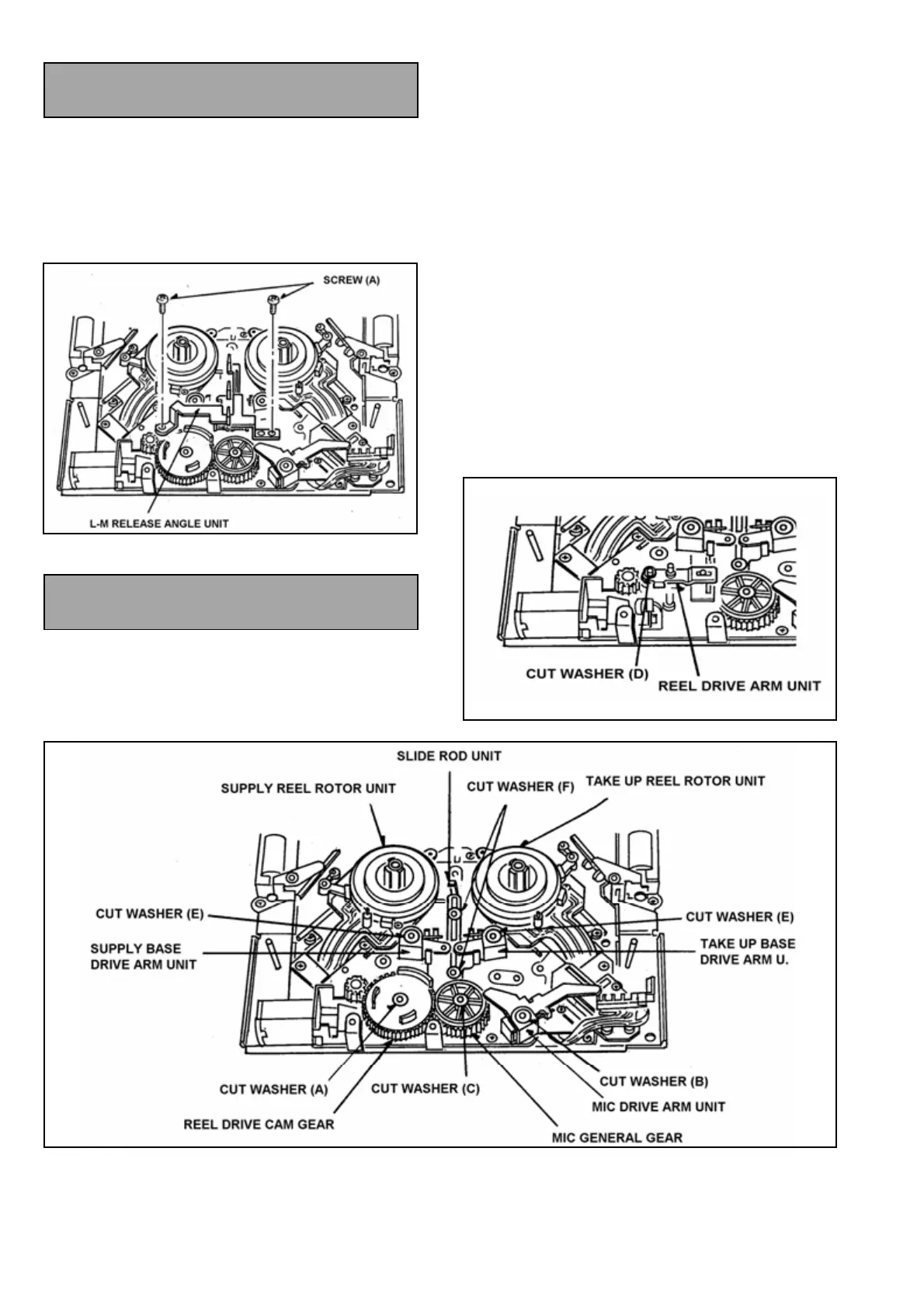

Panasonic AJ-SD93P/E - L-M Release Angle Unit Replacement; Slide Rod Unit Replacement & Adjustment

MECH-58
5-25. L-M Release Angle Unit
Replacement
(Removal)
1. Unscrew the 2 screws (A) and remove the L-M
Release Angle Unit as shown in Figure 5-25-1.
(Installation)
1. Install the new L-M Release Angle Unit following
the removal steps reverse order.
Figure 5-25-1
5-26. Slide Rod Unit Replacement
& Adjustment
(Removal)
1. Remove the L-M Release Angle Unit. (Refer to
item 5-25)
2. Remove the Reel Drive Sensor P.C.Board. (Refer
to item 5-24).
3. Remove the Cut Washer (A) and remove the Reel
Drive Cam Gear as shown in Figure 5-26-1.
4. Remove the Cut Washer (B) and remove the MIC
Drive Arm Unit as shown in Figure 5-26-1.
5. Remove the Cut Washer (C) and remove the MIC
Geneva Gear as shown in Figure 5-26-1.
6. Remove the Cut Washer (D) and remove the Reel
Drive Arm Unit as shown in Figure 5-26-2.
7. Remove the Supply and Take Up Reel Rotor Unit.
(Refer to item 5-5)
8. Remove the 2 Cut Washers (E) and remove the
Supply and Take Up Base Drive Arm Unit.
9. Remove the 2 Cut Washers (F) and remove the
Slide Rod Unit.
(Installation)
1. Install the new Slide Rod Unit following the
removal steps in reverse order.
2. After installation of the Reel Drive Cam Gear and
MIC Geneva Gear, phase adjustment should be
performed as follows.
Figure 5-26-2
Figure 5-26-1
