Panasonic AJ-SD93P/E - Tp & Main Signal for Tape Path Confirmation

INF-17

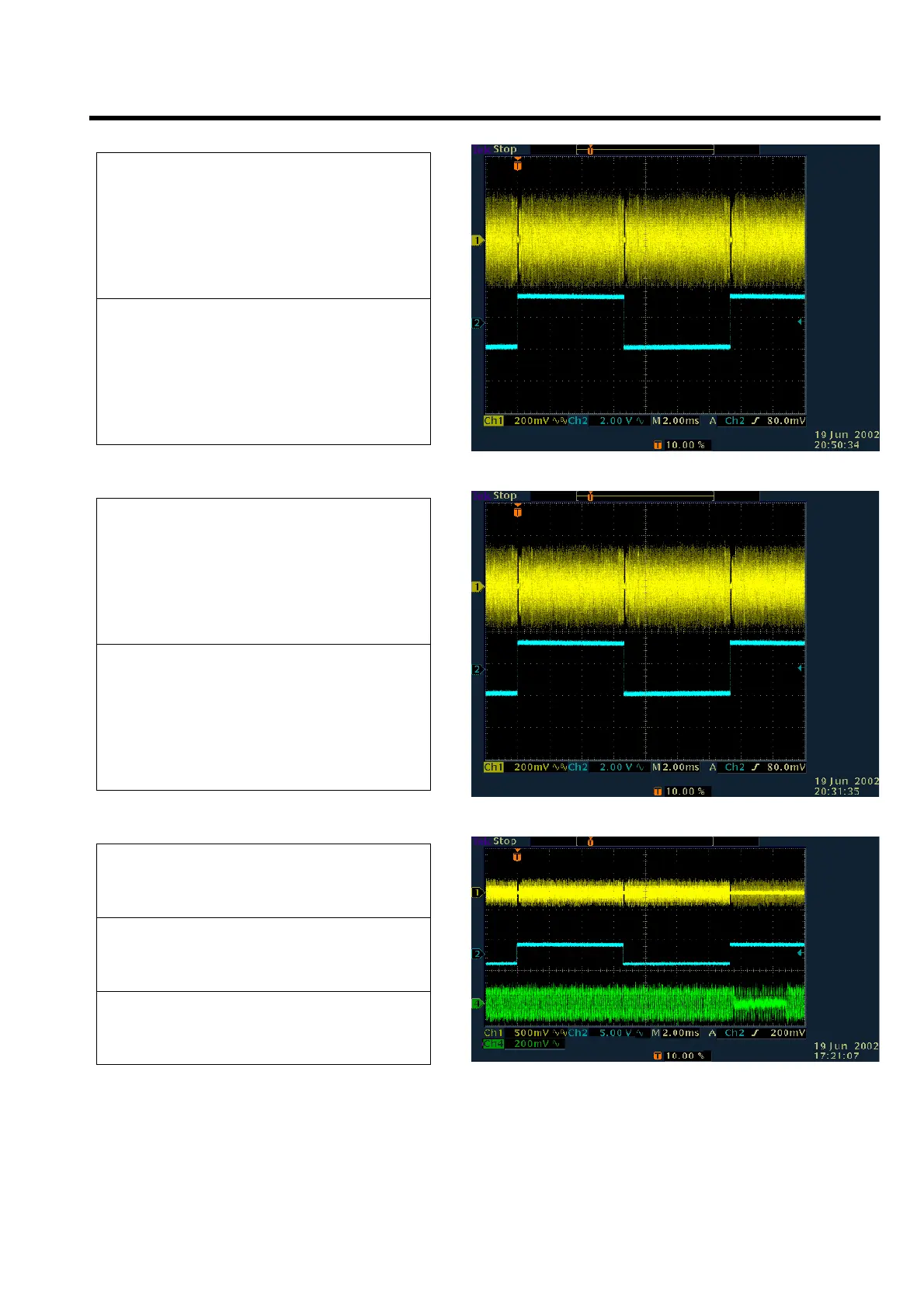

10. TP & MAIN SIGNAL FOR TAPE PATH
CONFIRMATION
TP6302 R/P-L or PB-L ENVELOPE Signal
(RF/CUE Board)
TP233 R/P-L-HSW Signal
(SERVO Board)
TP6502 R/P-R or PB-R ENVELOPE Signal
(RF/CUE Board)
TP235 P/R-R-HSW Signal
(SERVO Board)
TP6302 R/P-L or PB-L ENVELOPE Signal
(RF/CUE Board)
TP233 R/P-L-HSW Signal
(SERVO Board)
TP4102 CUE Signal
(RF/CUE Board)
Figure 10-1
Figure 10-2
Figure 10-3
