DIS-1

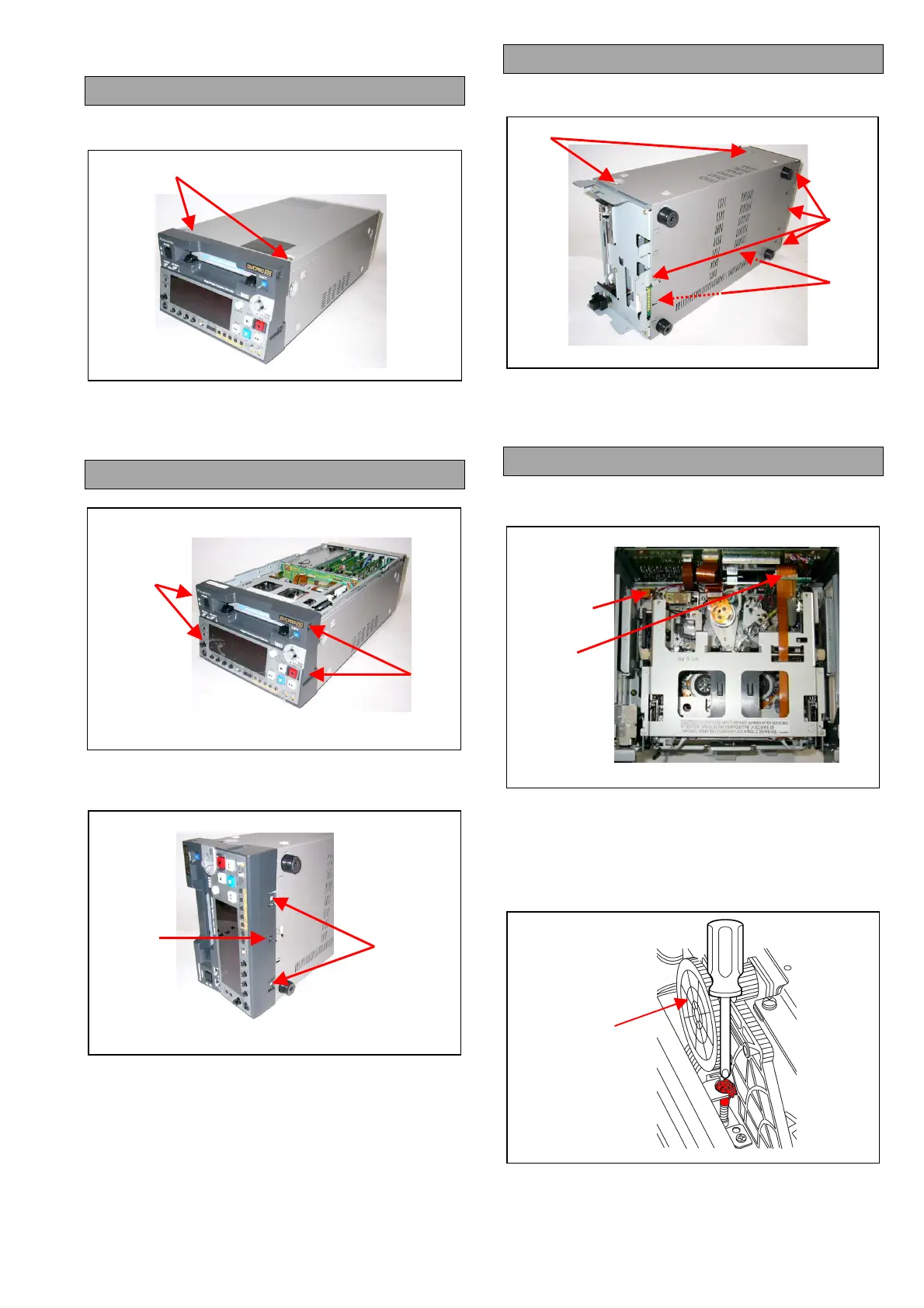

1. Disassembly Procedures
1-1. Top Panel Removal
1. Loosen the 2 screws (A) and remove the Top
Case.
1-2. Front Panel Removal
1. Unscrew the 4 screws (B).
2. Unscrew the screw (C).
3. Release the lock claws and then remove the
Front Panel Unit to the front.
1-3. Bottom Case removal
1. Unscrew the 4 screws (D) and 4 screws (E).
2. Remove the Bottom Case.
1-4. Front Loading Unit Removal
1. Disconnect the 2 connectors (To the Loading
Motor and P1).
2. Push the red plastic screw in front of the worm
gear of the cassette-down motor with a
screwdriver and turn it counterclockwise to move
the cassette holder to the position where the two
screws (F) can be seen as shown the first figure
of the next page.
(D)
(D)
(E)
Connector
(P1)
(B)
(C)
Lock
Claws
(A)
(B)
Warm
Gear
To Next Page
