Panasonic AJ-SD93P/E - Rear Panel Removal

DIS-2
3. Unscrew the four screws (F) and (G), and then
slowly lift up the Front Loading Unit.

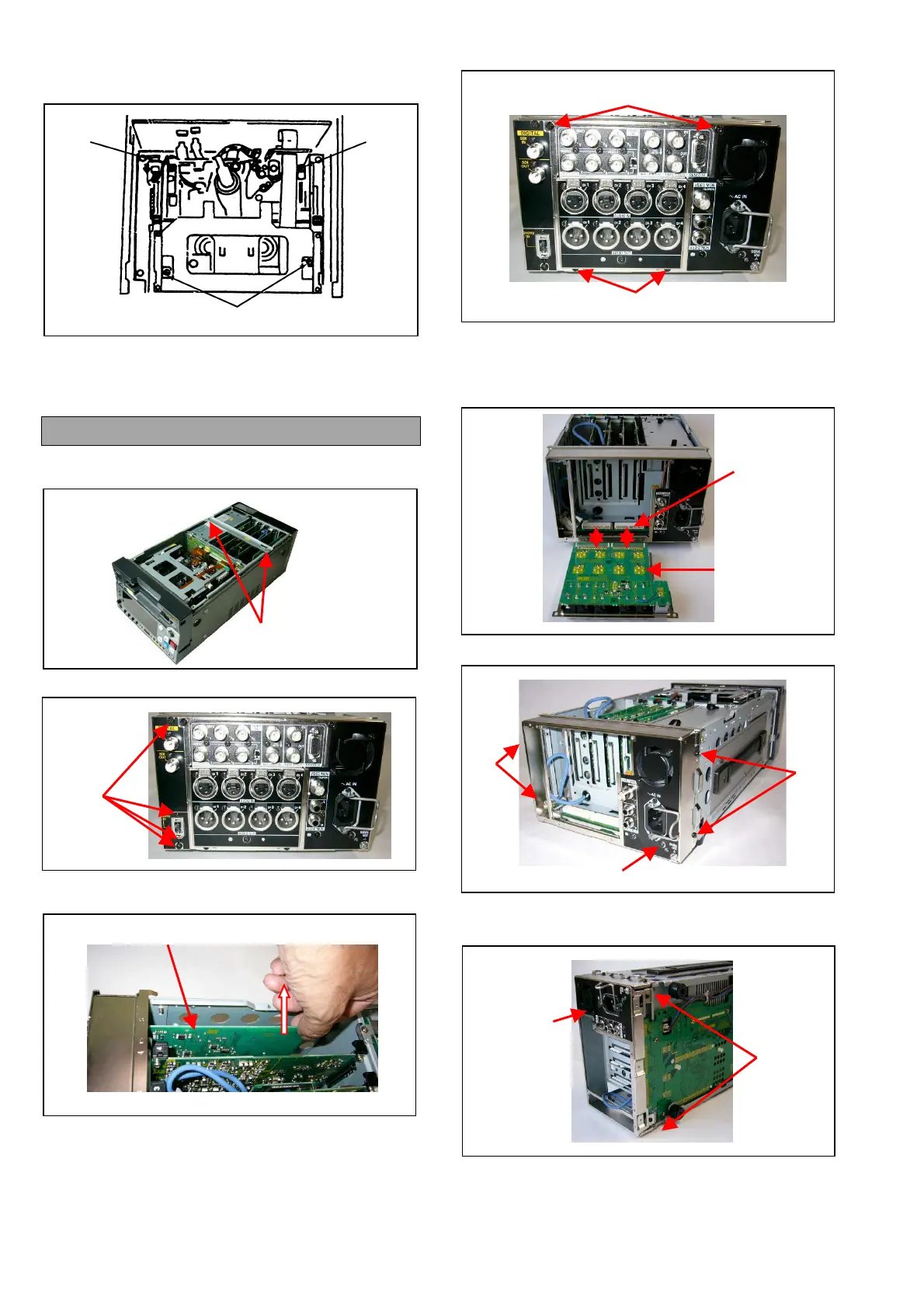

1-5. Rear Panel Removal
1. Unscrew the 2 screws (H) and remove the Boards
support plate.
2. Unscrew the 4 screws (I).
3. When the Optional Board (SDI Board) AJ-YA94G is
installed, remove the SDI Board as shown below.
4. When the Optional Boards (IVIO Board and OPT
JACK Unit) is installed, unscrew the 4 screws (J).
5. Pulling back the OPTJACK Board Unit and remove
it.
Note: The OPTJACK has been connected with the
MOTHER board by connectors as shown below.
6. Unscrew the 5 screws (K) and (L)
7. Unscrew the 2 screws (M) and remove the Rear
Panel.
(G)
(G)
(F)
(M)
(J)
SDI Board (AJ-YA94G)
OPTJACK
Board Unit
(AJ-YA63)
Connectors
(K)
(K)
(L)
(I)
(J)
Rear Panel
(H)
