Panasonic AJ-SD93P/E - Page 90

MECH-12

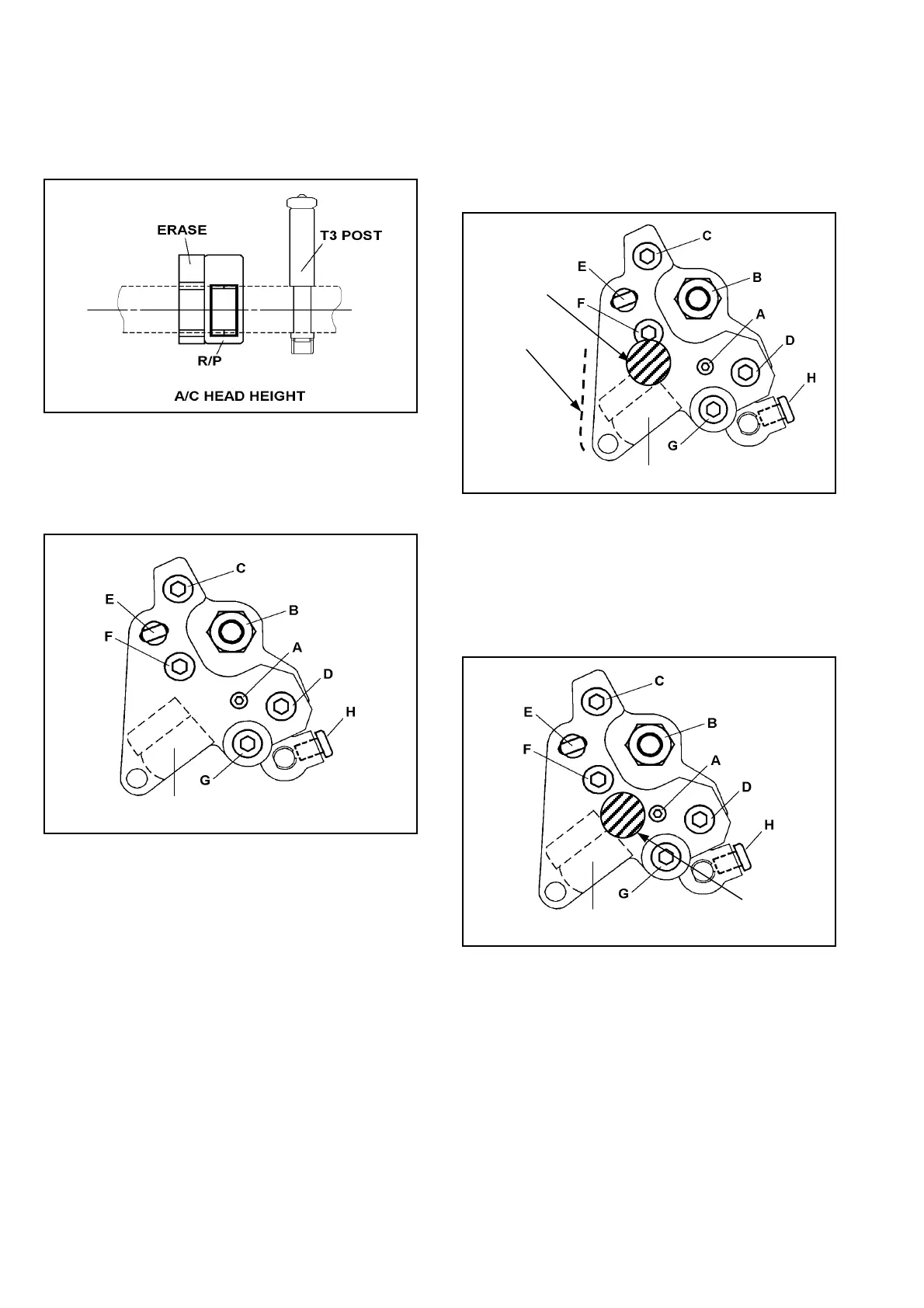

1. For Tilt and Azimuth adjustment, loosen the screw
(G) first and tighten the screw (G) after finish
adjustment. And if need to turn the screw (A) and
(F) too much for adjustment, tighten screw (A), (F)
and (G) alternately.
Figure 3-13-2
2. Perform the Height and X-value adjustment under
the screw (G) tightened completely.
3. Be careful the tape damage at T3 Post, when
adjust tilt of A/C Head. (refer to figure 3-13-2)
Figure 3-13-3
4. Confirm the screw (A) isn’t loose, before perform
A/C Head Tilt adjustment. The screw (A) should
be always touch to top of A/C Head.
5. When the height of A/C Head is adjusted by the
Nut (B), the screw (H) should be loosen first. And
after height adjustment finished, tighten the screw
(H) lightly.
Figure 3-13-4
6. After finish X value adjustment, hit the portion (L)
lightly and confirm the specification of X-value.
7. Each adjustment of A/C Head should be finished
at the condition of tightening the each adjustment
screw. And hit the portion (L) lightly to release the
distortion of A/C Head plate.
Figure 3-13-5
A
/C Head
Lift up portion
Press down
portion
A
/C Head
A
/C Head
(L)
