Operating Instructions Intelligent Controller
40
Setting a schedule
Operation/Status
Schedule setting ow This system allows you to set schedules for each indoor unit so that they run automatically. You can set schedules by month for up to 2 years in the future. Furthermore, you can put indoor units that will run on the same schedule into “Schedule group”.
Schedules are set according to the following ow.
Setting a schedule
z “Setting a schedule” (P.43)
Register the schedule for indoor units.
y Decide a “daily running mode” to set when registering the schedule. You can register up to 50 types of daily running mode.
What is the “daily running mode”? Scheduling patterns for indoor units (individually or as part of a schedule group) are called “daily running mode”. Daily operating modes are registered as different patterns for schedules to match different days of the week, holidays, and seasons.
Example of daily running mode settings
y Daily running mode for a working day (Monday to Friday) (“Mode1”) y Daily running mode for Saturday (“Mode2”) y Daily running mode for Sunday (“Mode3”)
* Schedule group: Indoor units that run on the same schedule registered in groups. To register into schedule groups, see
“Basic settings on the indoor unit” (P.141).
41
Setting a schedule
Operation/Status
What is a “setting cell”? To set a schedule, you need to register operations in “setting cells”. The “setting cell” is the smallest unit of operations used to congure a schedule. You set “Time”, “ON/OFF”, “OpertnMode”, “Temperatre”, “Fan SPD”, “Flap”, “Prhbt”, and “EnerSavStg” in a “setting cell”. Each time you change an operation (for example from “ON” to “OFF”), you register a different “setting cell”. A schedule consists of a collection of these “setting cells” lined up.

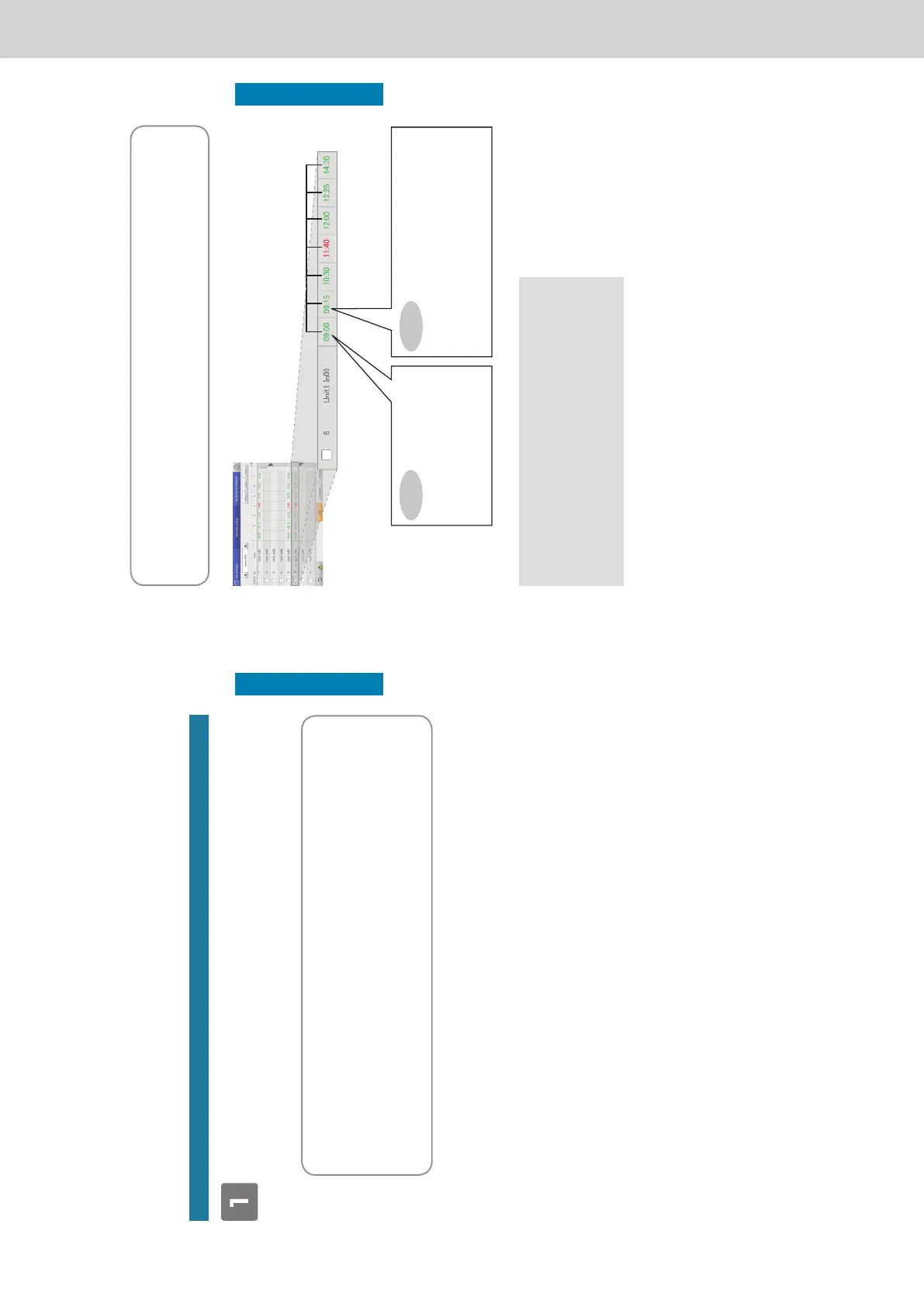

The following is an example schedule set for an indoor unit.
Setting cell (this example shows “Time” displayed)
1 block equates to a setting cell, so here there are 6 settings.
Example
In the “09:00” setting cell
y “Time”: 09:00 y “ON/OFF”: ON y “OpertnMode”: Cool y “Temperatre”: 28 °C y “Fan SPD”: Low y “Flap”: Swing
Example
In the “09:15” setting cell
y “Time”: 09:15 y “ON/OFF”: ON (no change to the setting) y “OpertnMode”: Dry y “Temperatre”: 28 °C (no change to the setting) y “Fan SPD”: Low (no change to the setting) y “Flap”: Swing (no change to the setting)
The following summarises the ow followed when setting a schedule.
(1) Select the daily running mode to register for a schedule. ↓ (2) Select an indoor unit or schedule group. ↓ (3) Set the schedule. ↓ (4) Register the setting.
Schedule setting ow
