356
SEP 2006
Ver. 1.0
DP-8020E/8020P/8016P

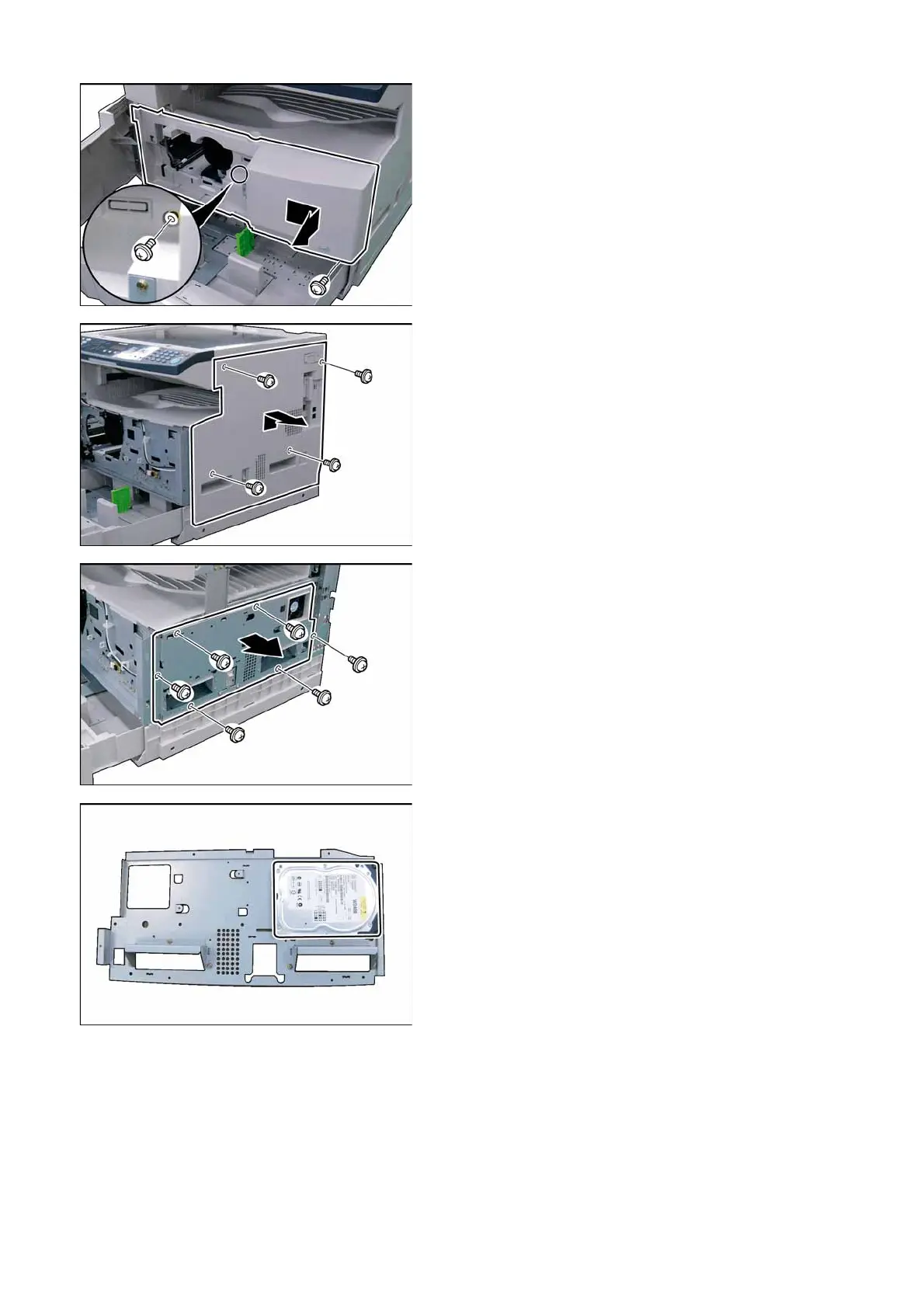

(12) Slide the 1st Paper Tray out of the unit.
(13) Remove 2 Screws.
(14) Remove the Front Cover 1.
(15) Remove 4 Silver Screws.
(16) Remove the Right Cover.
(17) Remove 6 Screws.
(18) Remove the Right Bracket.
(19) Install the HDD into the Right Bracket as
illustrated.
To Next Page
