DP-8020E/8020P/8016P

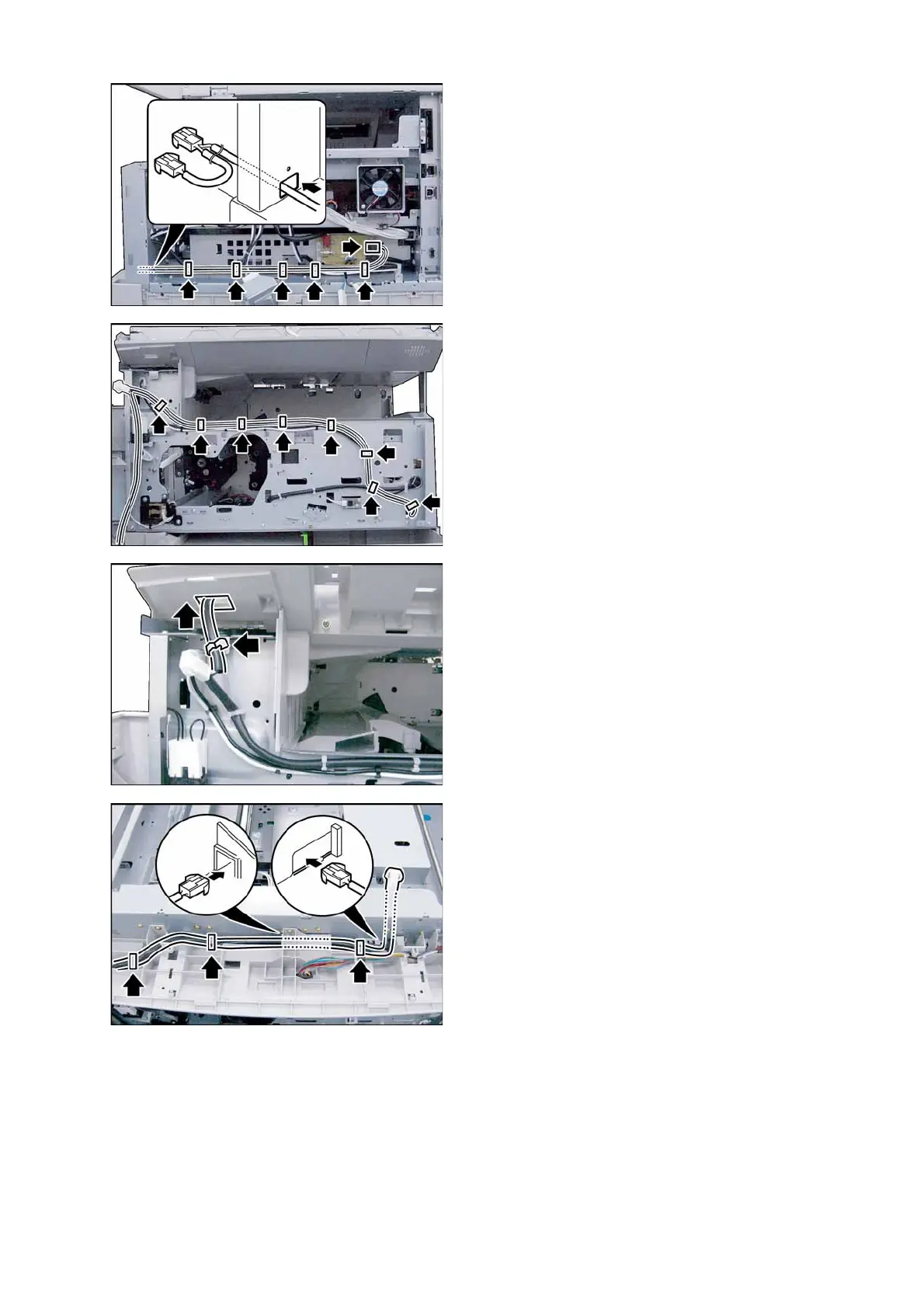

(61) Connect the PTC-AC Harness 1 to CN172 on
the RLB PC Board.
(62) Route the PTC-AC Harness 1 through the hole
in the frame as illustrated.
(63) Secure the PTC-AC Harness 1 with 5 Harness
Clamps.
(64) Route the PTC-AC Harness 1 as illustrated.
(65) Secure the PTC-AC Harness 1 with 8 Harness
Clamps.
(66) Route the PTC-AC Harness 1 through the hole
in the frame as illustrated.
(67) Secure the PTC-AC Harness 1 with the Harness
Clamp.
(68) Route the PTC-AC Harness 1 through the hole
in the frame as illustrated.
(69) Secure the PTC-AC Harness 1 with 3 Harness
Clamps.
To Next Page
