DP-8020E/8020P/8016P

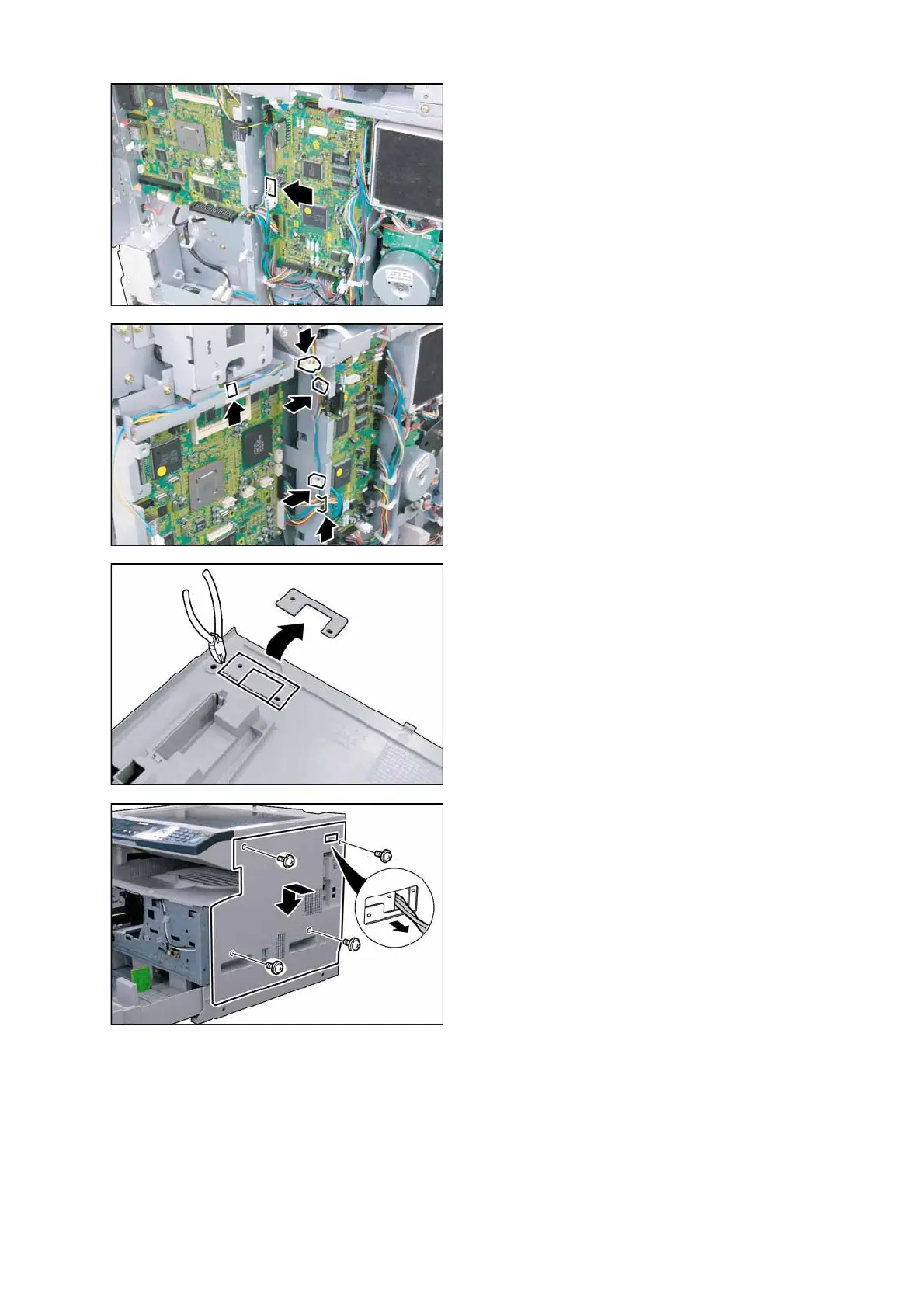

(25) Connect the KEY Harness to CN726 on the
SPC PC Board.
(26) Install 3 Clamps.
(27) Secure the KEY Harness with 4 Harness
Clamps and 1 Edge Saddle.
(28) Cut the Protective Tab on the Right Cover.
(29) Reinstall the Right Cover.
Caution:
Route the KEY Harness through the hole on the
Right Cover.
To Next Page
