53
SEP 2006
Ver. 1.0
DP-8020E/8020P/8016P
Note:

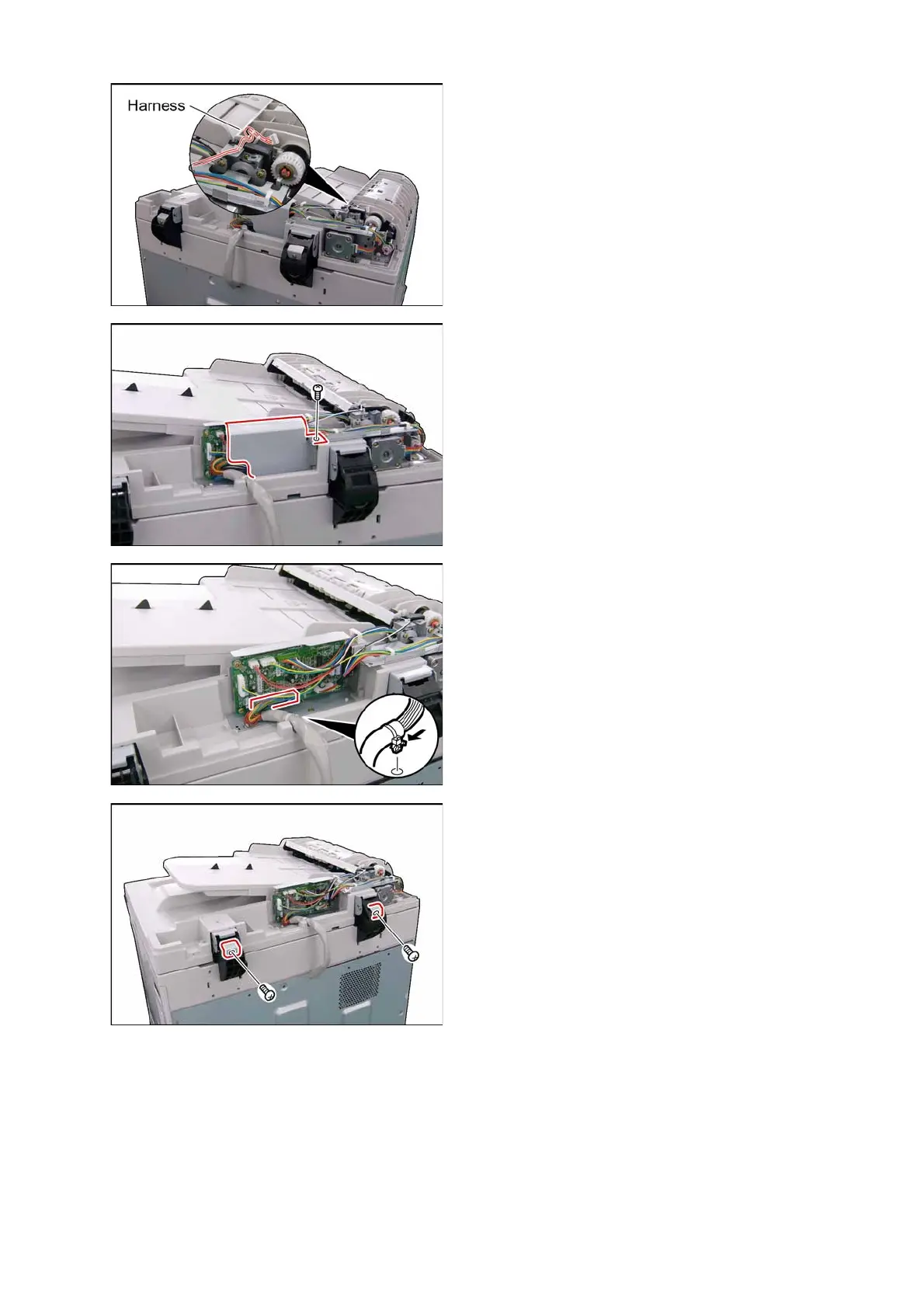

When reinstalling the ADF Rear Cover (1701),
make sure to properly route the ADF Harness as
illustrated.
(17) Remove 1 Screw (19).
(18) Remove the ADF PC Board Cover (1916).
(19) Release the Clamp from ADF Unit.
Note:
Do not cut the Tie-Wrap. Push the release clip on
the side of the clamp to remove it.
(20) Disconnect the ADF Harness (2827) on the ADF
PC Board (CN21).
(21) Remove 2 Silver Screws (B1).
(22) Remove 2 Angle Plate (1801).
To Next Page
