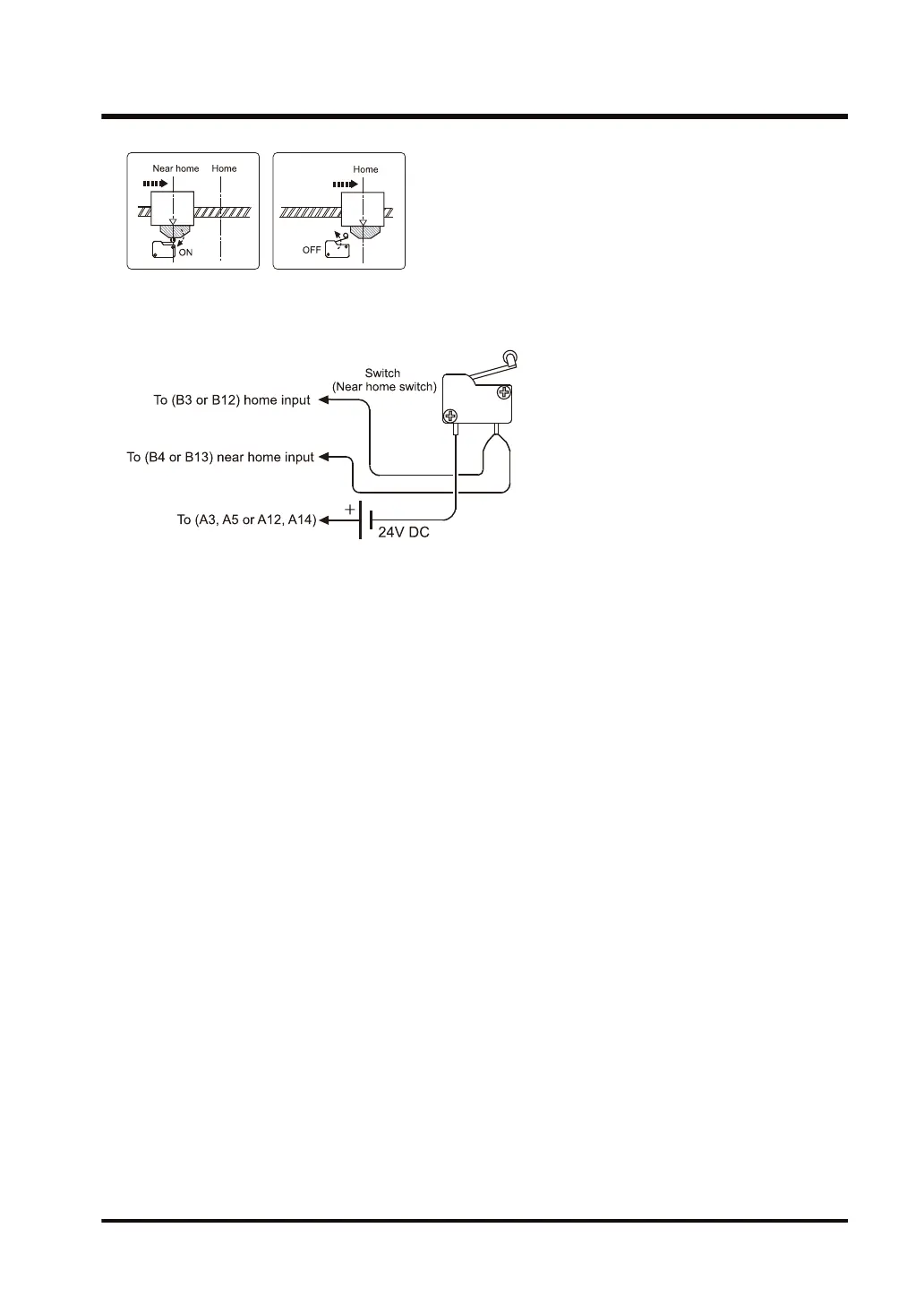

Connection
Connect near home input and home input to the near home input switch.
■
Input logic setting (when using an NO contact)
Set parameters to satisfy the following conditions.
● Home input logic: NO contact
● Near home input logic: NC contact
■
Operation
● When home return is started, the motor rotates in the direction of home return.
● When the near home input switch is turned ON, the speed slows down to the startup speed.
The motor rotates further and the near home input will be OFF.
● At this point, the home input should already be ON, as a result of the input logic, and the
motor stops.
10.5 Practical Use for Home Return
WUME-GM1PG-01 10-15
