7.1.2 Absolute (Absolute Value Control)
This section describes a program example for specifying absolute (absolute value control) using
the P-point control.
● Specify a positive value in the Position input parameter of the PG_MoveAbsolute function
block and execute it.
● Set the 2nd and 3rd speeds at the timing when the ContinuousEnable output parameter
turns TRUE.

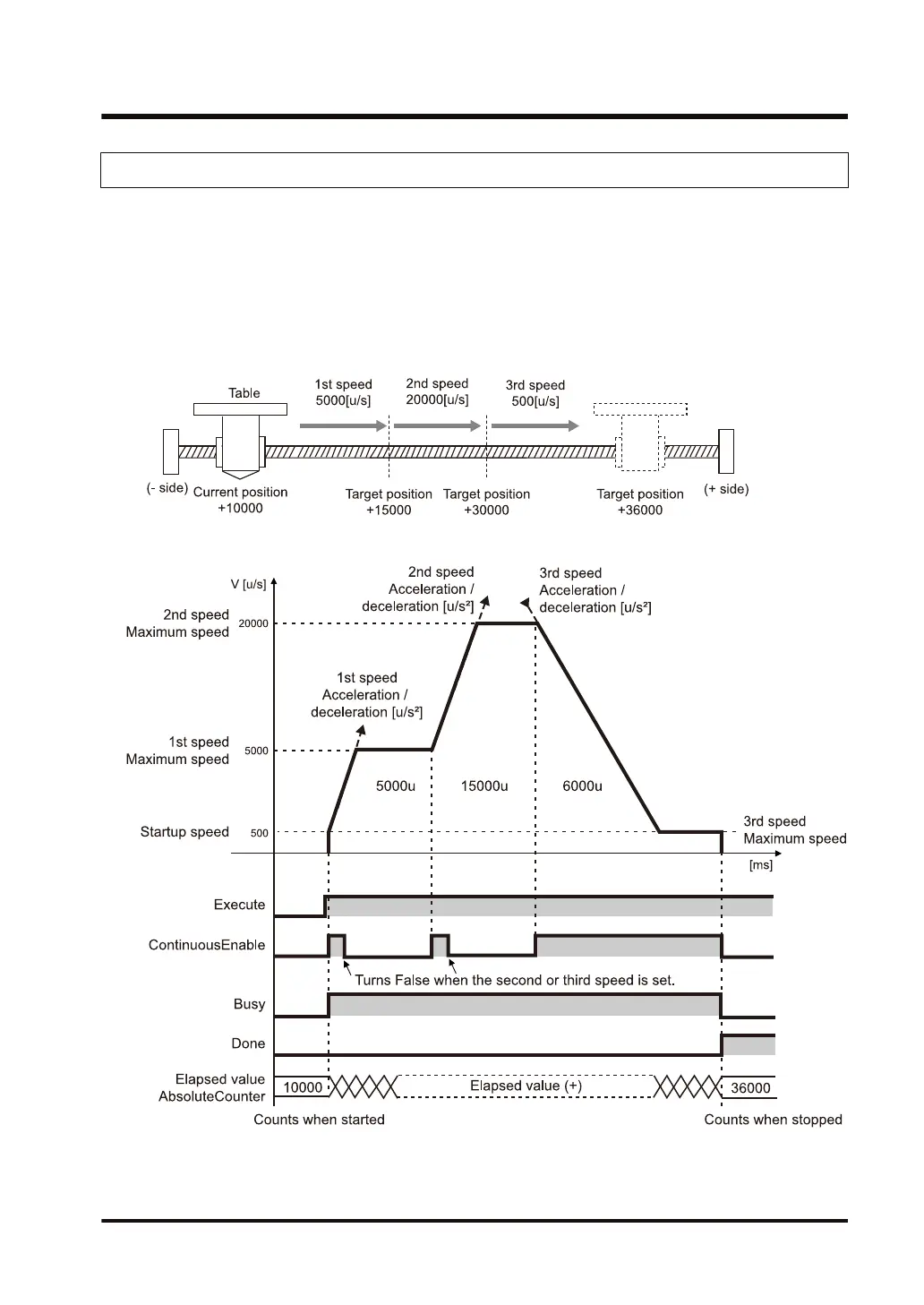

● The following describes an example for moving as shown below from the current position
(+10000).
■
Pulse output diagram
