Panasonic Lumix S1H

10. Recording Videos
290

Screen Displays

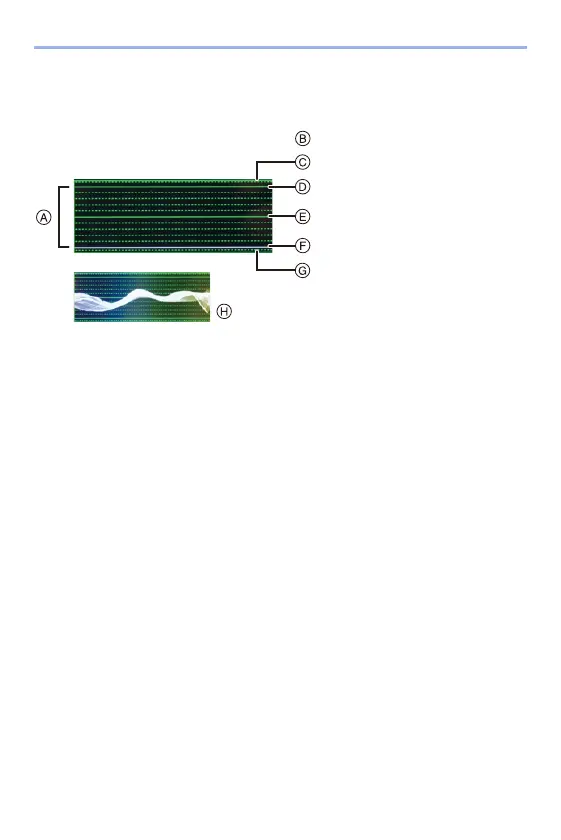

Waveform
A The range between 0 and 100 shows dotted lines at intervals of 10.
B %, IRE (Institute of Radio Engineers)
C 109 (dotted line)
D 100
E 50
F 0
G s4 (dotted line)
H Display example
0 The waveform displayed on the camera indicates the luminance as values based on
the conversions below:
0% (IRE): Luminance value 16 (8-bit)
100% (IRE): Luminance value 235 (8-bit)
