4
Insert the BNC conversion cable (for
TC IN/OUT), and then rotate the
locking screw in the direction of the
arrow to attach the cable.
5
Connect the BNC conversion cable (for
TC IN/OUT) and the external device with the BNC cable.
Synchronise the Time Code of the External Device
with That of the Camera (TC OUT)
The initial time code value of the external device is synchronised according
to the time code signal (LTC signal) of the camera.
1
Prepare for time code synchronising. (l 270)
2

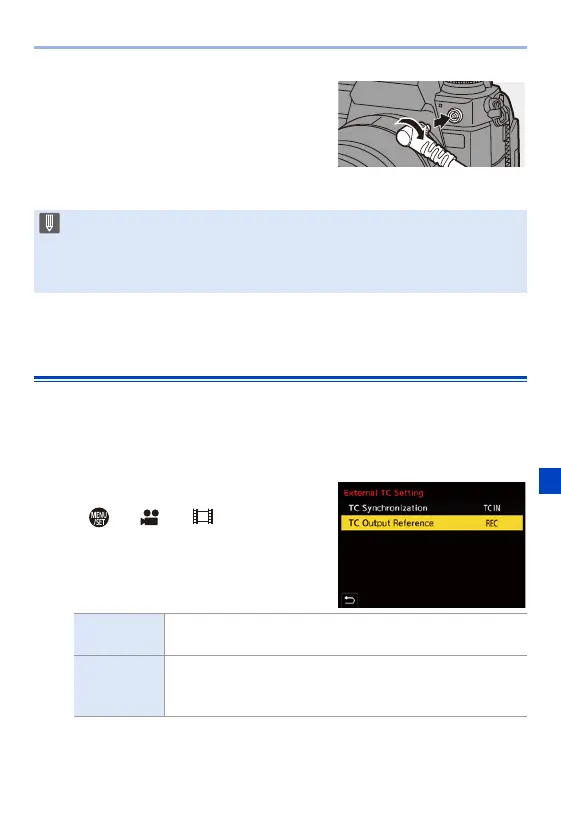

Select [TC Output Reference].
≥ ¨ [ ] ¨ [ ] ¨ [Time Code]
¨ [External TC Setting] ¨ [TC
Output Reference]
0 Do not use any other BNC conversion cables (for TC IN/OUT) except the
supplied one.
0 Do not use the BNC cables with the length of 2.8 m (9.2 feet) or more.
0 We recommend using a 5C-FB equivalent double-shielded BNC cables.
[Recording
Reference]
Outputs the time code signal for the images that you record.
[HDMI
Reference]
When connected with an external device (external recorder,
etc.) via HDMI, the time code signal output is delayed slightly
to match the HDMI images.
