12. Connections with External Devices (Video)
331
4

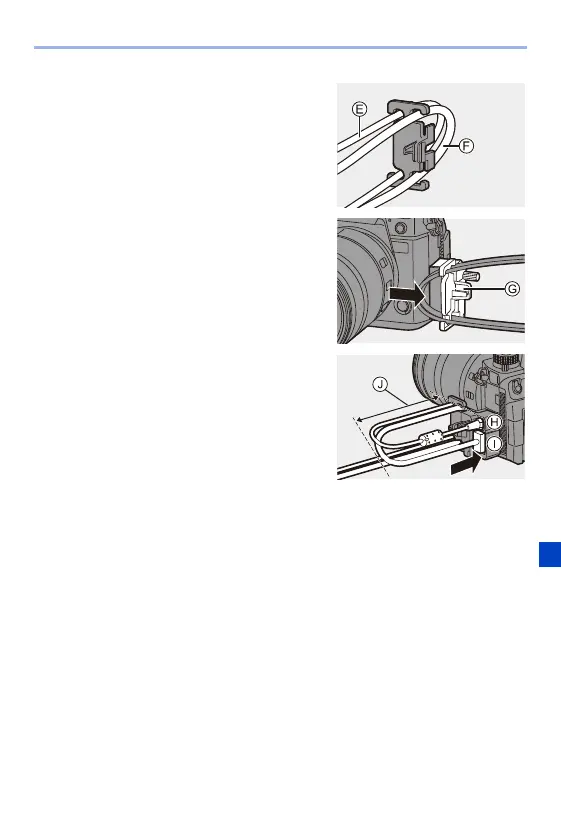

Fit the USB connection cable (C–C or
A–C) E and HDMI cable F to the
clamp.
5
Slide the clamp portion G to attach it to
the cable holder.
6
Connect the USB connection cable (C–
C or A–C) to the USB port H.
7
Connect the HDMI cable to the [HDMI]
socket I.
J Leave some slack so that this section
has a length of at least 10 cm (0.33 feet).
Removing the cable holder
To remove the cable holder, follow the steps for attaching it in the reverse
order.
