Parker P Series

Parker Hannifin
P Series User Guide 261
0x2809 [Third Party Motor] Phase Inductance ALL
Variabl
e
Format
Setting Range
Default
Value
Unit
Acces
sibility
PDO
Allocati
on
Change
Property
Stor
e
FP32
0 to 1000
3.66
mH
RW
No
-
Yes
Set the motor’s phase inductance (=linear inductance ÷2).
0x280A [Third Party Motor] TN Curve Data 1 ALL
Variabl
e
Format
Setting Range
Default
Value
Unit
Acces
sibility
PDO
Allocati
on
Change
Property
Stor
e
UINT
1 to 60000
3000
rpm
RW
No
-
Yes

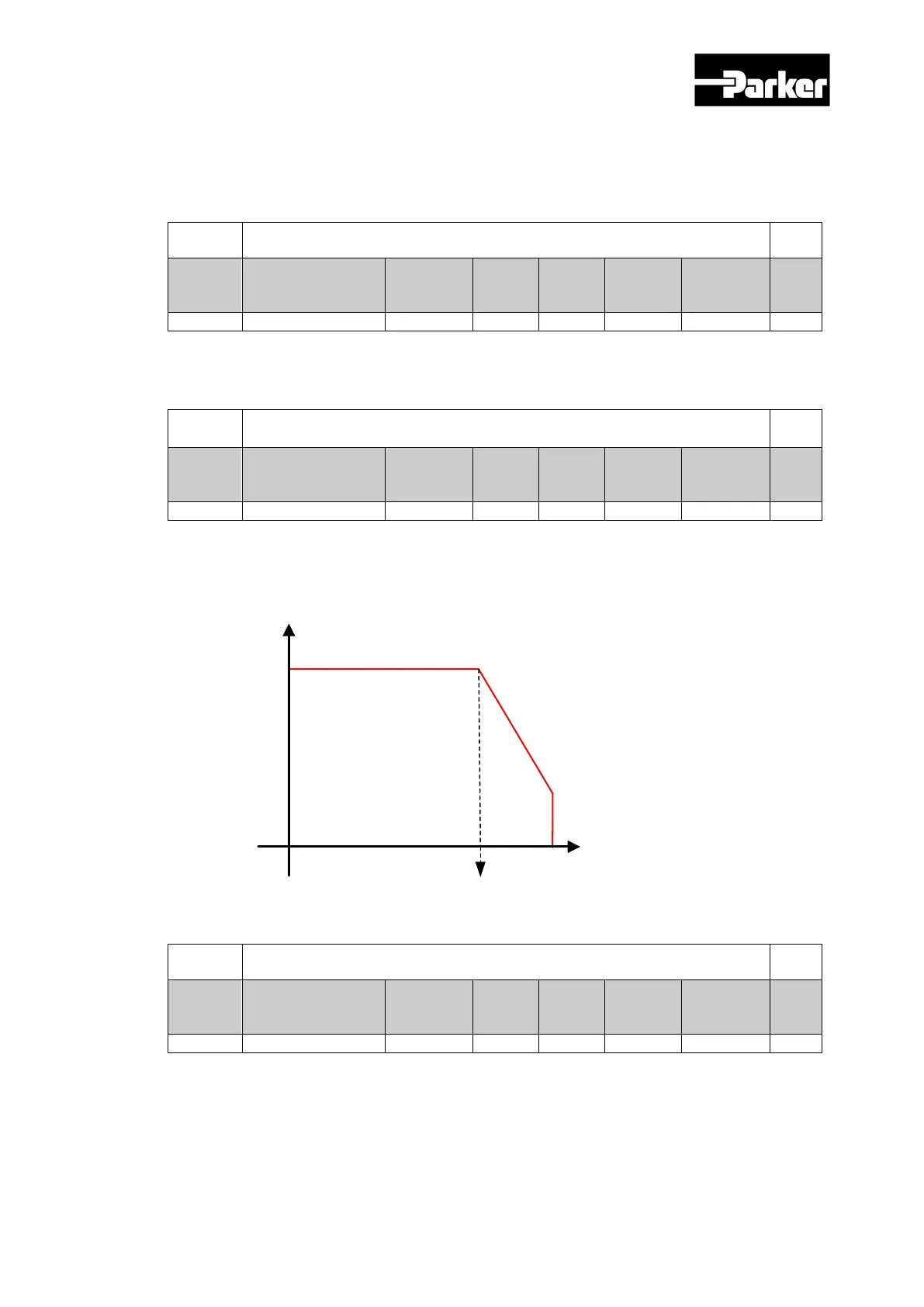

Set the motor’s speed/torque curve data. The maximum speed that outputs the
maximum torque (maximum thrust of linear motor) is input. The unit for linear motor
is mm/s.
Torque
(Force)
Speed
Max torque
0x280A
Max speed
0x280B [Third Party Motor] TN Curve Data 2 ALL
Variabl
e
Format
Setting Range
Default
Value
Unit
Acces
sibility
PDO
Allocati
on
Change
Property
Stor
e
FP32
-
100.0
%
RW
No
-
Yes
Set the motor’s speed/torque curve data. The torque which can be output at the
maximum speed is input in percentage based on the maximum torque.
