P Series User Guide 66
NOTE) When using PC as host controller, USB to RS-422 communication convertor is
required.
4.2.1 Terminal Configuration
Item Specifications
Communication Standard
ANSI/TIA/EIA-422 Standard
Communication Protocol
MODBUS-RTU
Connector
RJ45 x 2
Data
Type
Data bit
8bit
Stop bit
1bit
Parity
None
Synchronism
Asynchronous method
Transmission Speed
9600 /19200/38400/57600 [bps]
Speed can be selected at communication speed setting
[0x3002]
Transmission Distance
Up to 200 [m]
Power Consumption
Under 100[㎃]

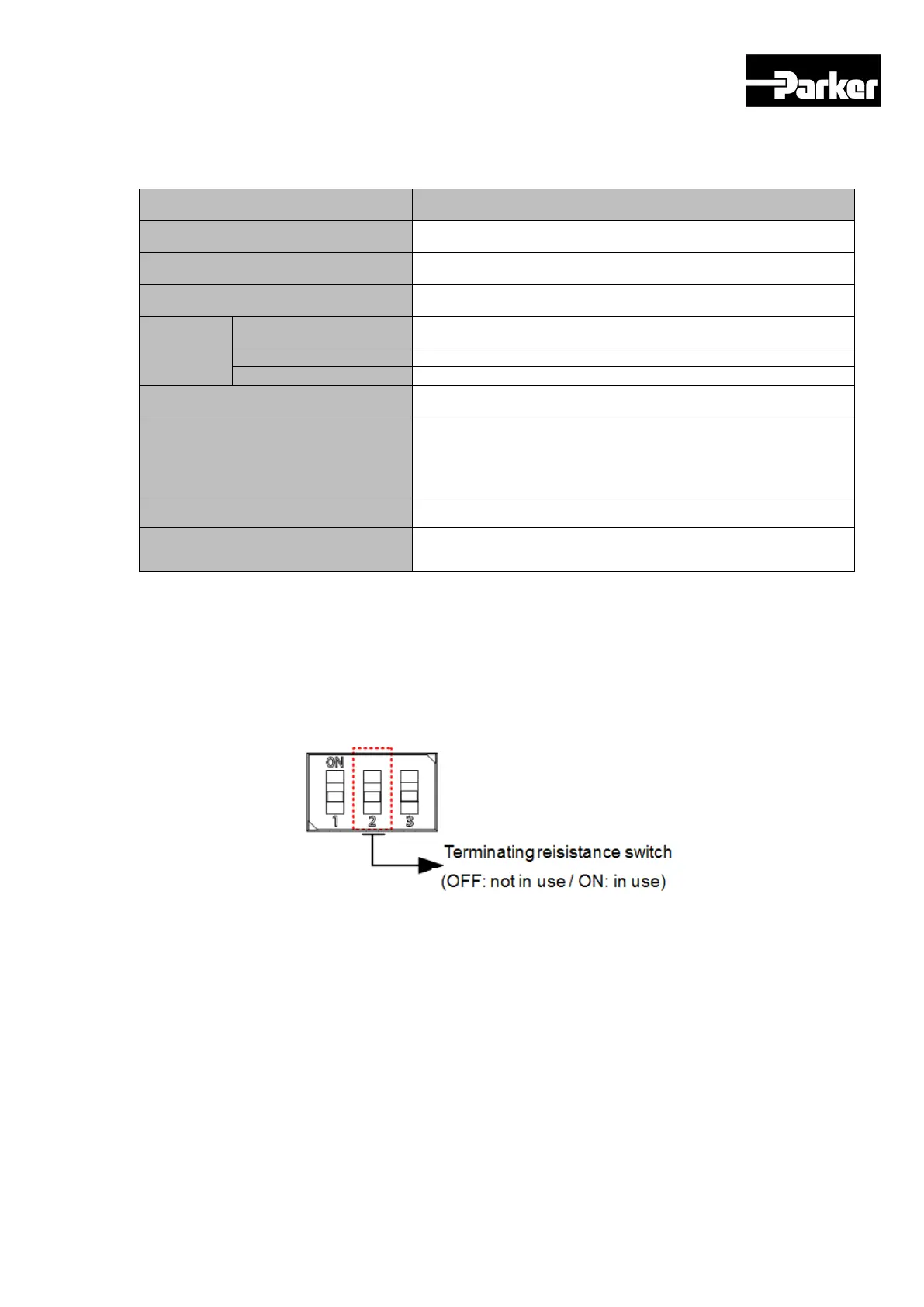

Table 20. RS-422 Terminal Specification
4.2.2 Establishing Communication
The terminating resistance used for RS-422 communication is configured within this
drive.
The terminating resistance inside the drive is 120Ω. To use the terminating resistance,
turn on the switch as shown in the figure below.
