P Series User Guide 62

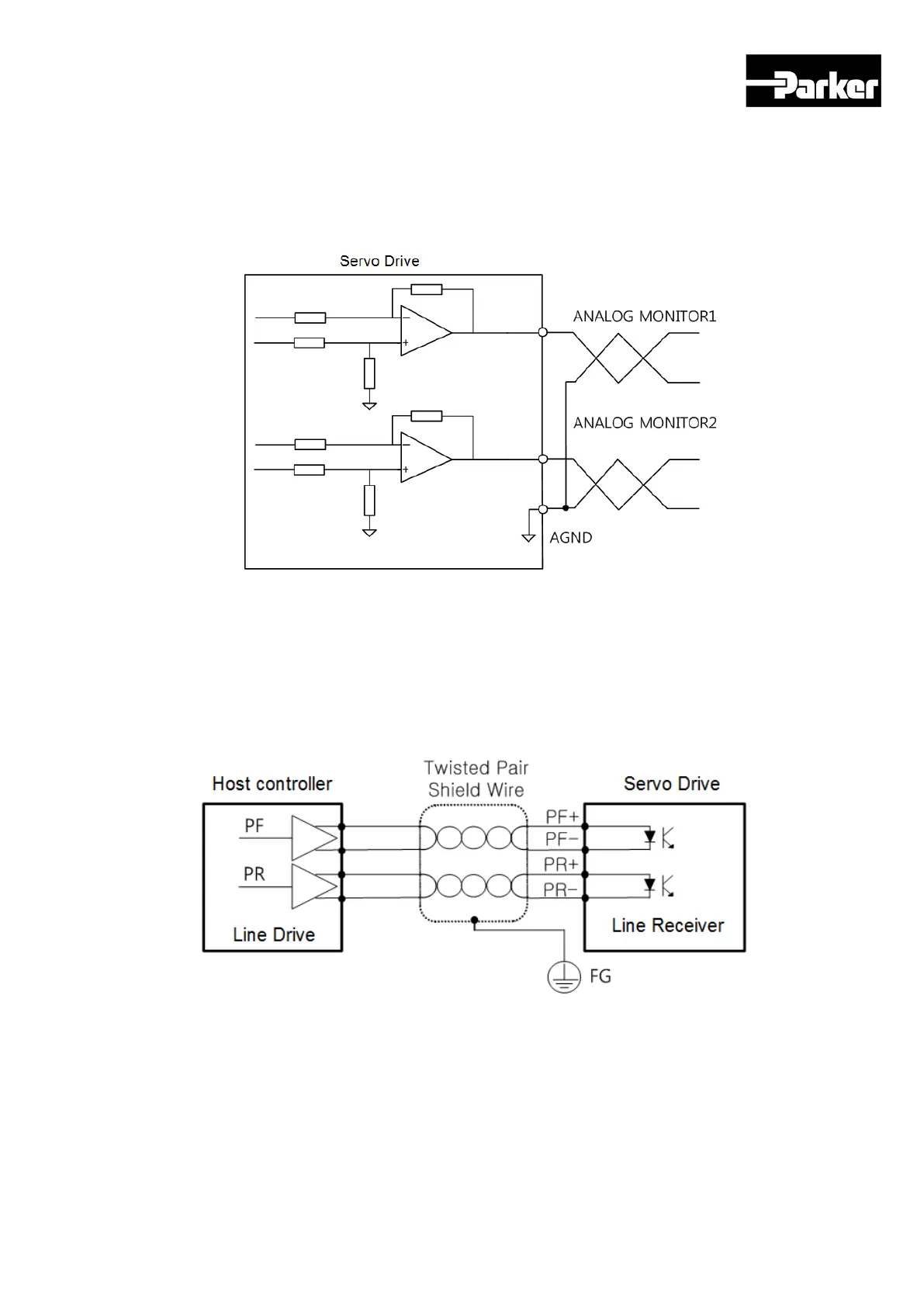

 Example of Analog Output Signal Wiring
Please see “ 5.8 Analog Monitor “ for setting and scale adjustment of monitoring
signals. The window of analog output signal is -10V ~ 10V.
The resolution of analog output signals is 12bit.
The permissible maximum load current is 2.5[mA] or below.
The stabilization time is 15[us].
Figure 23. Example of Analog Output Signal Wiring
3.11.4 Pulse Heat Signal
 Line Drive (5[V]) Pulse Input
Figure 24. Example of Pulse Heat Signal Wiring
