32

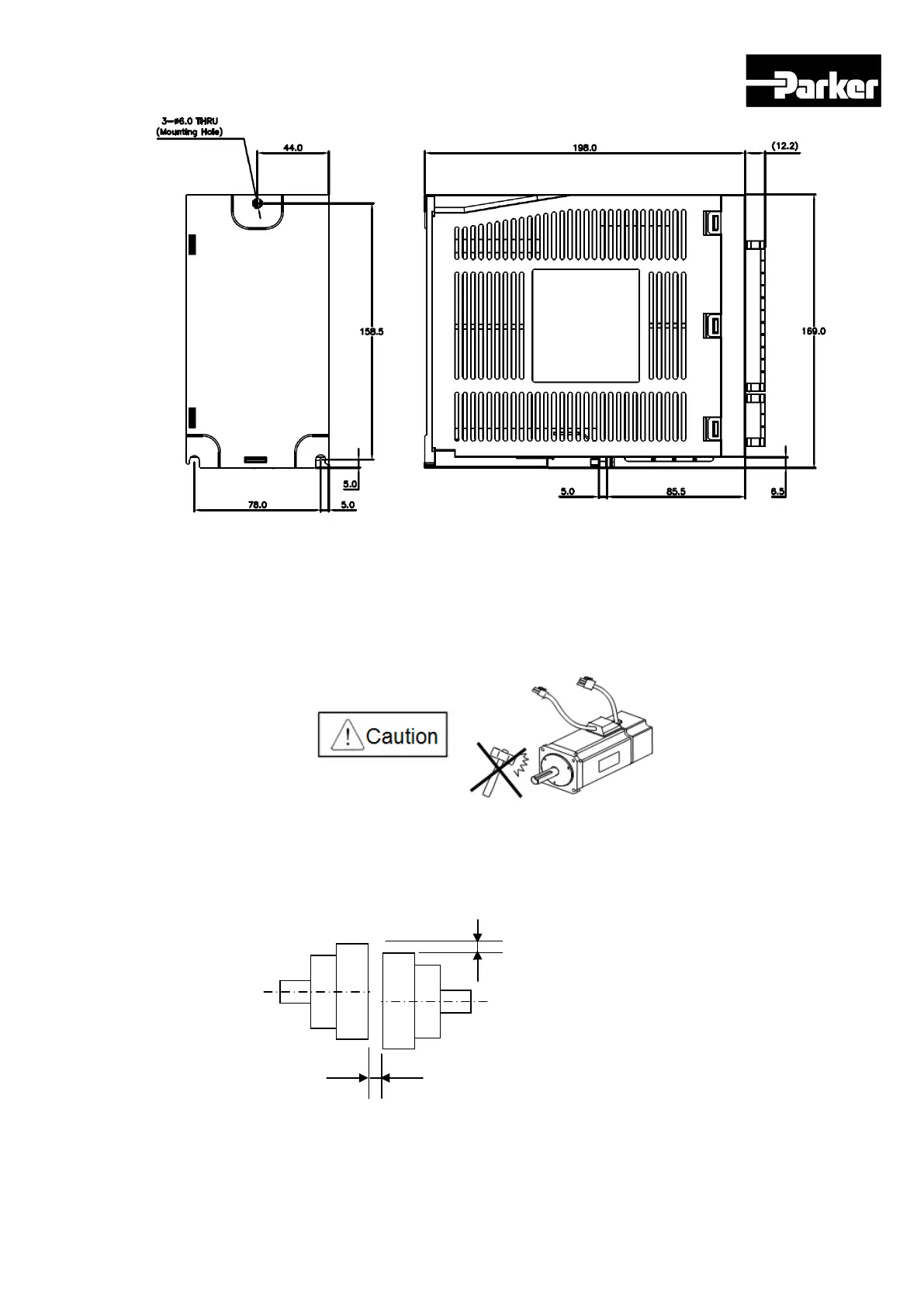

Figure 14
.
PD
-
3
5P Mounti
ng Inf
ormation
2.4.
3
Preventing Excessive I
mpact
Excessive impact on the motor during installation
or accidental fall may destroy the
encoder.
2.4.
4
Combining with Lo
ad Device
Combining
wi
t
h
Coupling: inst
all coupling by
matching the motor shaft wi
th the load shaft
within the permissible window
as below.
Load
Shaft
Motor
Shaft
0.03[mm
] or belo
w
(peak
to peak
)
0.03[mm
] or belo
w
(peak
to peak
)
