Parker P Series

Parker Hannifin
P Series User Guide 169
 Trigger by Index(Z) pulse
 Related Objects
Index
Sub
Index
Name
Variable
Format
Accessibility
PDO
Allocation
Unit
0x60B8 - Touch Probe Function UINT RW Yes -
0x60B9 - Touch Probe Status UINT RO Yes -
0x60BA -
Touch Probe 1 Positive Edge
Position Value
DINT RO Yes UU
0x60BB -
Touch Probe 1 Negative Edge
Position Value
DINT RO Yes UU
0x60BC -
Touch Probe 2 Positive Edge
Position Value
DINT RO Yes UU
0x60BD -
Touch Probe 2Negative Edge
Position Value
DINT RO Yes UU
Table 87. Touch Probe Function Related Objects

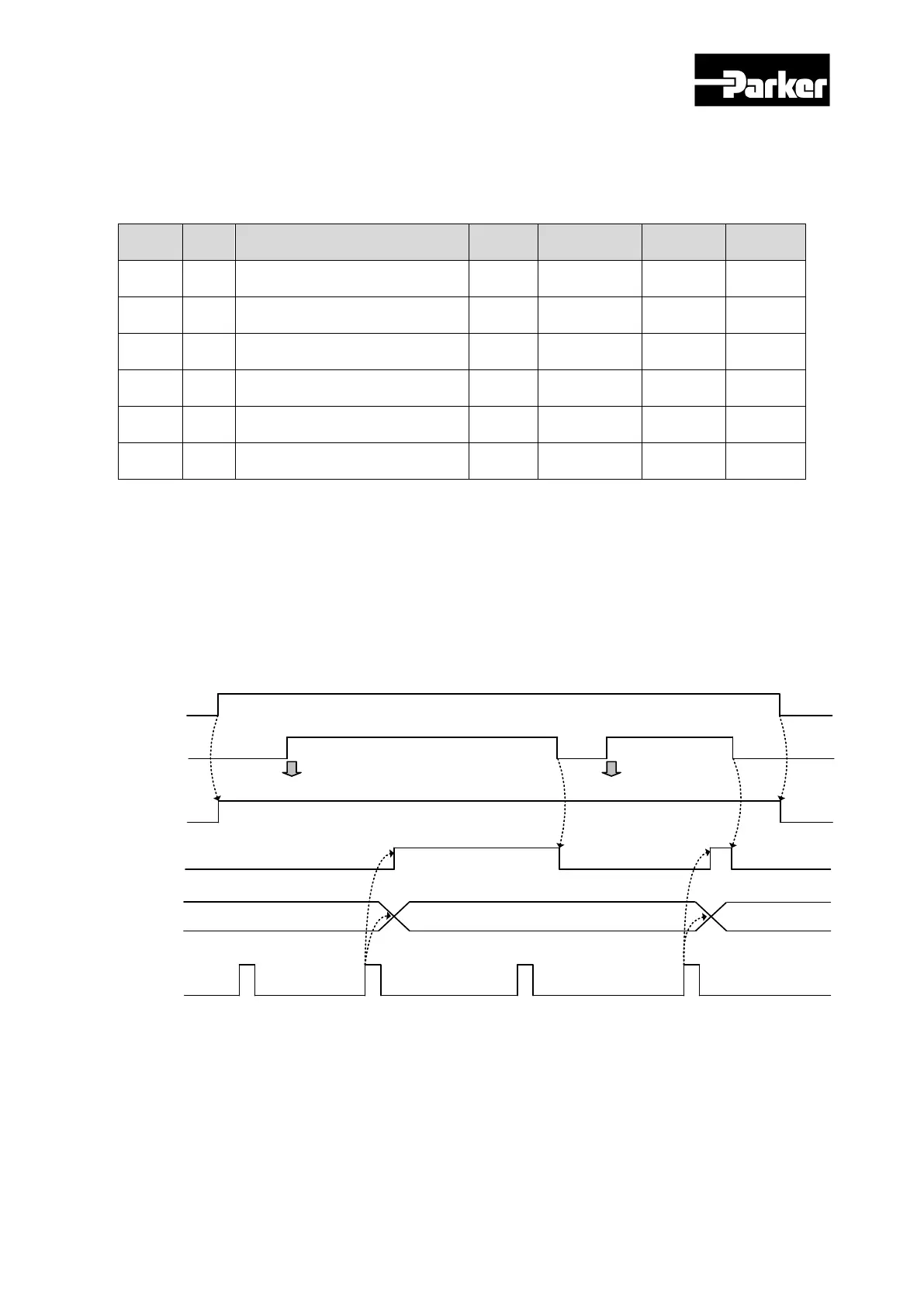

 Touch Probe Timing Diagram
Single Trigger Mode (0x60B8.1=0, 0x60B8.9=0):
In command to reset Bit 1, 2,9,10 of the touch probe status (0x60B9) at the single trigger
mode, set the relevant bits (4, 5, 12, 13) of touch probe function (0x60B8) to 0.
0x60B8.0
(0
x60B8.8)
0x60B8.4
(0x60B8.12)
0x60B9.0
(0x60B9.8)
Probe input
0x60B9.1
(0x60B9.9)
0x60BA
(0x60BC)
Position 1 Latched
Position 3 Latched
Latch start
Latch start
1
2
3
Continuous Trigger Mode (0x60B8.1=1, 0x60B8.9=1):
At continuous trigger mode, Bits 6, 7, 14, 15 of touch probe status (0x60B9) toggles between 0
and 1 every time the relevant input/edge is input.
