3.6.2 External Resistor Setting
When using an external regeneration brake under consideration of the operation
environment, you should set the brake in the following order.
A. External regeneration brake wiring
- Connect the external regeneration brake to the B, B+ terminal.
- Remove shorts from B, BI terminals (default short at the time of release from
the factory, 1kW or less)
외
부
회
생
저
항
L1
L2
L3
N
PO
PI
B+
B
BI
C1
C2
BI B+
B
외부
회생저항

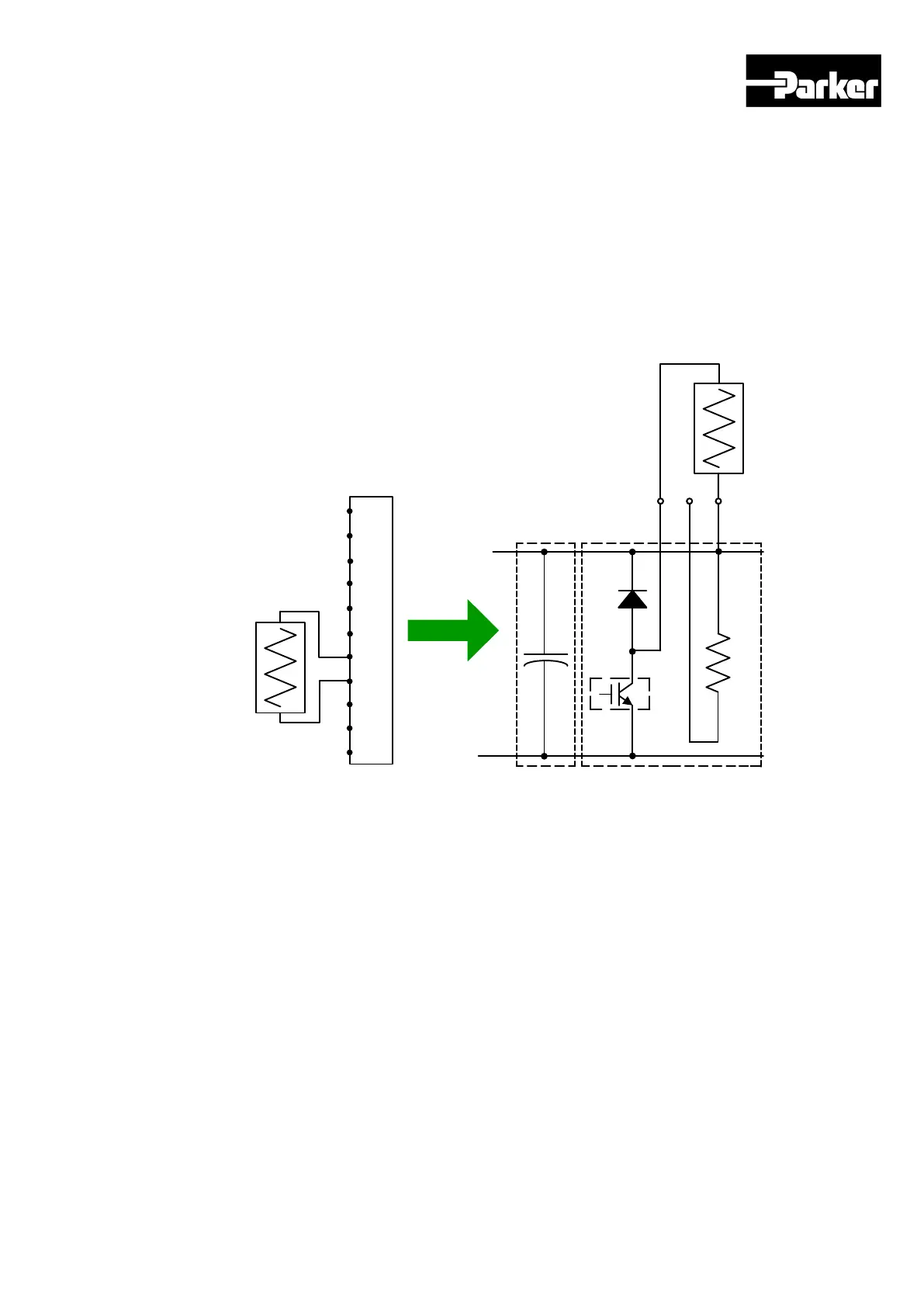

외부 회생 저항 사용 시 배선 방법
B. Regeneration brake setting (0x2009)
- Select the external regeneration brake (0x2009=1)
- Select this when connecting a regeneration brake with power larger than the
internal regeneration brake
C. Regeneration brake value setting (0x200B)
- Set the resistance value of the regeneration brake regeneration brake to
[Ω]Unit
- The value should be set if the regeneration brake setting (0x2009) is 1.
- Default value: 0
D. Regeneration brake power setting (0x200C)
External regeneration
brake resistor
exte
rnal regeneration
brake resistor
Wiring for external regeneration brake resistor
