P Series User Guide 30
2.3 Weight
PD-04 PD-10 PD-35
Weight
1.0kg
Included heat-sink
1.5kg
Included heat-sink
2.5kg
Included heat-sink
Table 10. PD Drive Weight
2.4 Mounting Guidelines
The P series drive is a vented product. To prevent material spilling into the drive, mount it
under an overhang or in a suitable enclosure.
2.4.1 Cable Routing
Route high power cables (motor and mains) at right angles to low power cables
(communications and inputs/outputs). Never route high and low power cables parallel to
each other.

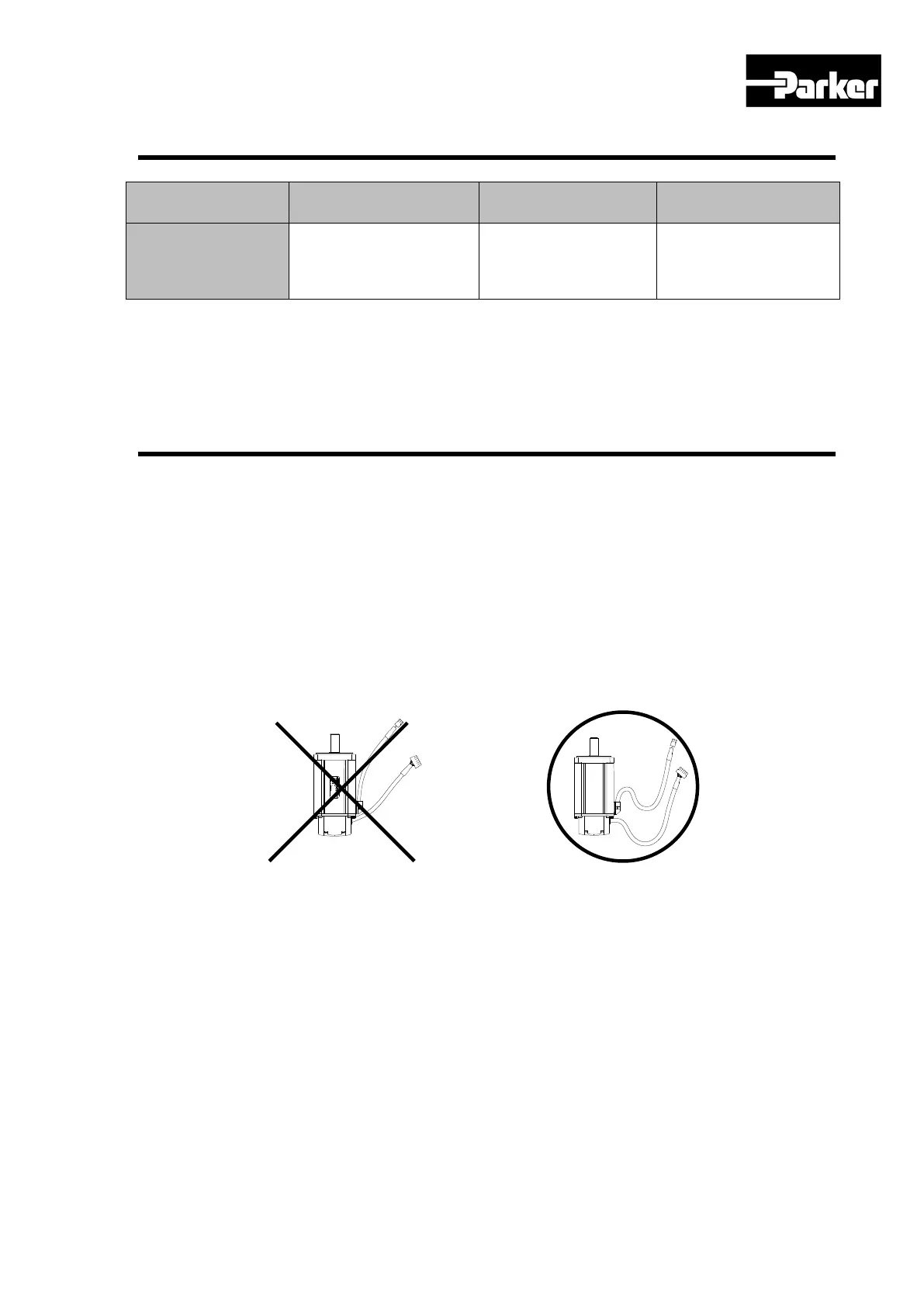

When installing the product vertically, please make sure no oil or water flows into the
connection unit.
Please do not stress or damage the cable. When moving the motor, please use movable
cable and make sure the cable does not wiggles.
2.4.2 Panel Mounting
Please attach the cooling fan to the control panel, so that the temperature does not exceed
the workable temperature. Also, the proper mounting clearance is required to maintain
workable temperature while motor and drive are working.
Please refer to each drive mounting informations as below.
