5.7 Vibration Control
The vibration control function has the following features.
 Provides 4-layer notch filter
- Frequency, width, depth setting
- Automatic setting through real-time FFT
- 50[Hz] ≤setting range≤ 5000[Hz]
 Provides 2-layer vibration inhibition filter, for vibration inhibition of the
load
- Measures the vibration frequency of the load
- 1.0[Hz] ≤setting range≤ 100.0[Hz]

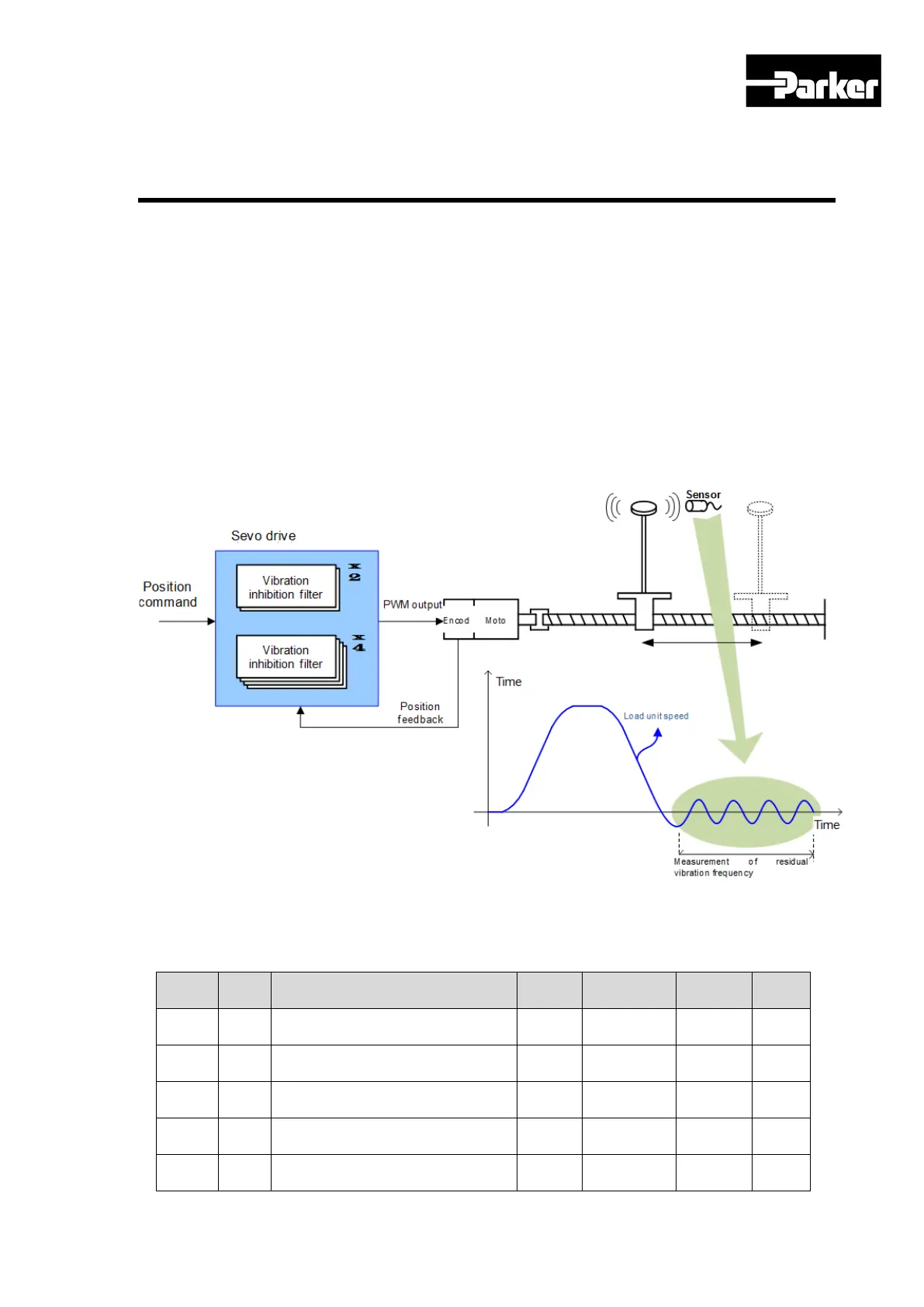

Figure 33. Vibration Control
5.7.1 Related Object
Index
Sub
Index
Name
Variable
Format
Accessibility
PDO
Allocation
Unit
0x2515 -
(Vibration Suppression Filter
Configuration)
UINT RW No -
0x2516 -
(Vibration Suppression Filter 1
Frequency)
UINT RW No 0.1[Hz]
0x2517 -
(Vibration Suppression Filter 1
Damping)
UINT RW No -
0x2518 -
(Vibration Suppression Filter 2
Frequency)
UINT RW No 0.1[Hz]
0x2519 -
(Vibration Suppression Filter 2
Damping)
UINT RW No -
