Tools
Jack
Tool bag
1. Fold down the seatback of the front
passenger’s seat forward and slide the
seat forward.
2. Learn the storage location of tool bag and
jack.
NOTE

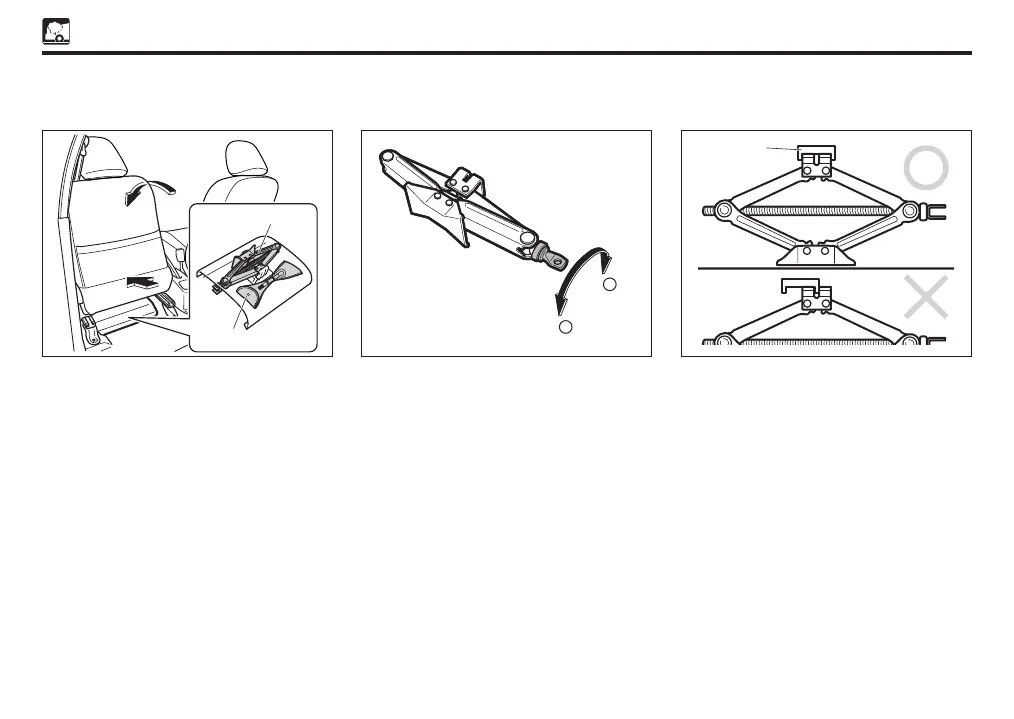

Secure the tool bag and jack as shown in
the illustration.
Expand
(to store)
Contract
(to remove)
2
1
The jack can be installed / removed by turning
the worm shaft as shown in the illustration
above, using the jack handle provided in
the tool bag.
Removal
Remove the jack from the jack bracket by
turning in the direction 1 in the illustration
above.
Jack
Bracket
Installation
1. Place the jack, as shown in the illustration
above. Make sure the jack is fixed to the
hooks.
2. Turn in the direction 2 in the illustration
above, until the jack arm sections are
brought into contact with the jack bracket.
3. Secure the jack to the bracket firmly by
making another 1/4 turn in the direction
2 in the illustration above, using the jack
handle.
