14–13
(Type 2)
2
1
1NR-VE Engine
4
3
1NR-VE Engine
1. Unscrew bolt 1 and 2 shown in the
illustration.
8. Install the spark plug securely.
Tightening torque: 22.0 4.4 N.m
(224 45 kgf.cm)
CAUTION
Do not overtighten the plug. Otherwise it
may cause engine damage.
9. Install the ignition coil.
Tightening torque: 8.0 2.4 N.m
(82 24 kgf.cm)
10. Reconnect the spark plug wire in correct
order.

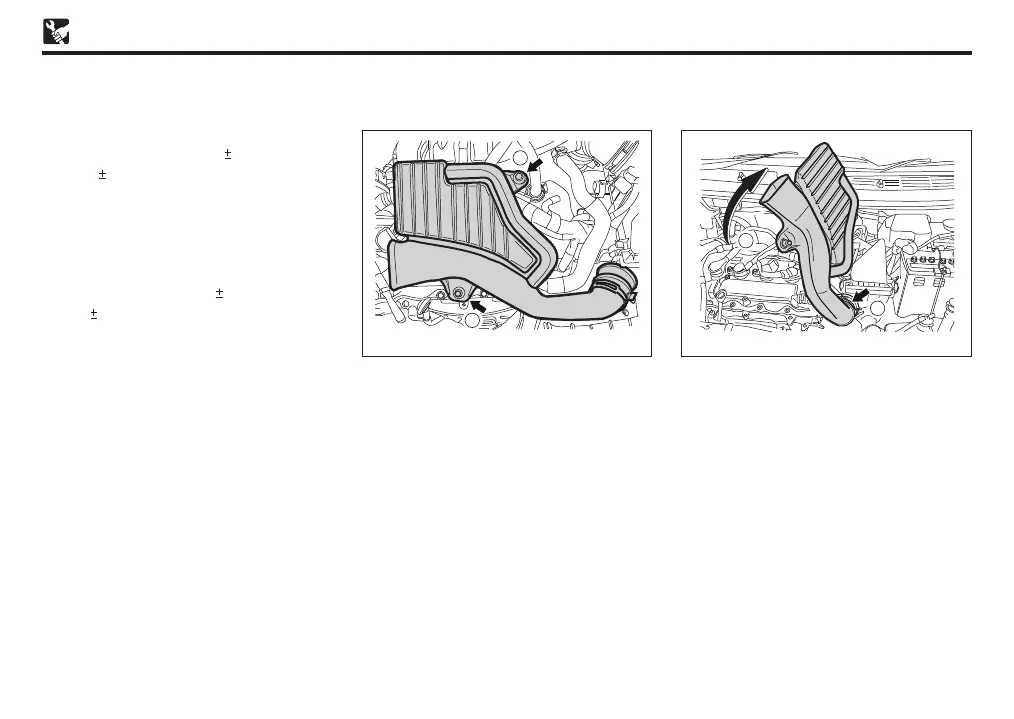

2. Lift up the air cleaner cover as shown in
the illustration above.
3. Loosen the clip 3 and pull the air cleaner
cover in direction 4 from the air cleaner
case.
