14–19
Fuse check and replacement
Claw

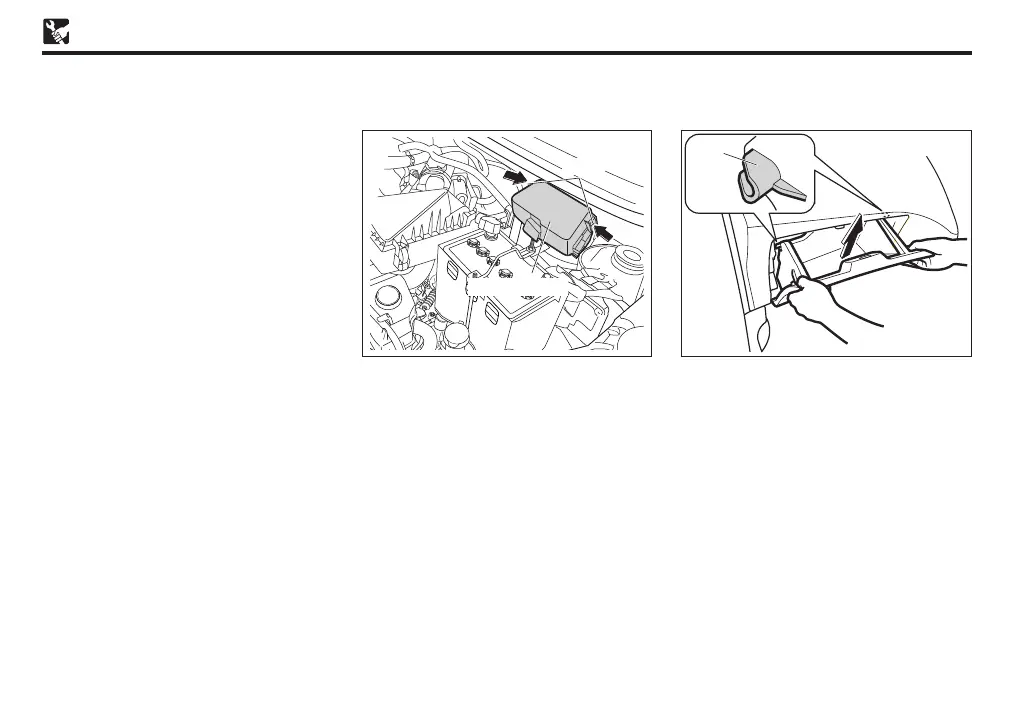

Relay & fuse box
To remove the cover of the relay & fuse box
1. Set the ignition switch to the "LOCK" or
"OFF" position.
2. Remove the cover of the relay & fuse box
by pressing the claw.
To remove glove box
1. Set the ignition switch to the "LOCK" or
"OFF" position. Open the glove box.
2. Lift the glove box in the arrow-headed
direction and unlock the claw.
NOTE
Locate the cause and rectify the problem
before installing a new fuse. If you cannot,
have the system checked by an authorised
Perodua Service Centre.
Claw
$ (ABS 2)...30A
% EFI - Electronic fuel injection...15A
& (RR SOCKET) Rear socket... 15A
' IG MAIN - Ignition main... 25A
( (LUG_LP) - Luggage lamp... 5A
) BACK UP...15A
* FUEL PUMP...10A
+ Integration relay
* ( ) If equipped
