14–24
w WARNING
To reduce the risk of personal injury,
do not check the oil level unless
the ignition switch has been turned
completely “LOCK” and the engine
has cooled sufficiently.
Park the vehicle on a level surface and apply
the parking brake. Turn the ignition switch
to “LOCK”.

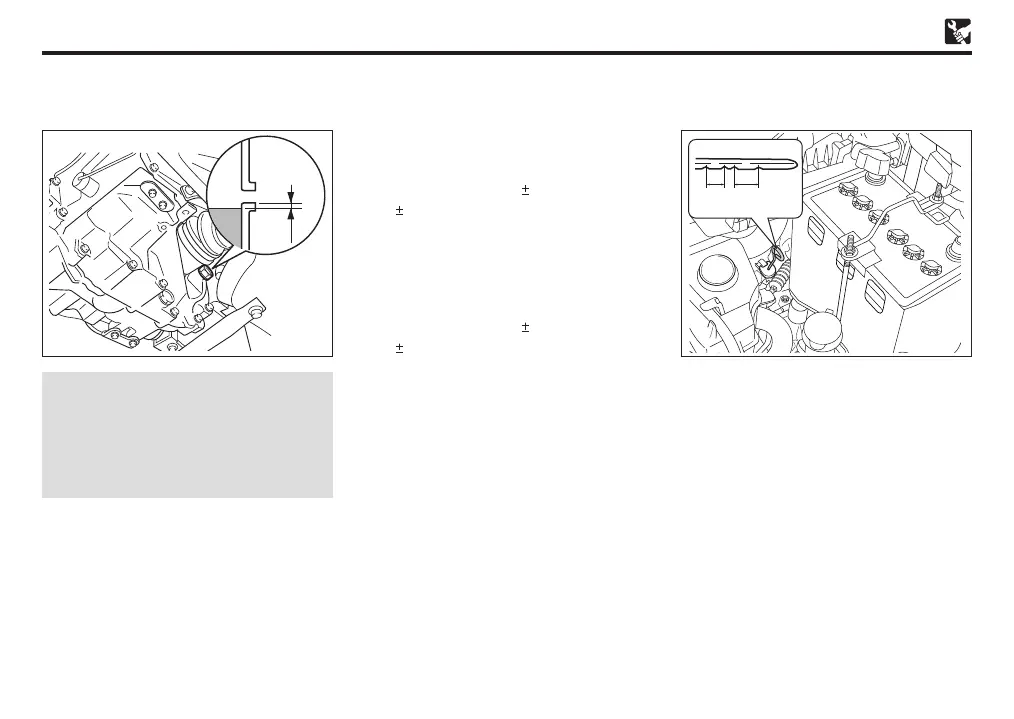

Remove the filler plug and check the
transmission oil level with your finger.
If the transmission oil level is less than 5 mm
(0.2 in.) below the bottom edge of the hole,
the oil level is satisfactory.
5 mm
(0.2 in.)
or less
Manual transmission oil level
check
If the oil level is satisfactory, reinstall the filler
plug with new gasket interposed and tighten
it securely.
Tightening torque: 39.2 9.8 N.m
(400 99 kgf.cm)
When the oil level is low, add the specified oil
until it starts to flow out the filler hole.
For recommanded manual transmission oil,
see section 17. Reinstall the filler plug with
new gasket interposed and tighten it securely.
Tightening torque: 39.2 9.8 N.m
(400 99 kgf.cm)
COLD
HOT
H C
Check the fluid level when the transmission
fluid temperature is 70 - 90
0
C.
If the vehicle has been driven for about 15
minutes at a speed of 60 km/h or for about
30 minutes at a speed of 40 km/h, the fluid
temperature becomes about 70 - 90
0
C.
1. Park the vehicle on a level surface and
apply the parking brake.
2. Run the engine at idling speed and firmly
depress the brake pedal. Move the shift
lever from P to 2 smoothly and return
to P.
3. Pull the dipstick out and wipe it clean.
Insert it into the original position.
Automatic transmission fluid level
check
